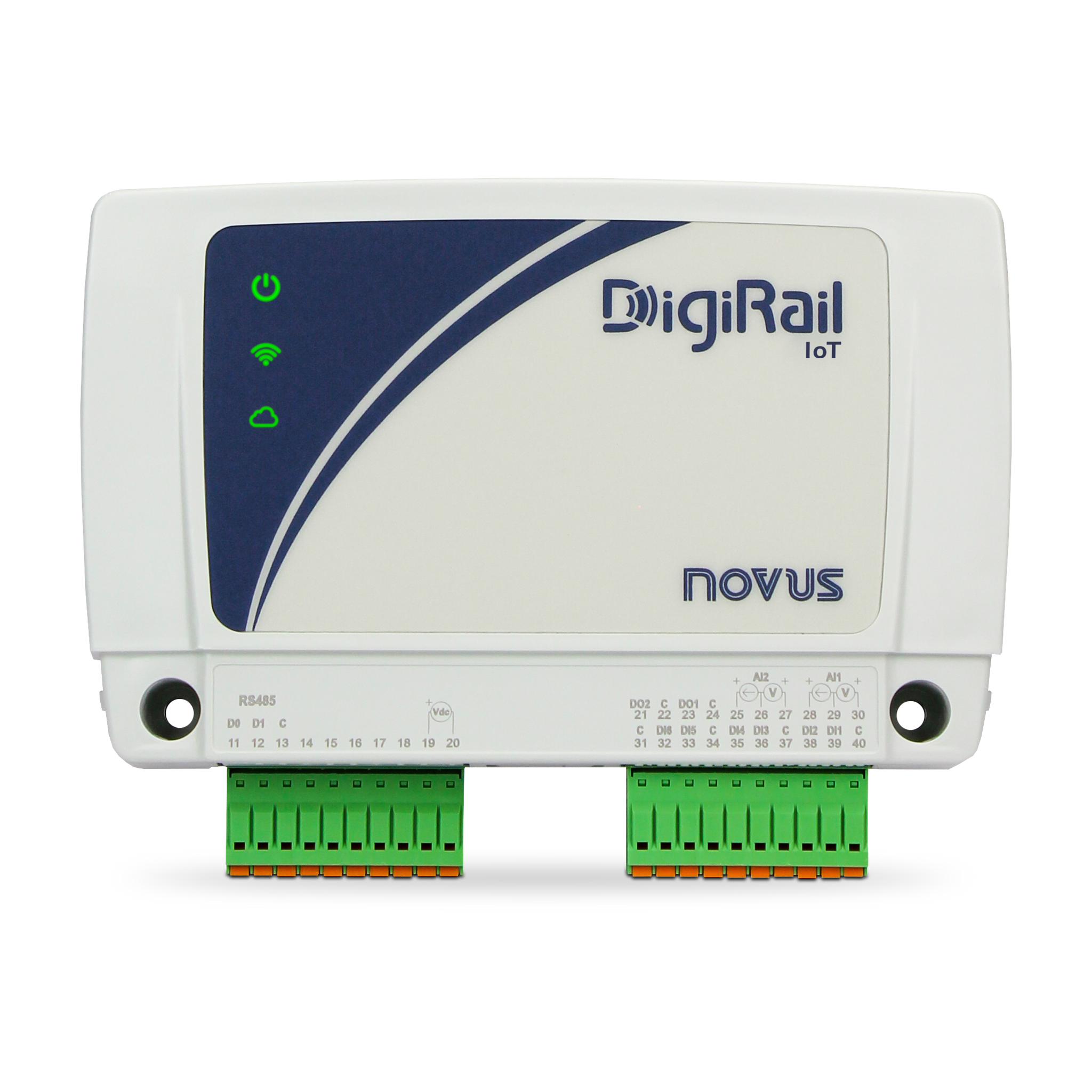

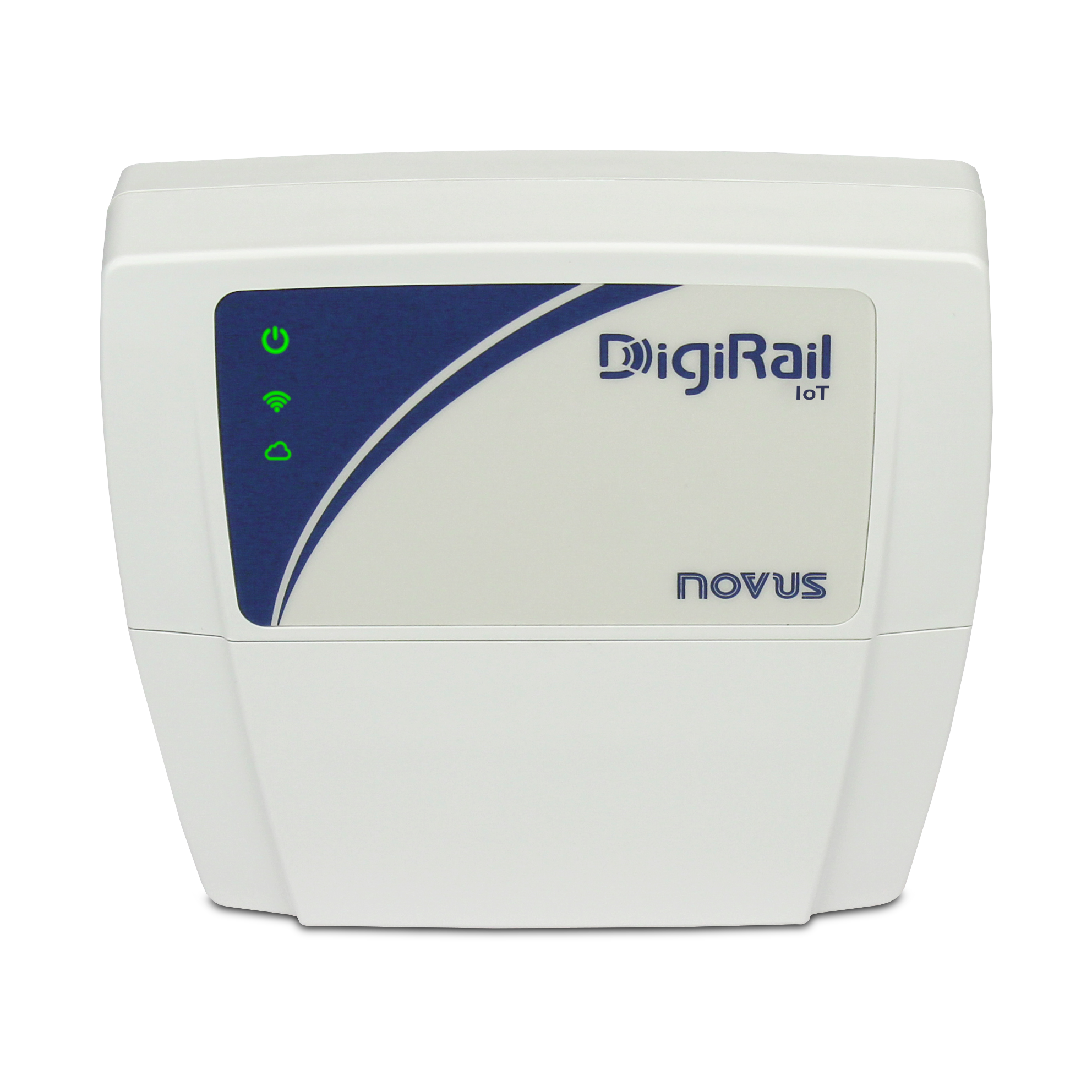

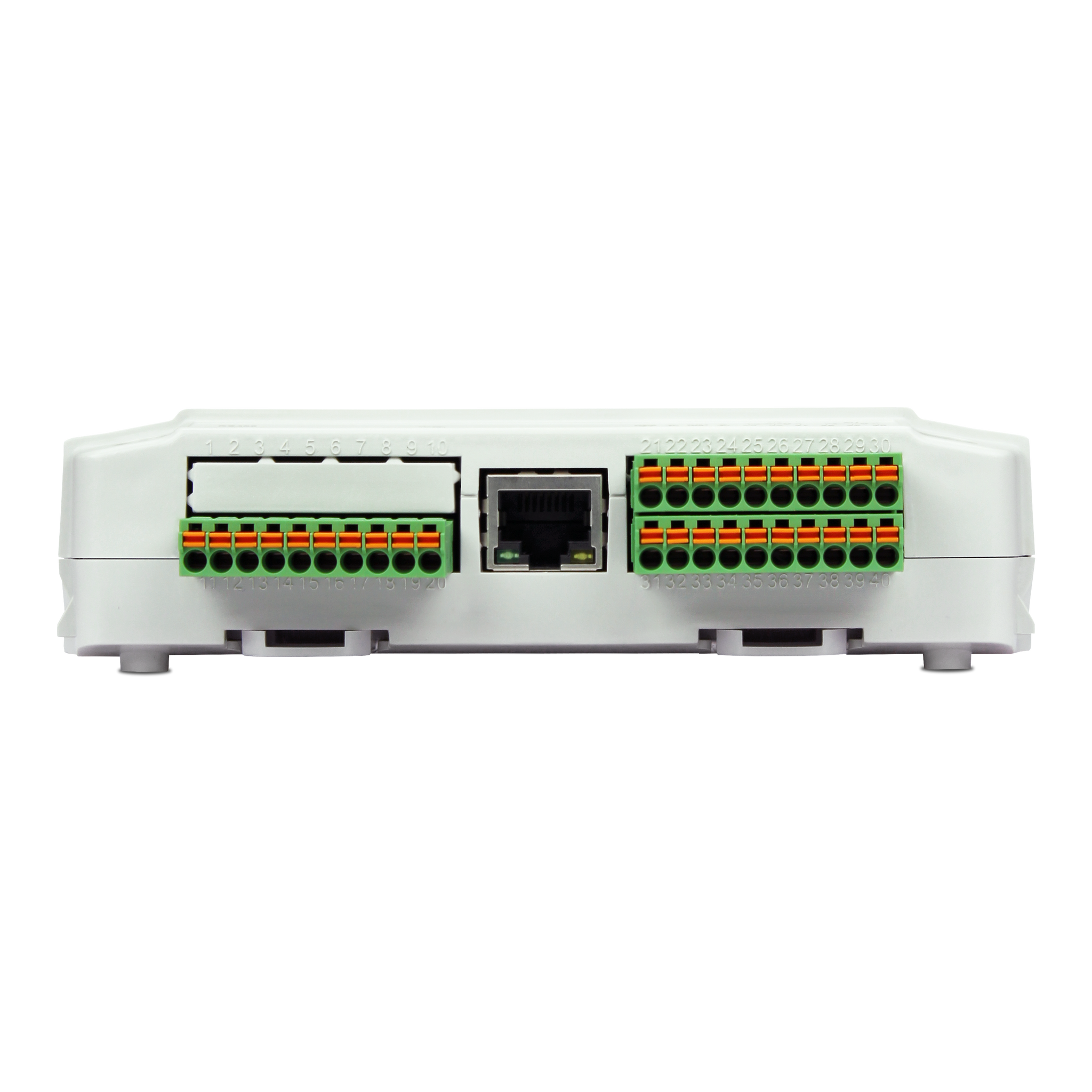

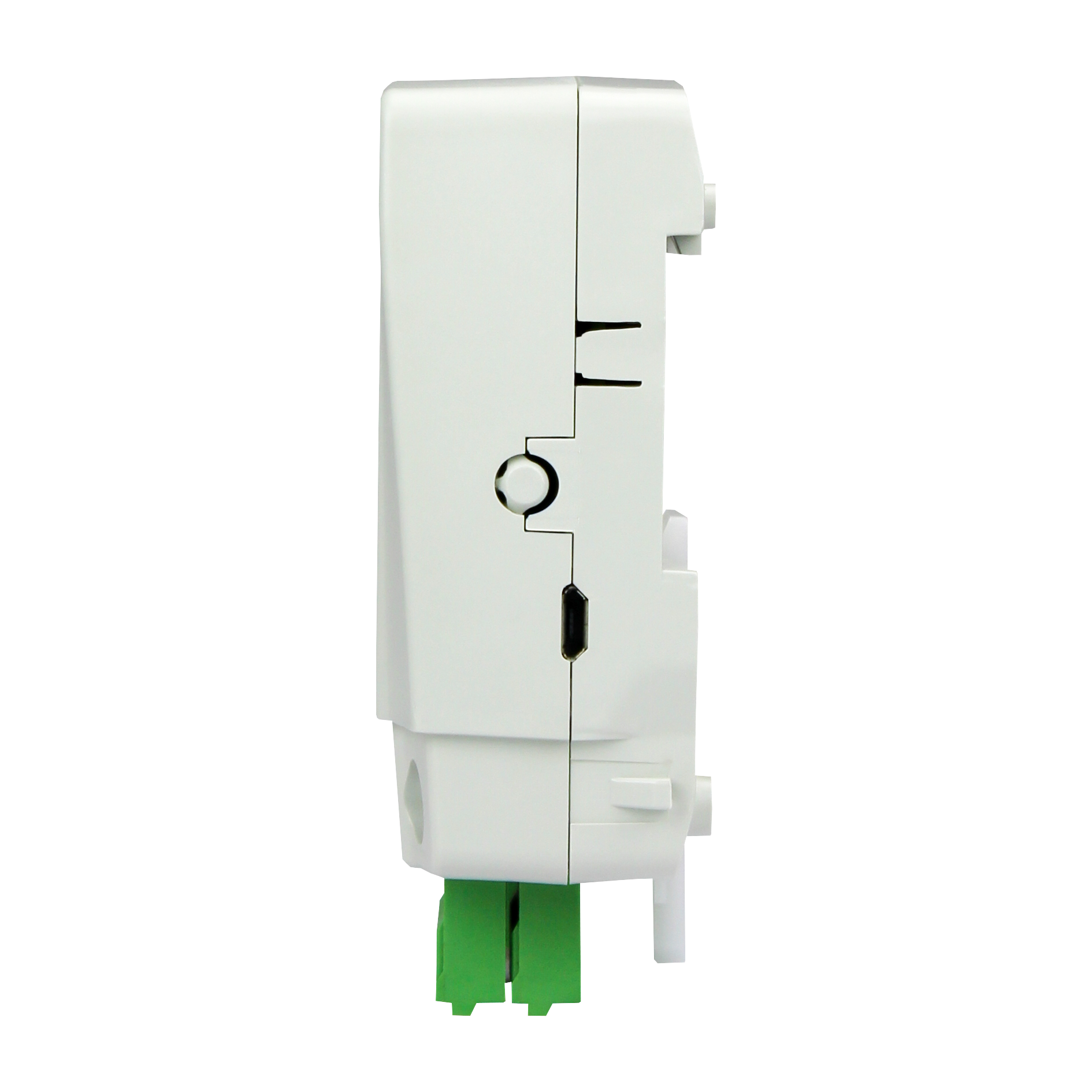

DigiRail IoT Gateway With WiFi
This economical module solves the problem of data collection in local or remote applications. DigiRail IoT helps to assimilate sensors and RS485 devices using existing network infrastructure to provide data acquisition and logging. Depending on the model selected this can be achieved using WiFi or LAN networks.
- Hardwired remote I/O to MQTT or Modbus
- Passing data to OEE, DCS or SCADA
- Open MQTT broker compatibility
- Gateway function (Modbus TCP to RTU)
- Gateway function (Modbus RTU to MQTT)
- RS485 Master (8 channels/registers)
Direct connection of sensors and analogue signals. The module contains 6 digital inputs which can be individually configured to monitor state (On/Off) or to act as counters. There are also two analogue inputs and two digital outputs.
Initial configuration in Novus NXperience is an extremely quick process. With a small amount of interface wiring the module can begin gathering data in minutes. This can be passed via MQTT to Cloud services. It is also possible to send data to PLC/SCADA systems using the Modbus TCP protocol.
Modbus TCP to RTU Pass Through Gateway Function
This model can be used as a transparent gateway with no mapping of registers required. It is suitable for reading/writing registers on RTU Slaves wired to the RS485 terminals. Simply communicate via Modbus TCP and the module will automatically translate commands.
The Gateway Mode is a simple method allowing IT equipment or PLCs with Ethernet ports to communicate with devices such as temperature controllers, instruments and meters. This removes the restriction of physical mismatch between Ethernet/LAN cabling and RS485. It also compensates for the differences in the protocol message structure.
Modbus RS485 Master Mode
When configured as an RS485 Master the IoT Gateway can receive up to 8 registers via the built in RS485 terminals. This helpful feature allows the collection of data from field devices such as metering equipment equipped with RS485 terminals.
The 8 registers can be received from a single device or multiple devices with different addresses. Unlike the basic gateway mode, the register values are held in the devices internal memory.
Download DigiRail IoT Manual
Novus DigiRail IoT Ethernet Datasheet Download
Novus DigiRail IoT Ethernet Manual Download
Specification
• Inputs: 6 digital, 2 analog
• Outputs: 2 digital
• Analog input types: 0-5 V, 0-10 V, 0-20 mA and 4-20 mA
• Digital input types: NPN, PNP and dry contact
• Analog input impedance: mA: 15 Ω + 1.5 V | V: 1 MΩ
• Digital input characteristics: Logic level "0": < 0.5 V | Logic level "1": > 3 V
• Maximum voltage: 30 V
• Input impedance: 270 kΩ
• Input current: @ 30 VDC (typical) 0.15 mA
• Maximum frequency (square wave): Dry contact: 10 Hz | PNP: 3 kHz | NPN: 3 kHz
• Minimum pulse duration: Dry contact: 50 ms | PNP: 150 µs | NPN: 150 µs
• Digital output characteristics: 2 NPN-type digital outputs
• Maximum current switchable by the output: 700 mA
• Analog inputs: 15 bits (32,000 levels)
• Communication interface: USB | Ethernet: 10/100 Mb/s, IEEE standard 802.3u | Wi-Fi 802.11 b/g/n 2.4 GHz | RS485
• Software: NXperience
• Power supply: Voltage: 10 VDC to 30 VDC
• Wi-Fi model: Consumption: 70 mA @24V | Consumption: 160 mA @12V
• Ethernet model: Consumption: 50 mA @24V | Consumption: 120 mA @12V
• Operating conditions: Temperature: -20 to 60°C (-4 to 140°F) | Humidity: 5 to 95% RH, non-condensing
• Battery: CR2032 for internal clock retention
• Mounting: DIN rail or screw mounting
• Protection rating: IP20
• Enclosure: ABS+PC
