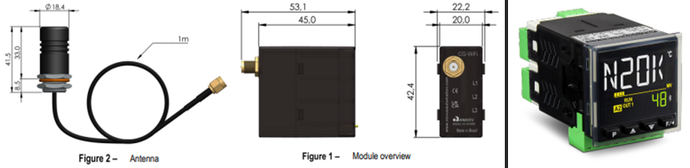

WiFi communication is available on the N20K48 range of process controllers. This panel mount antenna plugs into the CG-WiFi module to provide a strong signal, and comes complete with a 1M pre-terminated lead.
To communicate via WiFi, the following components are required:
Existing or new purchase — CPU:
N20K48 (100-240V) or N20K48 (12-24V)
Additional modules required:
N20K48 Docker Interface and the CG-WiFi ClickNGo Module
Technical Details
MPN: 8816060100
Type: 2.4GHz panel mount WiFi antenna, 1M pre-terminated lead
Frequently Asked Questions
Is this antenna enough to get WiFi working on its own?
No — you also need the N20K48 Docker Interface and CG-WiFi module fitted to your controller; this antenna connects to the WiFi module for signal.
How long is the antenna lead?
1M, pre-terminated and ready to connect.
Can I use this with an existing N20K48 controller?
Yes — as long as the Docker and CG-WiFi module are also fitted, this antenna works with any existing N20K48 CPU.
Industry Applications
- Wireless Retrofits — adds WiFi connectivity to an existing N20K48 install without rewiring.
- Panel-Mounted Installations — external antenna improves signal strength inside metal enclosures.
- Remote Monitoring — enables WiFi-based configuration and monitoring via QuickTune or Novus Cloud.
