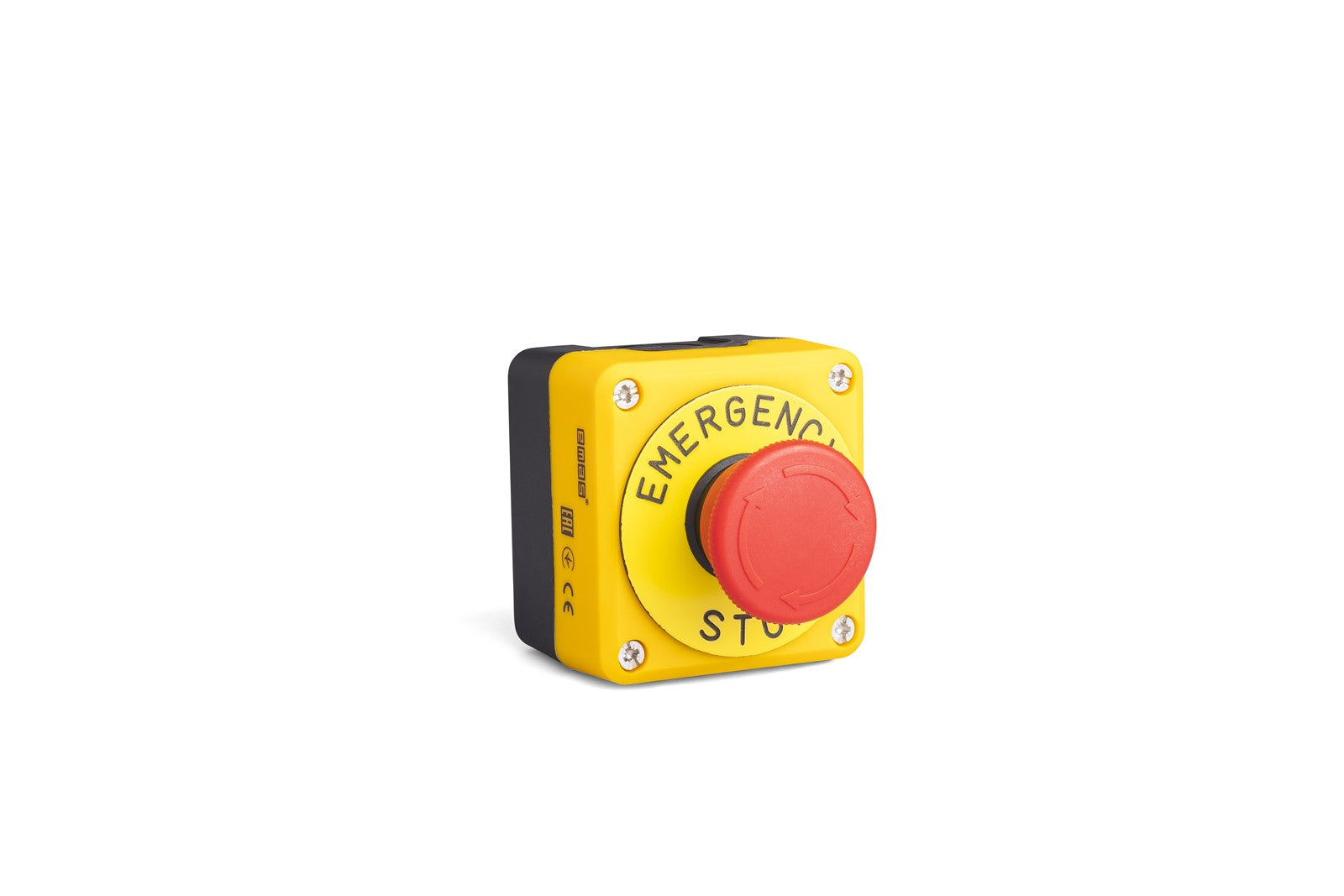

P Series Plastic 1 Hole BDE + C4BK (NC) + BET60P Yellow-Black Control Box
Surface mount plastic emergency stop box containing a turn to release button fitted with 1 x NC contact. Includes legend marked 'Emergency Stop'.
Plastic knockouts for M20, suitable for metal/plastic trunking and glands.
Fast installation and good environmental protection.
Product
Control Box
Color
Yellow-Black
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
P Series Plastic
Hole Qty
1 Hole
Ingredients
BDE + C4BK (NC) + BET60P
