Our customers have advised us there is demand for a quality, cost-effective solution to upgrade old kiln control systems. We created this bundle specifically for kiln and oven applications — perhaps the controller is outdated or unresponsive? We give you total peace of mind by replacing all major components within the temperature control system.
Compact and versatile PID controller for single loop applications. The N1030T (timer model) allows the process to run for an adjustable time period and switch off automatically — a single stage program, one setpoint and one heat/cool duration.
We also offer pre-programming and a wiring kit as optional extras.

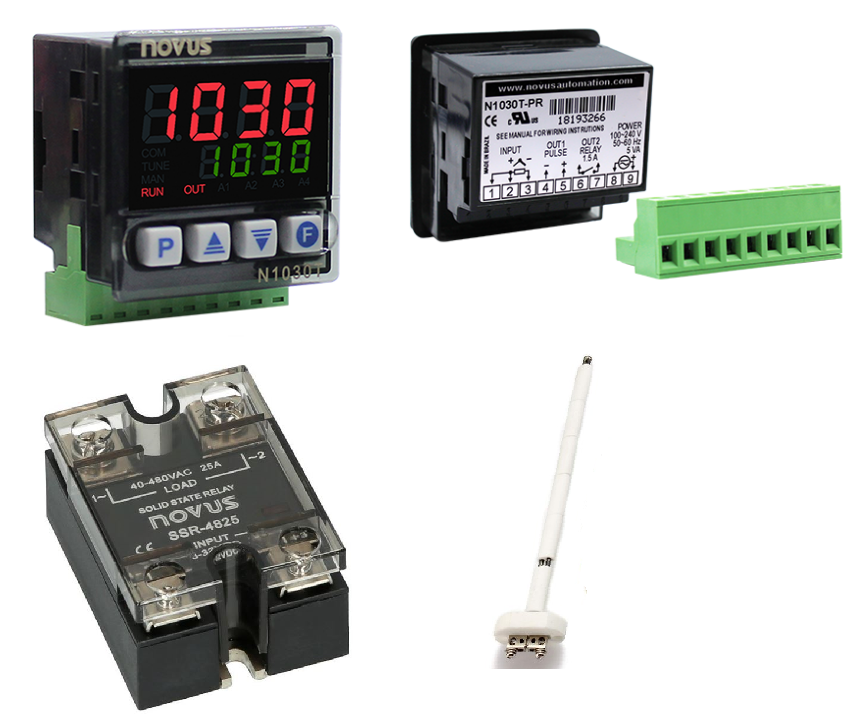

Basic Contents:
1 x Novus N1030T-PR Controller
1 x Novus 25A Solid State Relay
1 x UK Made Type K Ceramic Thermocouple (Lengths 50-200mm, Max 1300°C)
1 x K Type Sensor Extension Cable
Quick Guide / Manuals / Instructions
Total Value Over £110.00
✅ 3 year manufacturer warranty on the controller; 1 year on the included SSR and probe
Novus N1030T-PR Datasheet Download
Novus N1030T-PR Manual Download
Technical Details

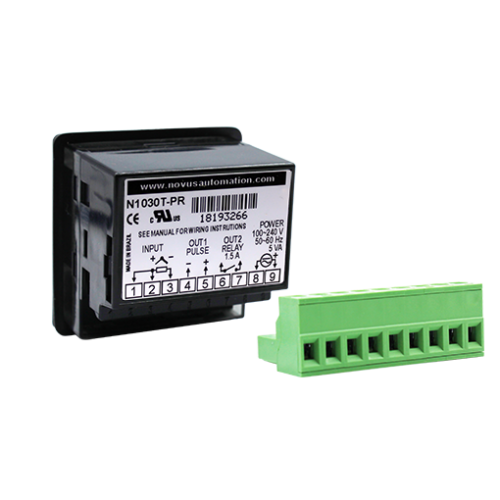

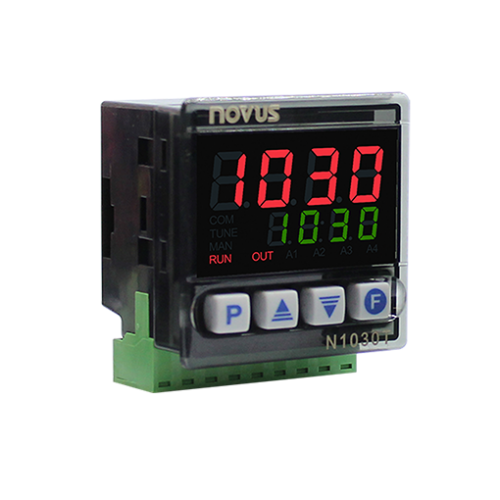

Controller: N1030T-PR, 1/16 DIN, single-stage timer, thermocouple J/K/T and Pt100 input, pulse + relay outputs
SSR: 25A, 40-480VAC load, 3-32VDC control

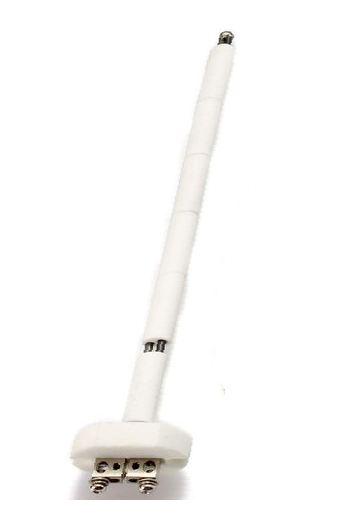

Probe: UK-made Type K ceramic thermocouple, 50-200mm lengths available, rated to 1300°C
Frequently Asked Questions
How long is the Ceramic Probe supplied?
We stock 50mm, 100mm and 200mm probes. The 100mm and 200mm probes are the most popular sizes for larger kilns and the 50mm suits benchtop applications — check the thickness of your fire brick/insulation and contact us if you're unsure. We'll confirm the length required before shipping.
What does the wiring kit contain?
We pre-wire 2M of cable with markers/idents. This can be trimmed down to suit but makes connection a simple process.
What is the pre-programming option?
We can supply the controller ready to use with your own parameters pre-installed. We recommend this where a number of different ramp and soak programs may be required — we'll contact you before shipping to discuss the required profile.
Can this be used with a Kiln Sitter?
Yes — it's possible to completely replace the Kiln Sitter control, or use it in conjunction with a cone to act as a backup high-temperature shut-off.
What's the difference between this and the Multi Stage Kiln Bundle?
The Multi Stage Kiln Bundle contains the N1050 controller, which allows multiple ramp & soak profiles to be stored and recalled. The N1030T here operates on a single manual setpoint and is only capable of running for one adjustable time period — for example heat to 500°C and hold for one hour, then turn off.
Industry Applications
- Kiln & Oven Control Upgrades — direct replacement for outdated or unresponsive kiln controllers.
- Ceramics & Pottery — high-temperature ceramic probe rated to 1300°C.
- Single-Stage Firing — one setpoint, one adjustable hold time, auto shut-off.
Need a custom bundle, or advice on the best products for your project? Please contact us and we will tailor a solution to your requirement.
