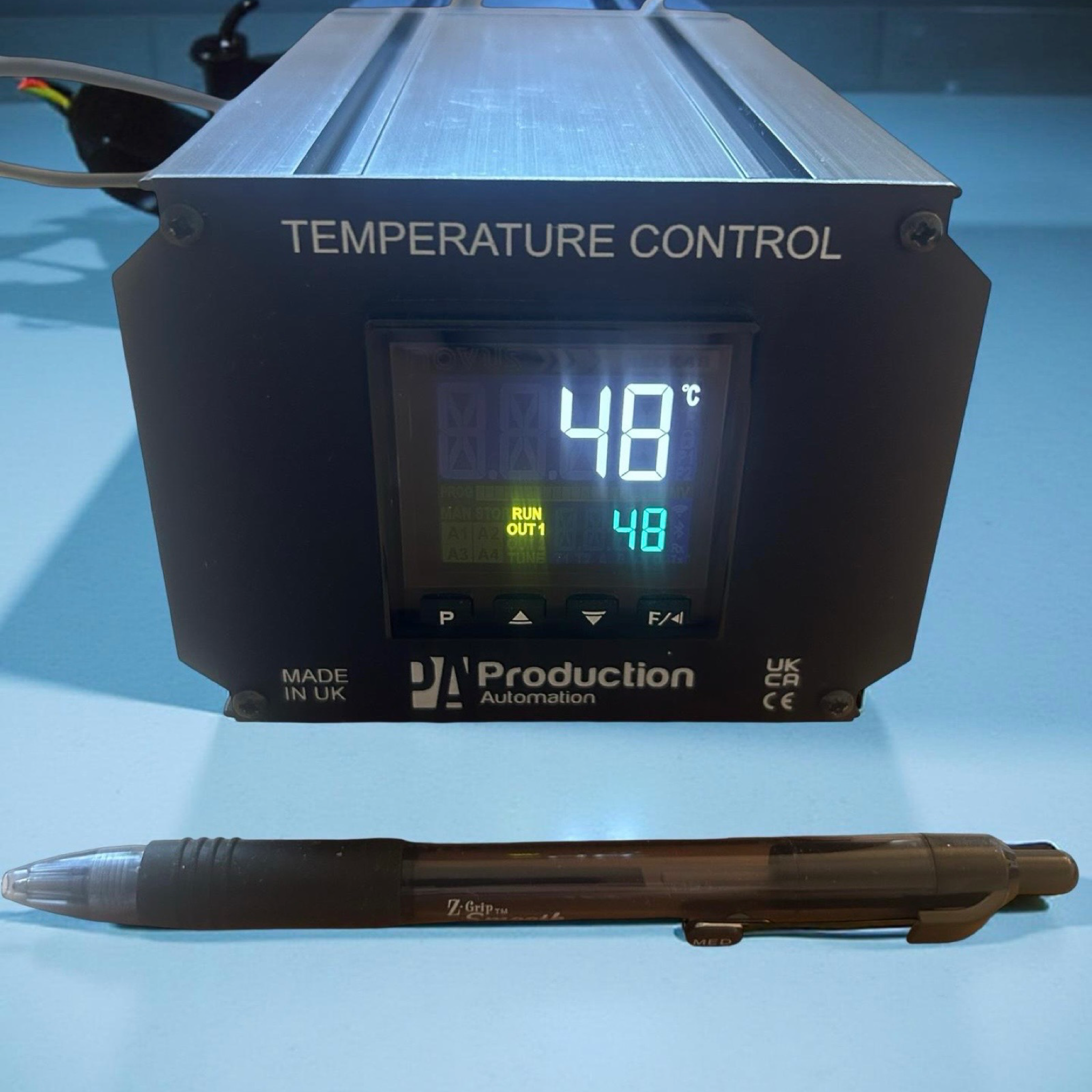

Benchtop Micro Temperature Control Unit 230V Single Phase (2.3KW)

Small Form Plug & Play Temperature Control Station

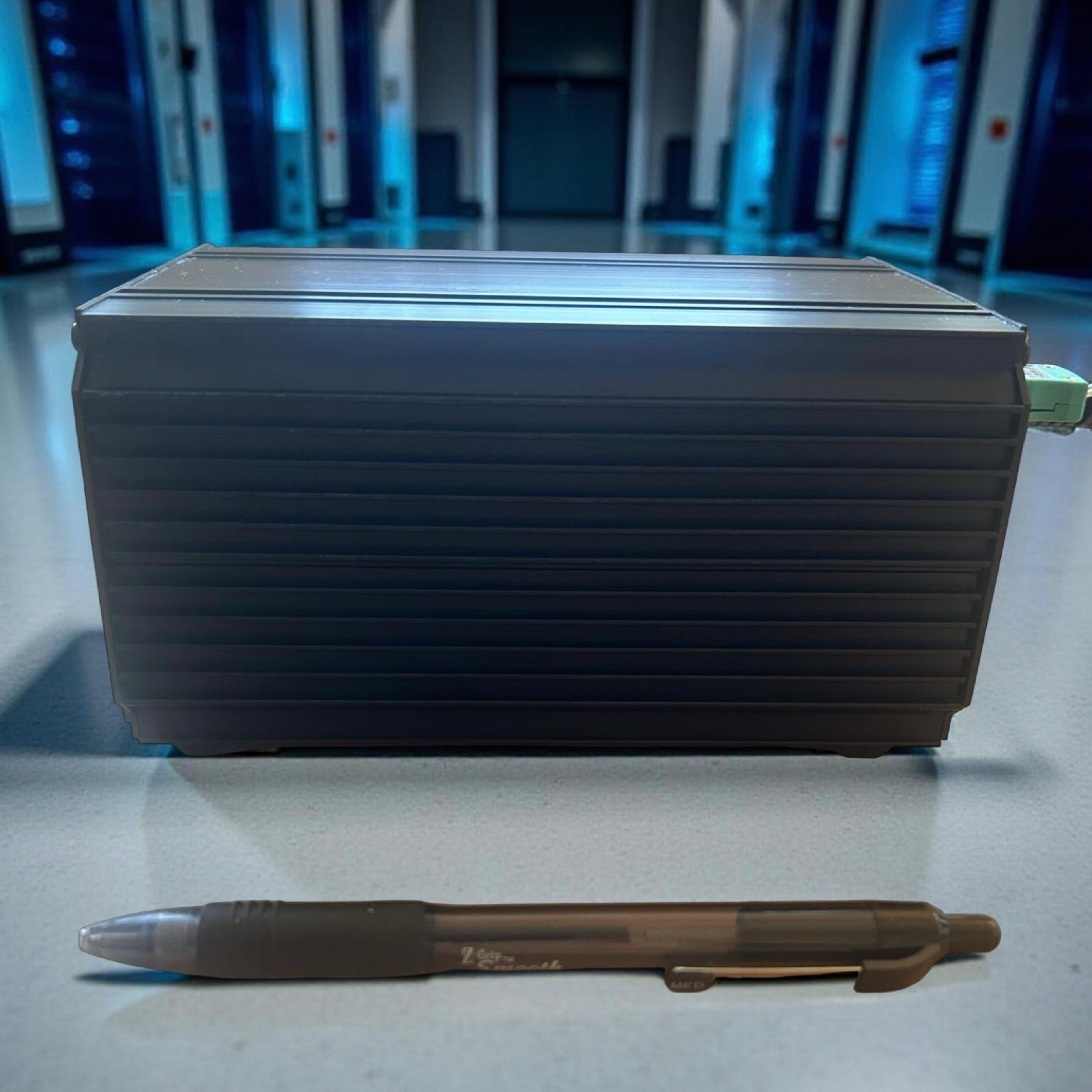

We have developed this ultra compact solution for control of electric heaters up to 2.3KW. It has simple connections at the rear for a thermocouple or PT100 sensor and an IEC power output. The unit operates from a standard 13A supply (UK 3 pin plug). It occupies minimal space on the bench and is supplied in an all metal housing.

This device has an on/off control action with adjustable hysteresis. This form of thermostatic control generally maintains setpoint to +/- 5 degrees C. The controller contains an isolated relay module which can be replaced without having to reprogram any parameters. Please note it is not intended for full PID control with a solid state relay (SSR).

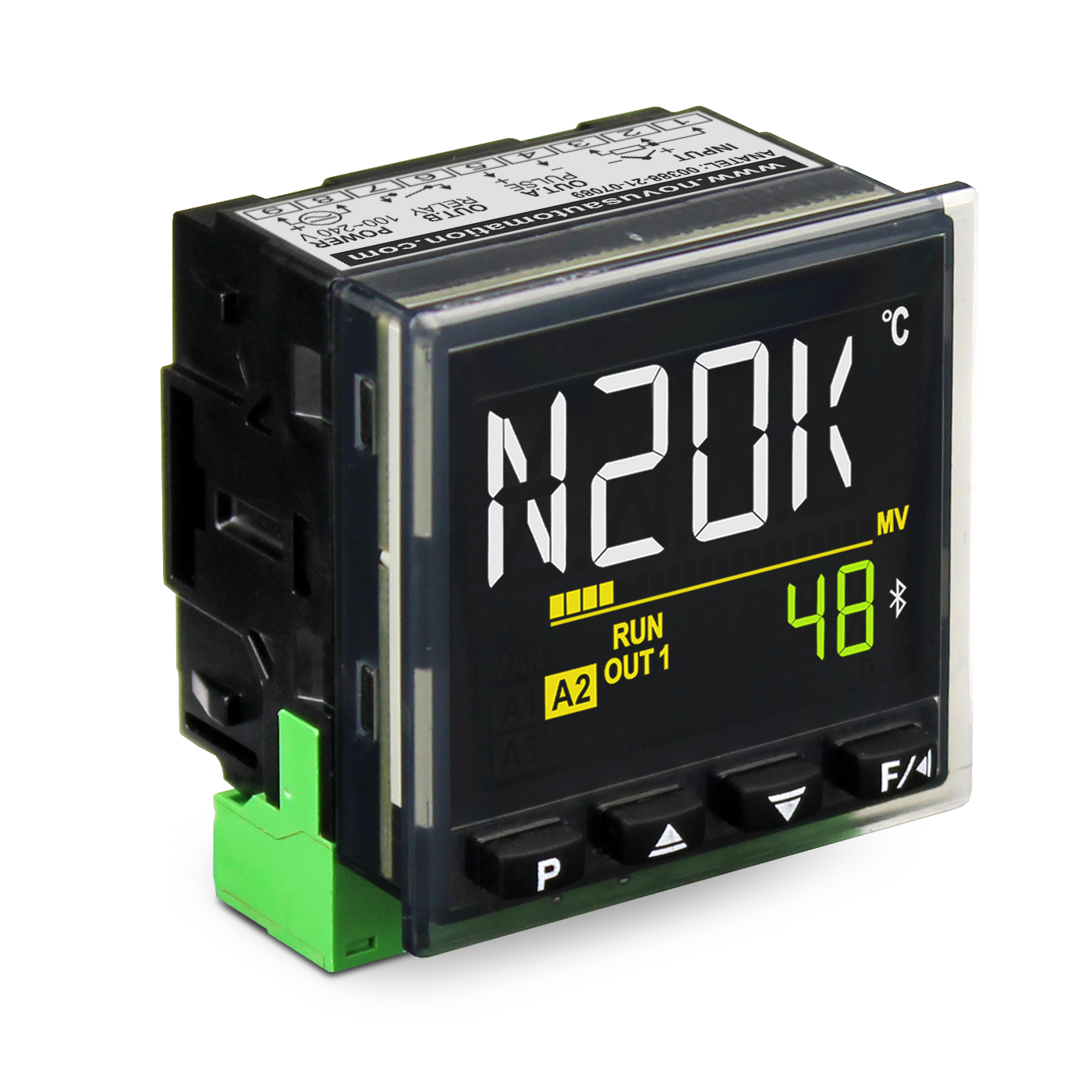

Despite it's size, the Benchtop Micro controller contains a powerful Novus N20K48 controller which incorporates Ramp & Soak Programming, Bluetooth Monitoring and a host of parameter options. Adjustments can be made from the front screen or via free Smart Phone App.

Suitable for 230V electric elements including cartridge and band heaters. You can also use this unit to upgrade small ovens and kilns. Supplied with a thermocouple or PT100 socket of your choice - we will contact you to confirm details. We also include compatible plugs for the sensor and heater outlet.

The operating temperature is dictated by the input type. Please see below.

J Range: -110 to 950 °C (-166 to 1742 °F)

K Range: -150 to 1370 °C (-238 to 2498 °F)

T Range: -160 to 400 °C (-256 to 752 °F)

N Range: -270 to 1300 °C (-454 to 2372 °F) R

R Range: -50 to 1760 °C (-58 to 3200 °F) S

S Range: -50 to 1760 °C (-58 to 3200 °F) B

B Range: 400 to 1800 °C (752 to 3272 °F) E

E Range: -90 to 730 °C (-130 to 1346 °F)

Pt100 Range: -200 to 850 °C (-328 to 1562 °F)
