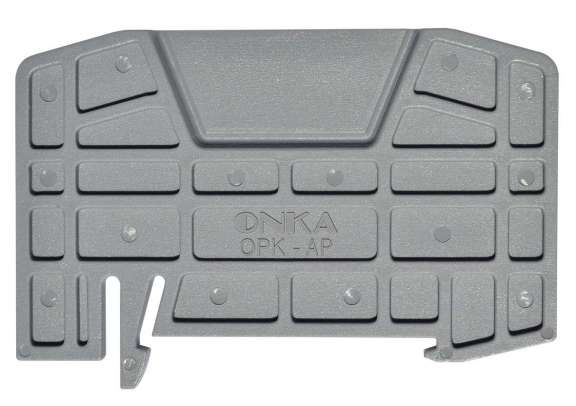

OPK Series Terminal Block Separator Plate
Onka manufacture great value fully encapsulated DIN rail terminals. This separator plate clips onto the rail alongside OPK and MRK terminal blocks to organise them into logical groups.
- Separator plates help to organise terminals into logical groups
- Avoid accidental cross connection and speed up troubleshooting
- Provide an isolating barrier between terminals
- Simple 'Clip On' fitting
Suitable for:
- 35 x 7.5mm DIN Rail (Top Hat Rail)
- 35 x 15mm DIN Rail (Top Hat Rail)
- Matches Old Onka Part Number 0592

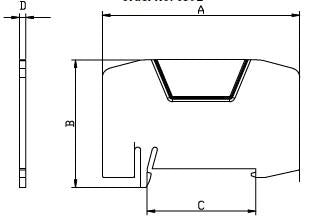

Technical Data
| Dimensions (mm) | |
| A | 63.5 |
| B | 41.3 |
| C | 34.5 |
| D | 2 |
Frequently Asked Questions
What terminal sizes is this compatible with?
Suitable for 2.5mm, 4mm, 6mm and 10mm OPK and MRK terminal blocks.
How does it fit?
Simple clip-on fitting, no tools required.
What's the difference between this and an end bracket?
This separates terminals mid-run into logical groups; end brackets and stops instead secure the ends of a terminal run.
Industry Applications
- Control panel building — visually organise terminal groups for easier maintenance
- Fault-finding & troubleshooting — clear separation speeds up circuit tracing
- Panel builders/OEMs — standard accessory for larger terminal rail assemblies
