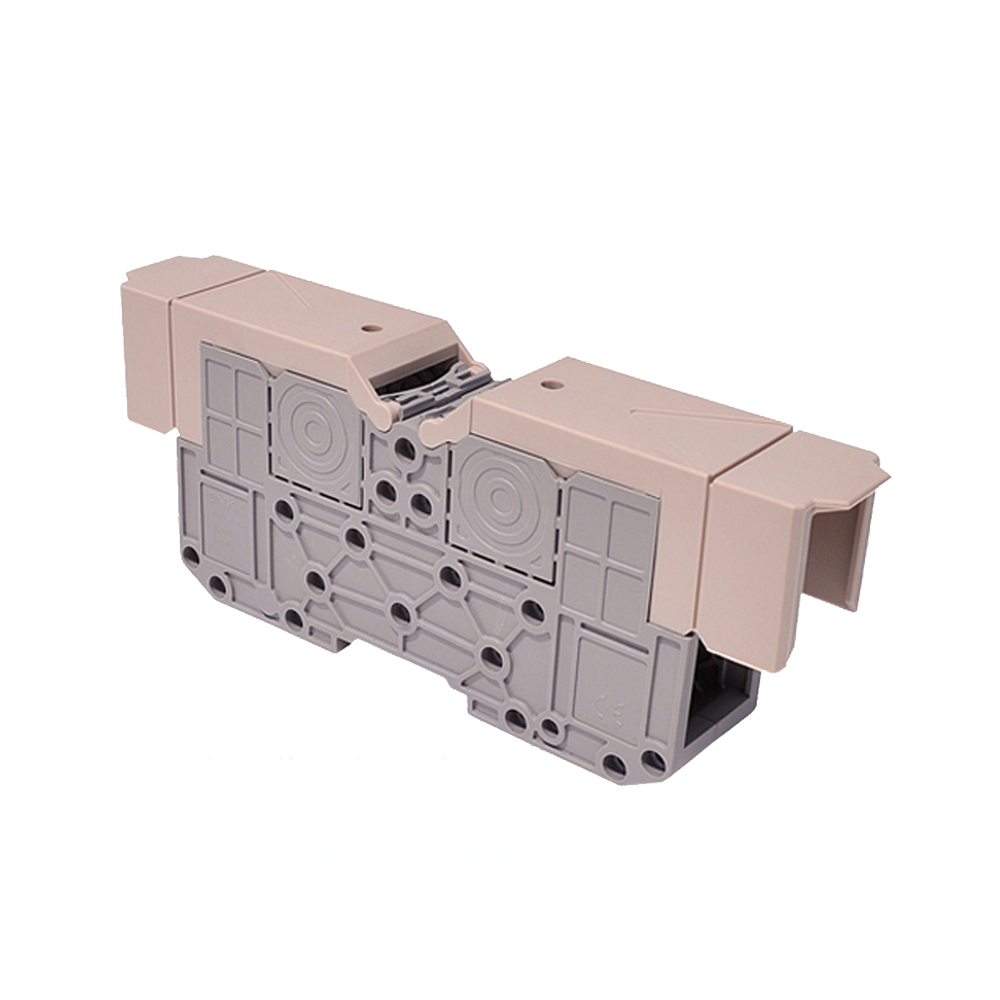

MRK 25 mm² STUD RAIL TERMINAL BLOCK (WITH COVER) GREY
Onka manufacture high quality blocks for terminating large CSA cables on DIN Rail. Perfect for high current applications where conventional rail terminals are not suited.
Ideal for power connections in rail and mobile systems, photovoltaic (PV) and industrial applications including electrical control panels and automation.

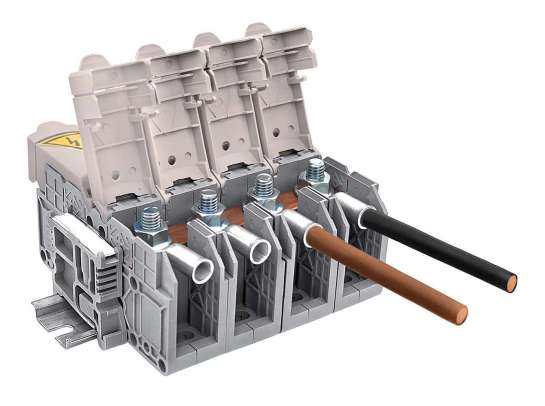

Through terminal, both sides have an M6 threaded connection and independent hinged cover. Please note these terminals are sold individually.
✔ Secure connection for high-section cables
✔ Maximum resistance against vibration
✔ Fully insulated with its modular cover structure
✔ High resistance against mechanical stress with the bolt connection and high tightening torque
✔ Longer operational facility lifecycle and minimum voltage drops with lossless conductor structure
Matches Old Onka Part Number 2302

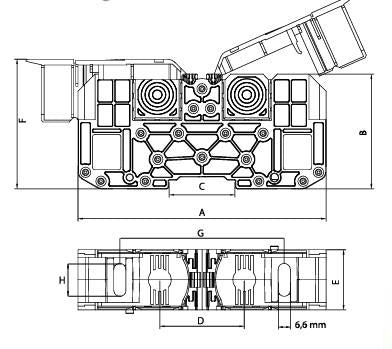

Technical Data
| Section(mm²) | 25 |
| Voltage | 1000V |
| Current | 101A |
| Bolt | M6 |
| A(mm) | 107 |
| B(mm) | 50.8 |
| C(mm) | 35 |
| D(mm) | 40 |
| E(mm) | 27 |
| F(mm) | 58.5 |
| G(mm) | 76.5 |
| H(mm) | 16.3 |
| Body | PA6.6 |
| Legs | PA6.6 |
| Cover | PA6.6 |
| Bolt | Steel(8.8) |
| Nut | Steel(INOX) |
| Bridge | Copper |
| Conductive type | tin plated electrolytic bar |
| Working temperature | -40°C,+140°C |
| Assembly type | 35mm DIN RAIL + screw to background |
| Torque | 3Nm |
| Bridging busbar section | 25mm² |
Frequently Asked Questions
What cable size does this accept?
25mm² CSA cable via an M6 threaded bolt connection, rated 101A at 1000V.
How is it mounted?
35mm DIN rail plus screw-to-background fixing, with an independent hinged cover on each side.
Is this sold individually or as a kit?
Sold individually — both sides have their own M6 threaded connection and hinged cover.
What applications is this suited to?
High-current power connections — rail and mobile systems, photovoltaic (PV) installations, and industrial control panels and automation.
Industry Applications
- Photovoltaic (PV) installations — high-current DC connections for solar arrays
- Rail & mobile systems — vibration-resistant high-current terminations
- Industrial control panels — large CSA cable termination where standard rail terminals aren't rated
