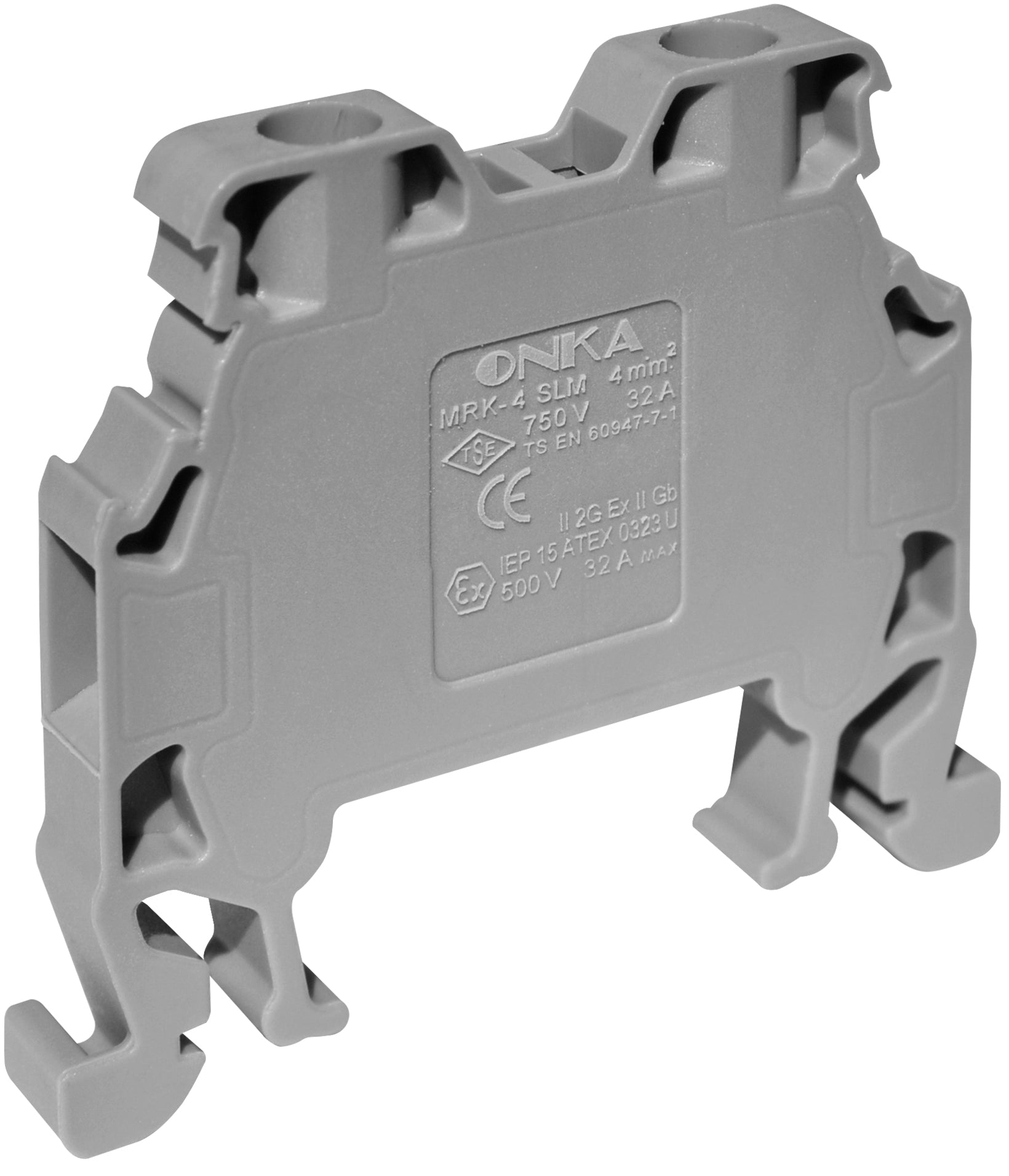

MRK Slim Series Screw Connection Rail Terminal Blocks
Onka offer great value fully encapsulated DIN rail terminals. The Slim series saves on component space where room in control panels is limited.
There is no need to purchase additional end plates, each terminal has an embedded end plate. Slim Series 4mm terminal is only 5.9mm wide!
Suitable for:
- 35 x 7.5mm DIN Rail (Top Hat Rail)
- 35 x 15mm DIN Rail (Top Hat Rail)
- Matches Old Onka Part Number 0912
Simple Cross Connection Method
Cross connections or commoning can be achieved using simple push in bridges. The cross connector strips can be cut down to link the correct number of terminals. This 4.0mm terminal requires the 2.5mm bridge due to its compact size.
Technical Data
| Body | PA6.6 |
| Bridge | Copper |
| Contact | CK45 Steel |
| Screw | Steel |
| Temperature | -40°C,+140°C |
| Cable Strip L. | 10mm |
| Torque | 0,4Nm |
| Data | TSE/CE |
| Voltage | 750V |
| Current | 32A |
| Section | 4mm² |
| Norm | EN-60947-7-1 |
| Dimensions (mm) | |
| A | 40 |
| B | 40 |
| C | 34.5 |
| D | 36.5 |
| E | 5.9 |
Alternative to Weidmuller WDU 4 1020100000
Alternative to Wago TopJob S 2204-1201
