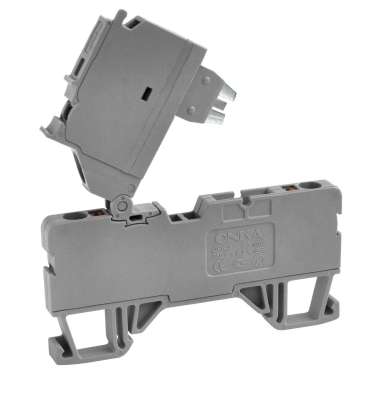

OPK Series Push In Connection Rail Fused Terminal Blocks
Onka manufacture great value fully encapsulated DIN rail terminals. The OPK Series offer unrivalled performance in push fit cable termination.
- Accepts standard 5 x 20mm fuse, fast lever operation
- Can be linked with commoning bars on input side for fast wiring
- Typically used in control panels for distribution of DC power supply
- No need to purchase additional end plates - terminal has an embedded end plate
- Terminals are symmetrical - does not matter which way around they are mounted
- Accepts solid conductors or crimped ferrules - lock into place without tools
- Save time and drive down costs with fast installation and simplified accessories
Suitable for:
- 35 x 7.5mm DIN Rail (Top Hat Rail)
- 35 x 15mm DIN Rail (Top Hat Rail)
- Matches Old Onka Part Number 2482
Simple Cross Connection Method
Cross connections or commoning can be achieved using simple push in bridges. The cross connector strips can be cut down to link the correct number of terminals.
Technical Data
| Body | PA6.6 |
| Bridge | Copper |
| Spring | Stainless Steel |
| Temperature | -40°C,+140°C |
| Cable Strip L. | 9mm |
| Data | TSE/CE |
| Voltage | 750V |
| Current | 6,3A |
| Section | 2,5mm² |
| Norm | EN-60947-7-3 |

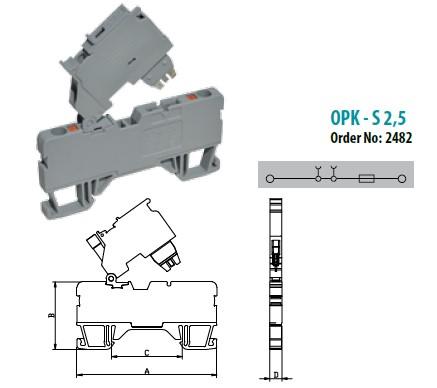

| Dimensions (mm) | |
| A | 68.3 |
| B | 33 |
| C | 34.5 |
| D | 5.9 |
Alternative to Weidmuller WSI 6 1011000000
Alternative to Wago TopJob S 2202-1911
