Great for:
- Remote Sites (with no WiFi coverage)
- Distributed Assets Inc. Off Grid
- Logging Instrumentation (flow, pressure, temperature and level)
- Environmental/Climate Monitoring
- Agriculture
- Cold Chain

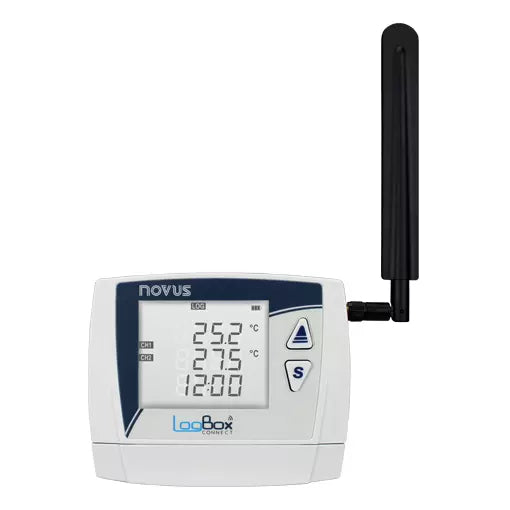

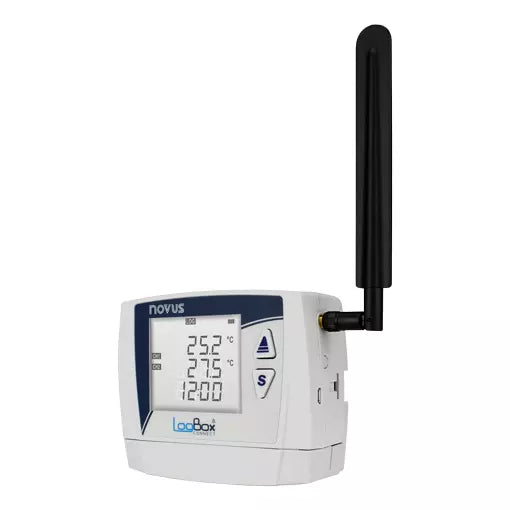

LogBox LTE is suitable for mobile applications with transmission over long distances using mobile (cellular) networks. It contains a SIM slot which accepts standard mobile data SIM cards. The device is compatible with 5G and 4G networks. The datalogger can operate in Publisher and Subscriber mode using the MQTT protocol.
The device samples the inputs and provides a timestamped record of the measured values. This is logged to the internal memory (140K Logs). It can also publish the data to a Cloud Broker (Novus Cloud or generic Broker). The records can be retrieved easily using the following methods:
- NXperience free Software (locally via USB)
- NXperience Cloud (remote via MQTT)*
- Other Cloud Broker (remote via MQTT**
*Novus Cloud STARTER is free for 180,000 (180K) records per year. This equates to approximately 3 variables logged every 10 minutes. The BASIC plan with higher limits is only £140 annually
**LogBox LTE can publish data to any MQTT broker (including open-source options like Mosquitto, EMQX, HiveMQ, or cloud services such as AWS IoT Core, Azure IoT Hub, and Google Cloud IoT
In the event of a loss power the device can continue to record and transmit the values. Or, to prolong battery operation, the transmission can be paused until reconnection of the external supply.
Other important features of this product include:
- Built in temperature sensor for measuring ambient environment
- Battery monitor, the battery voltage can be monitored and logged
- Power supply monitor, the external supply can be monitored and logged
- Programmable output (PNP)
- Simple mounting bracket and detachable terminal blocks
- Up to 80 hours battery life if external power is lost
- Accepts standard temperature sensors and most analogue signal types
- MQTT / Cloud compatibility, open broker
- 1 second to 12 hour recording interval (recommended: 300 seconds)
- 10 alarms available (can activate digital output, send SMS
and MQTT publication)
FieldLogger and LogBox products are typically available on 7-10 days lead time. If your requirement is urgent please contact us.
MPN 8813006500
Novus LogBox Connect LTE Datasheet Download
Novus LogBox Connect LTE Manual Download
• Input Signals:
1 Digital Input
2 Analog Inputs
• Analog signal type:
Thermocouples J,K,T,N,E,R,S and B
Pt100, 0-50mV, 0-5V, 0-10V, 0-20mA, 4-20mA
• Digital Input Functions:
Count Pulses, Register Events or Start Logger
• Digital Output:
1 PNP Output (Electronic Key or Alarm)
• Internal sensors:
NTC for temperature, Battery Voltage and External Source Voltage.
• Display:
3 lines with 4½ digits
• Resolution:
Analog channels: 15 bits
Pulse counter: 16 bits
• Memory Capacity:
140,000 records
• Recording Interval:
1sec to 12h
• Variable Record:
Instantaneous or average
• Acquisition Trigger:
Date/Time, Start button, Digital Input or by software.
• Alarms:
8 Alarms (two per channel)
Minimum and maximum
• Internal Buzzer:
Yes
• Communication Interfaces:
Mobile communication (NB-IoT, Cat-M)
USB
• Configuration software:
NXperience for Windows and NXperience Mobile app
• Communication with SCADA or Cloud system:
MQTT Protocols
• Power:
10-30VDC
• Backup battery:
1 alkaline battery
• Operating Temperature:
With source: -20 to 60°C
• Housing Protection:
IP40
• Dimensions:
120 x 100 x 40 mm
• LTE Bands:
1, 2, 3, 4, 5, 8, 12, 13, 18, 19, 20, 25, 26, 27, 28, 66, 71, 85.
Frequently Asked Questions
Q. Do I need a Cloud broker to use this device?
A. To view and download REMOTELY you need a Cloud broker. For LOCAL download via USB all that is required is a laptop or computer running NXperience software
Q. Do I need a special SIM card to use this device?
A. A standard micro SIM from any leading mobile provider can be placed into the SIM card slot. We recommend testing with a PAYG Data SIM at the proposed location to ensure connectivity. Once proven, a Mobile Data plan can be purchased from your network provider. A fixed IP SIM card is NOT required.
Q. Can I use the device purely on Battery supply?
A. The LogBox LTE contains a rechargeable battery. It can operate for limited periods on the internal battery (up to 80 hrs). The main power source is the external supply which can be 10-30VDC. This means it can operate from an external Battery bank as well as conventional DC power sources such as Power Supply Units stepped down from mains voltage
Q. How much is a Novus Cloud subscription?
A. We recommend new users test with the STARTER package which is completely free of charge for one device and covers 180,000 records. The BASIC package has higher limits, covering more users and devices. The cost is £140.00 annually. For advanced users with multiple devices a CUSTOM plan is recommended as the most cost efficient.
Q. How easy is it to install and setup the device?
A. Initial configuration using NXperience is carried out using the built in USB port. This can typically take 30 minutes. Once the SIM card is operational a Cloud account can be registered with Novus Cloud (free of charge). Overall it is realistic that the device can be wired and functional in 1-2 hours, with data visible on Novus Cloud.
Q. How do I create a Novus Cloud Account?
A. Simply visit the link below and register with your email address:
https://iot2.novusautomation.com/
Q. How do I add a device to Novus Cloud?
A. Once a new Cloud account has been registered, simply login using your browser and follow the steps to 'Create A New Device'. This will generate a token which should be copied and pasted into the relevant configuration software e.g. NXperience. Then download the updated configuration file to the device (containing the token). It is important to also check the device communication settings prior to download.
