TagTemp is an excellent choice if you are looking to upgrade a basic USB temperature logger. It offers greater versatility compared to similar devices:
- Setup and log in under 5 minutes with free software
- Replaceable battery ensures a long service life (CR2032)
- Built-in USB micro port for easy download with free software (NXperience)
- Mounting hole to secure in a range of internal and external locations
- IP67 rating, compact sealed housing
- Indicator LED flashes to notify status
- Applications include Cold Chain, Warehouse, Agriculture

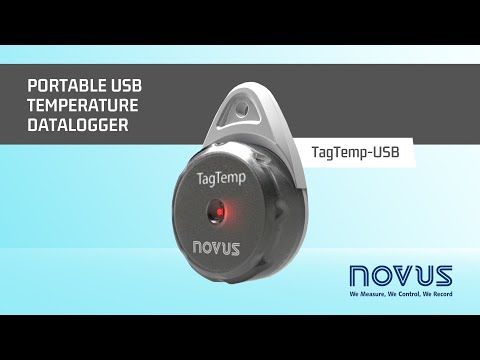

TagTemp-USB is a small portable electronic temperature logger. Its internal sensor measures the local environment temperature and logs values to electronic memory. Logged data can be viewed and analysed on a PC, opened in tabular sheets and graphs.
This model features a replaceable CR2032 battery to ensure a long service life.
Now compatible with NXperience software for setup and downloading.
Logging Example: Set to 2 Minutes interval the logger has 45 days until the memory is full or beings overwriting. Memory mode can be circular or full.
MPN 8813600000
Novus TagTemp-USB Manual Download
- Measure Range
Temperature: –20.0 °C to 70.0 °C
- Accuracy:
±0,5°C @25°C
± 1 °C max. along the entire measured range
- Measurement Resolutions: Temperature: 0.1 °C
- Memory capacity: 32.000 (32 k) logs
- Measurement Interval:
5 seconds min
18 hours max
- Supply: 3.0 V lithium battery (CR2032), built-in
- Estimated autonomy:
More than 400 days – Sampling rate of 1 minute
More than 500 days – Sampling rate of 30 minutes
- Operating temperature: From -20 °C to 70 °C
- Case: PC-ABS
- Protection: up to IP67 degree of protection
- Dimensions: 55 x 37,5 x 15 mm
- Equipment -PC data transfer time
- Proportional to the number of records. 20 seconds to 32,000 records: PC Interface: Micro-USB cable
- LogChart ll software operation environment:
Configurator software for Windows ® 8, 7 and XP
Menus in Portuguese, English or Spanish
Sets up, reads and displays data on the screen
