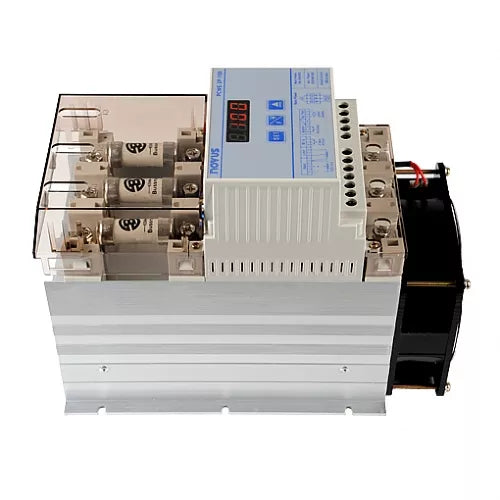

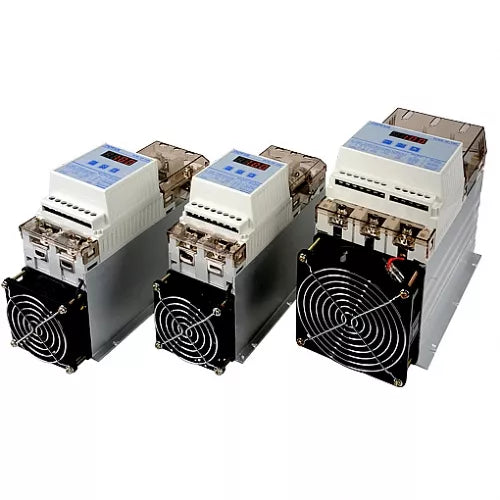

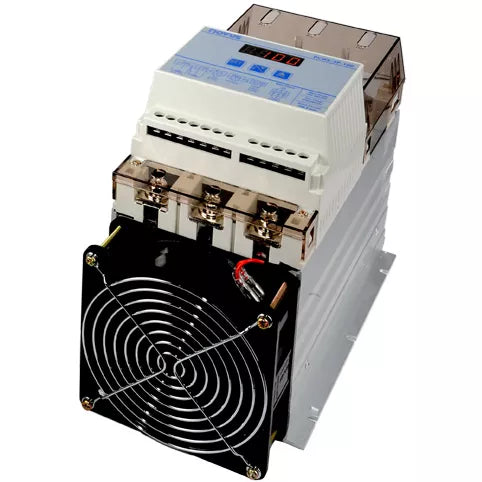

Power regulator 3P-200 A-180~440 Vac: PCWE-3P-200
For control of large electrical loads including heaters to 200A, commonly found in industrial temperature controls such as furnaces, heat treatment and curing ovens.
The NOVUS PCWE Thyristor Power Controller delivers precise, reliable power management for demanding industrial applications. Built for heavy-duty loads up to 200A across three-phase systems (180–440VAC), this controller combines phase-angle and PWM switching technologies to optimise efficiency and reduce energy waste.
Key advantages include integrated load-limiting capability, allowing you to protect equipment and prevent system overload. Ultra-fast fuses provide rapid fault protection, safeguarding both your load and electrical infrastructure. Modern control architecture ensures superior durability, repeatability, and cost-effective operation across heating, resistive, and motor-driven applications. Engineered for industrial precision and long-term reliability, the PCWE is the intelligent choice for process control where power regulation and system protection matter.
Accepts analogue control signals 0-10V and 4-20mA. Universal compatiblity with temperature controllers and PLCs with appropriate outputs.
MPN 8823233200
- Load Voltage: 180~440 Vac; 50/60 Hz
- Control Signal:
0-20 mA, 4-20 mA
0-5 V, 1-5 V, 0-10 V and 2-10 V
10 k Potentiometer
- Control Type: pulse train and phase angle
- Control Supply: 220 Vac; 50/60 Hz
- Relay Alarm SPST; 3 A / 250 Vca
- Dielectric strength between parts: 2500 V
- Working Temperature: -10 to 60 ºC
- Plastic enclosure: ABS+PC / UL-94V0
