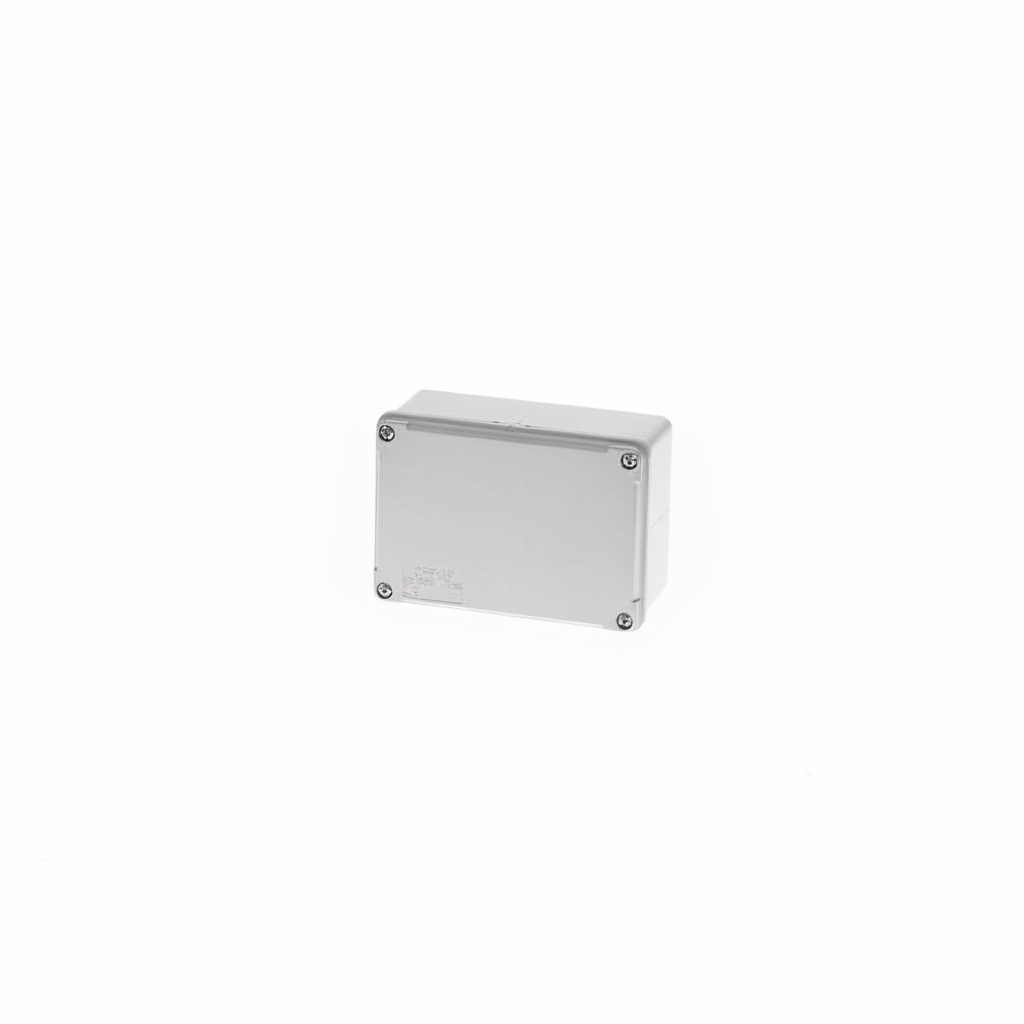

Lightweight enclosure with secure lid, gasket seal and high impact resistance.
Internal clearances for mounting components:
Length: 140mm
Width: 100mm
Depth: 65mm
Suitable for wall mounting. Easy to cut and drill. Other WIB products available in sizes up to 460 x 380mm please contact us if you require a different size.
We recommend these enclosures for electrical termination, cable extension and for mounting small power and automation components. Perfect for adding sensors and making minor machinery modifications.
Can be used to house temperature controllers in different orientations. Narrow depth PID controllers such as N1030, N1030T and N20K48 can be flush mounted into the lid. If the enclosure is fitted horizontally (with the lid at the top) then 1/16 DIN PID controllers or digital thermostats such as N321, N322 can be mounted in the sidewall.
| Material | Thermo-resistant ABS |
| Material sealing gasket | EPDM |
| Protection class | IP65 |
| Temperatures during install. | -5°C - 60°C |
| Glow wire test | 650 °C |
| Impact resistance | IK07, IK08 |
| External dimensions LxWxH | 150x110x75mm |
| Type | WIB 9 |
| Product Color | RAL 7035 |
| WISKA-Order no. | 50106957 |
| Packing unit | 1 |
| Tariff number | 85366990 |
