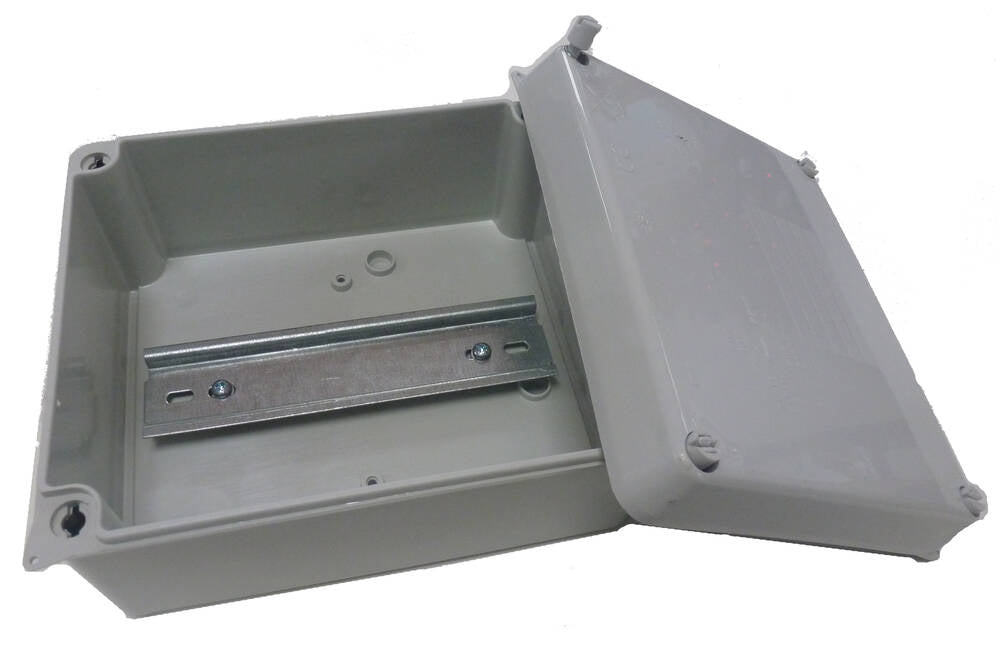

Complete lightweight enclosure with DIN Rail preinstalled. Lid is secured with 4 no. quarter turn screws. The lid is prevented from dropping during installation by a retaining tab.
Suitable for wall mounting. Easy to cut and drill. Other WIB products available in sizes up to 460 x 380mm please contact us if you require a different size.
We recommend these enclosures for electrical termination, cable extension and for mounting small power and automation components to approx 70mm depth (from rail). Perfect for adding sensors and making small machinery modifications.
| Material | Thermoplastic |
| Protection class | IP65 |
| Temp. range min | -25 °C |
| Temp. range max | 85 °C |
| Temperatures during install. | -5°C - 60°C |
| Glow wire test | 650 °C |
| Impact resistance | IK07 |
| External dimensions LxWxH | 165x145x84mm |
| Type | WIB 3/DR |
| UK-Number | 817GLH |
| Product Color | RAL 7035 |
| WISKA-Order no. | 10104650 |
| Packing unit | 1 |
