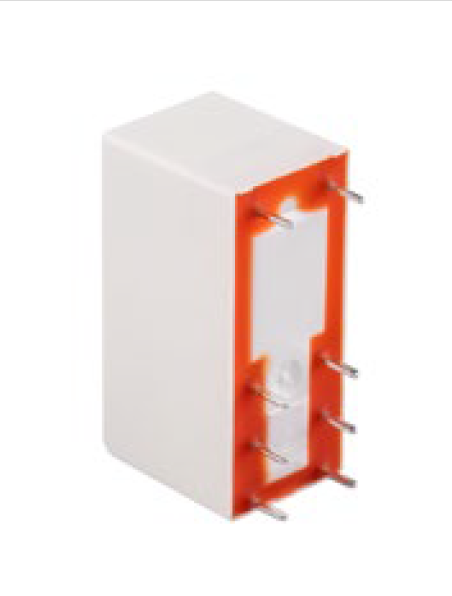

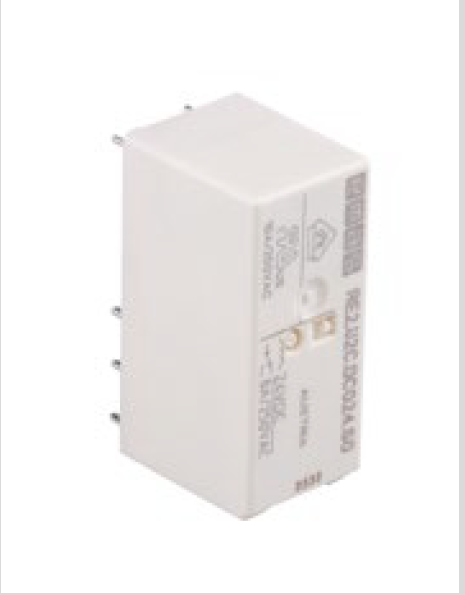

High-quality miniature relay featuring 2PCO (2 Pole Changeover) configuration with 8A current rating. This 8-pin relay operates at 230VAC and is ideal for industrial automation and control applications. Compact design ensures easy integration into your electrical systems while delivering reliable switching performance.
Requires relay base: RS2.M2CO.08V.S0
Product
PCB Power Relay
Serial
RE2 Series
Contact
2CO
Pin
8Pin
Contact Material
AgNi 90/10
Pin Pitch (mm)
5mm Pin Pitch
3.5x0.8mm
Connection Type
PCB
Operational Voltage
230VAC
Current (Ie)
8A
Voltage
250V AC
Usage Category
AC-1
Mechanical Life (Min Qty)
5000000
Electrical Life (Min Qty)
30000
Dielectric Strength (Body-Contact)
5.000 Vrms
Dielectric Strength (Contact-Contact)
1.000 Vrms
Operating Temperature
-40 / +70 °C
Pollution Degree
2
Protection Degree
FP
Weight (Net) (Gr)
13
Why Use Miniature Relays?
Miniature relays also known as plug in or power relays are very popular in automation and control applications. They incorporate the principle function of a relay: controlling a larger load with a small current often at a lower voltage. Beyond this they also help engineers to develop control systems which may require the following:
Latching Circuits - requiring more than one set of contacts to hold the coil
Electrical Isolation - protecting PLC outputs by isolating larger loads
Auxiliary Functions - multiple poles allow for secondary functions like indication
Changeover Contacts - normally open and closed switching offers greater versatility
Redundancy / Expansion - spare contacts can be utilised later
Maintenance - plug in relays can be replaced quickly in the field
Faultfinding - transparent cases help visual inspection, mechanical test buttons speed up diagnosis
