IF SERIES THREE LEVEL 24V AC/DC 1MT CABLE CONSTANT KEY CONTROL M22 SCREW LED BEACON 55MM

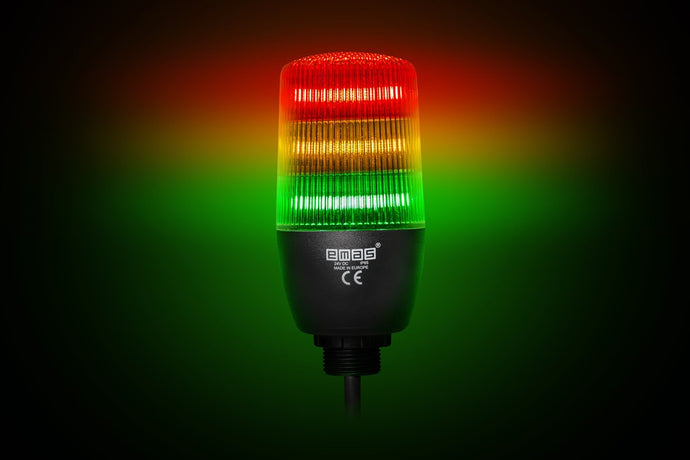

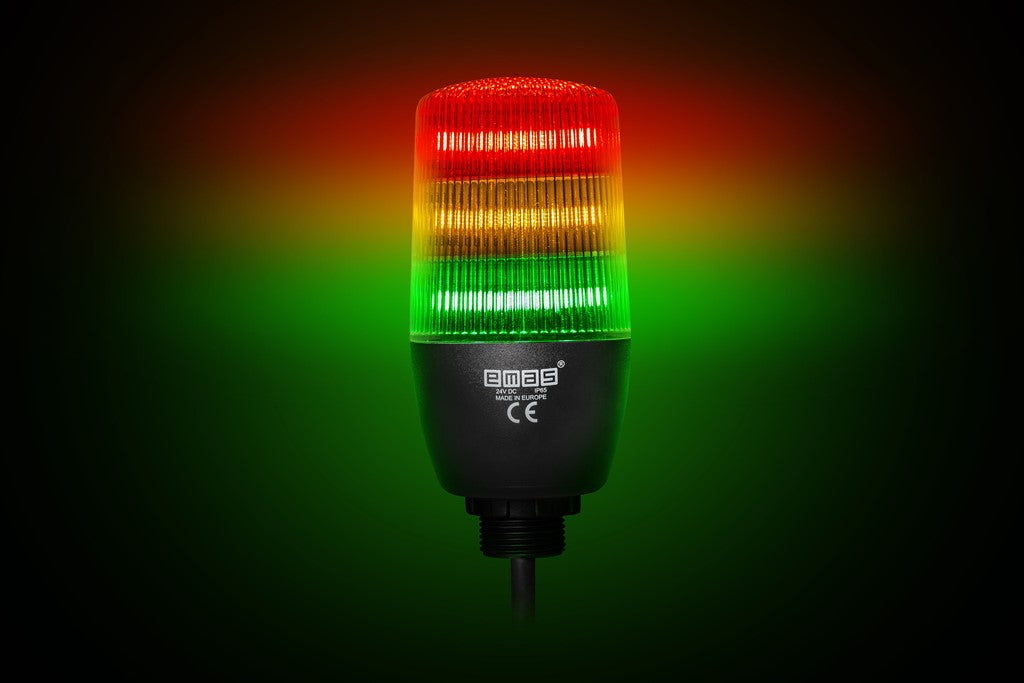

The IF5T024XM05-1 stacks Red, Amber, and Green into one 55mm tower, letting each level illuminate individually or together for a full three-state machine status signal from a single 22mm mounting hole. Simple PNP wiring means you apply 24V DC directly to whichever colour you need lit, with an optional integrated buzzer if audible alerting is also required.
- 3 levels: Red, Amber, Green
- Illuminate individually or simultaneously
- Flashing can be achieved from PLC or command wire
- Heat resistant, clear vision Polycarbonate
- Monoblock construction
- Easy PNP wiring, apply 24VDC to the colour you wish to illuminate
- Simple installation to 22mm hole
- Buzzer or no buzzer optional models
EMAS IF5 IF6 LED Beacon User Manual
Technical Details
Frequently Asked Questions
Can all three colours be lit at once?
Yes — each level (Red, Amber, Green) can be illuminated individually or simultaneously, so you can build combined status signals (e.g. amber+red for "fault, awaiting reset") rather than being limited to one colour at a time.
Do I need a separate buzzer, or can I get one built in?
Both options are available — this listing includes a "With Buzzer" variant (IF5T024ZM05-1) alongside the standard light-only version, so you can add audible alerting without sourcing a separate unit.
Can I get flashing rather than constant illumination?

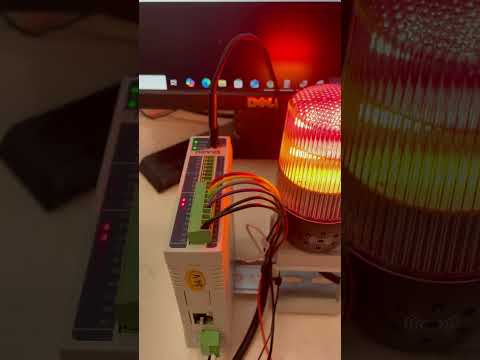

Flashing can be achieved by driving the relevant colour wire from a PLC output or command wire — the beacon itself doesn't need a separate flashing mode variant for this.
What does "Key Control" mean for wiring?
It refers to the simple PNP wiring scheme — you apply 24V DC directly to whichever colour wire you want lit, with no additional control logic needed inside the beacon.
Industry Applications
- Machine status towers — full run/warning/fault signalling from a single compact 22mm-mount beacon
- Production lines & cells — combined light + optional buzzer for at-a-glance and audible status from the same unit
- Outdoor & harsh environments — IP65 rating suits exposed or washdown-adjacent installations
