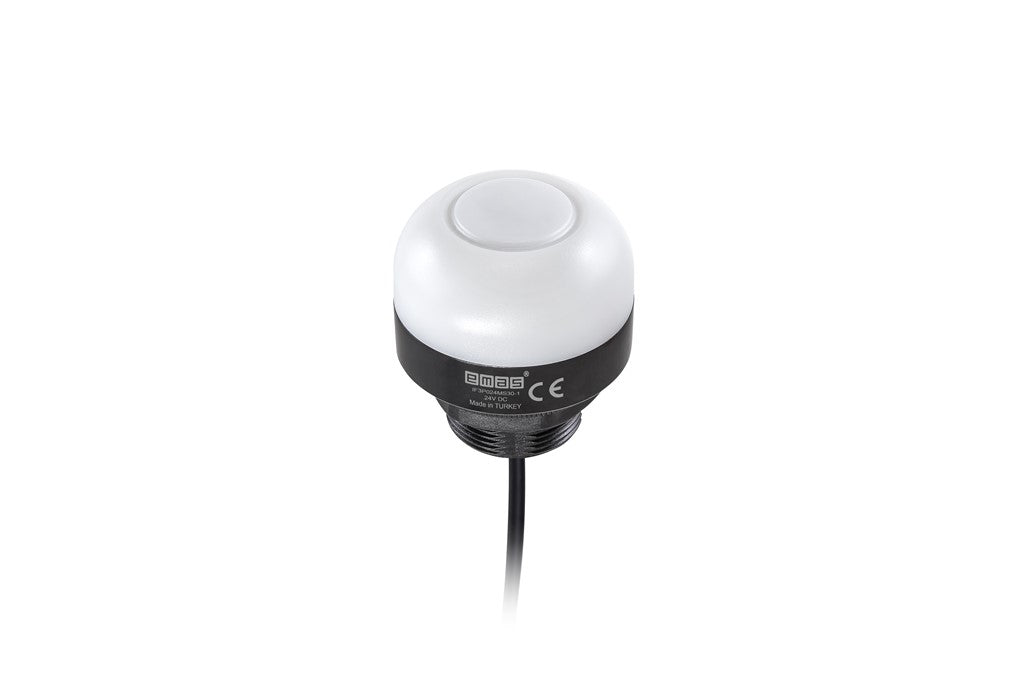

IF Series Multicolour 24V DC 1mt Cable Constant PNP PLC Harmonized M30 Screw LED Beacon 50mm
The IF3P024MS30-1 gives you five beacon colours in a single low-profile 50mm dome, switched by wiring rather than swapping lenses — ideal where panel space is tight but you still need clear status signalling. Its IP67 rating and heat-resistant polycarbonate lens mean it's built to handle harsh or washdown environments without flinching.
- Heat resistant, clear vision Polycarbonate signal module
- Monoblock construction
- Low profile for installation in areas with small clearances
- 5 available colours (select via switching wire PNP)
- Easy to install to 30mm hole
- Simple PLC/control wiring
- 2 Year Manufacturer Warranty
EMAS IF3 LED Beacon User Manual
Technical Details
Frequently Asked Questions
How do I choose which of the 5 colours it shows?
Colour is selected by which switching wire you energise (PNP), not by swapping a lens — so one unit covers multiple status colours without stocking separate SKUs.
What's the difference between PNP and NPN versions?
PNP and NPN describe the output wiring logic of your PLC or control system. Check which your control circuit uses — EMAS offers both (IF3P024MS30-1 for PNP, IF3N024MS30-1 for NPN); they aren't interchangeable without rewiring.
Is this suitable for outdoor or washdown installation?
Yes — IP67 rated, meaning full dust protection and resistance to temporary immersion, well beyond typical indoor IP65 panel indicators.
How much panel clearance do I need?
It mounts through a simple 30mm hole and has a low-profile monoblock design, so it suits tight installations where a taller multi-lens stack tower wouldn't fit.
Industry Applications
- Cranes, hoists & mobile plant — compact, weatherproof multi-status beacon in space-constrained mountings
- Outdoor & washdown installations — IP67 rating suits exposed or frequently washed-down equipment
- Machine status signalling — a single beacon covering run/fault/warning/maintenance states via wiring selection instead of multiple stacked units
