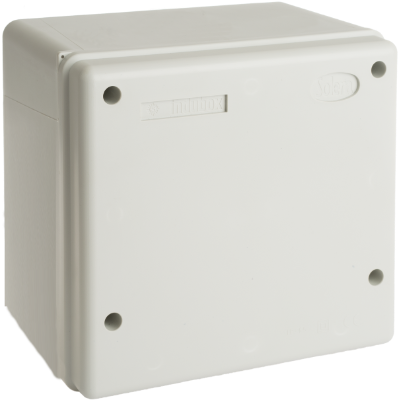

Basic style enclosure without window. Made from Polycarbonate which is easy to cut and drill. A great choice for rapid installation.
Versatile:
- Flush installation of components to the front face including temperature controllers, metering devices, HMIs
- Internal rail installation of DIN components and terminals. DIN rail is not included but can be ordered separately.
- Suitable for use as a terminal box when extending or modifying wiring
Mounting Examples:

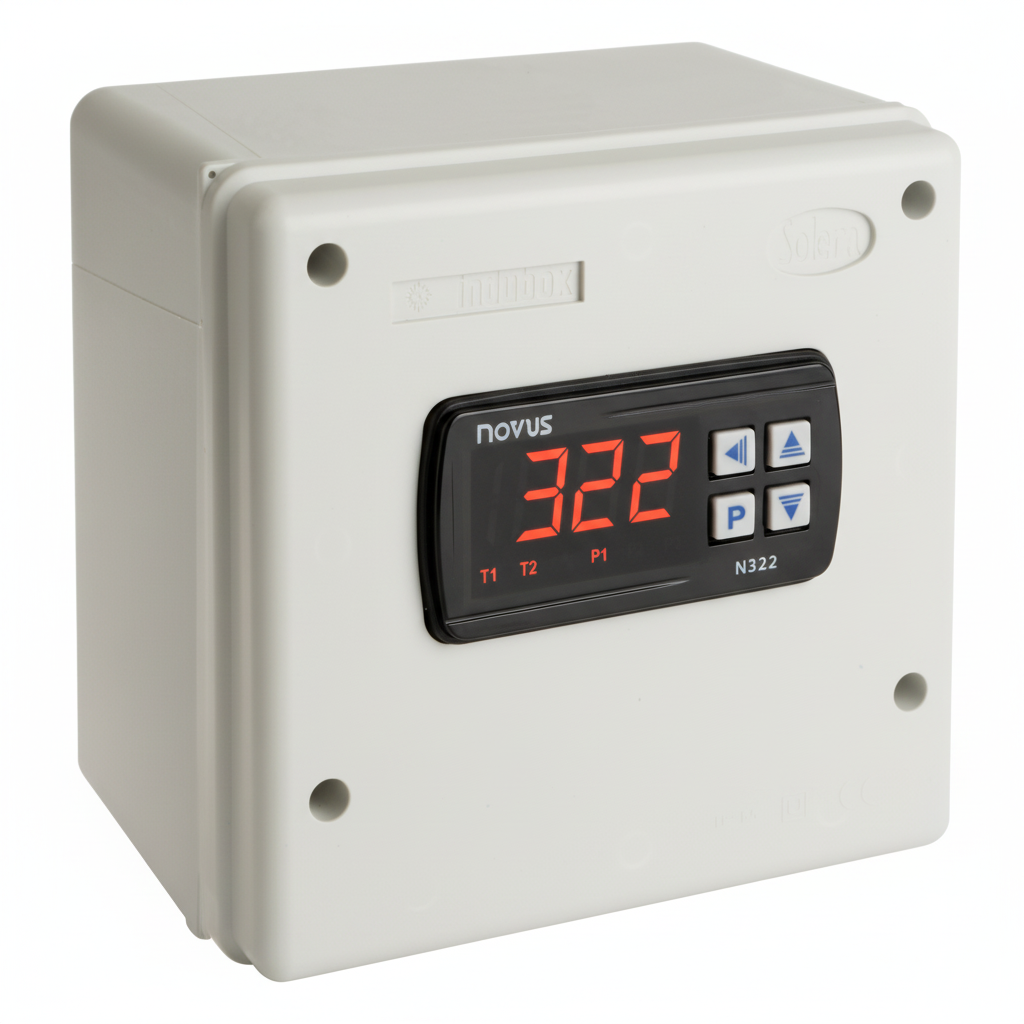

- We have successfully fitted our standard depth Novus N1040 and N1050 controllers
- It is also suitable for use with the majority of PID temperature controllers, digital thermostats and refrigeration controllers
Includes multiple glanding/entry points with pre-marked drilling points.
| Protection class | IP65 |
| Glow wire test | 650 °C |
| Temp. range min | -25 °C |
| Temp. range max | 85 °C |
| Material | Polycarbonate |
| Product Color | RAL 7035 |
| External dimensions LxWxH | 215x200x140mm |
| Type | 818A |
| UK-Number | 818A |
| WISKA-Order no. | 10104641 |
| Packing unit | 1 |
