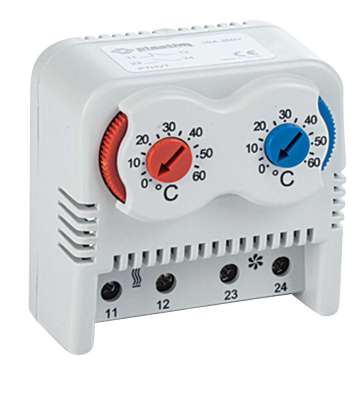

KNHVT Control Panel Double Thermostat — Heating & Cooling
Economical control of heating and cooling within electrical control cabinets.
Independent switching of loads for panel heaters, cooling and ventilation fans.
Simple setpoint adjustment. Clearly marked wiring terminals.
Technical Data
Sensor Element Thermostatic bi metal.
Contact Type Snap-action contact.
Switching Current 230 VAC 10A
Case Material Plastic according UL94 V-0
Protection Class IP 20
Approvals CE
Mounting Fit 35mm DIN rail
Electrical Connection 0,75 - 1.5 mm² 2 poles terminal.
Dimensions 63 x 59 x 42 mm
Weight 82g
Environmental: Halogen free product
Frequently Asked Questions
How does this differ from the single KNHT/KNVT thermostats?
It combines both heating (N.C.) and cooling (N.O.) switching in one DIN rail unit, with independent setpoints for each channel.
What load can each channel switch?
Up to 10A resistive at 230VAC per channel.
How is it wired?
2-pole terminal, 0.75-1.5mm² cable, mounts to 35mm DIN rail.
Is this suitable for controlling both a heater and a fan in the same panel?
Yes — that's its main use case, independently switching a panel heater and a cooling/ventilation fan from setpoints on the same unit. See the KNHT and KNVT single-function versions if you only need one function per unit.
Industry Applications
- Control panel climate control — a single unit manages both heating and cooling
- OEM machine builders — reduces DIN rail space versus two separate thermostats
- Outdoor/variable-climate enclosures — maintains a stable internal temperature range year-round
