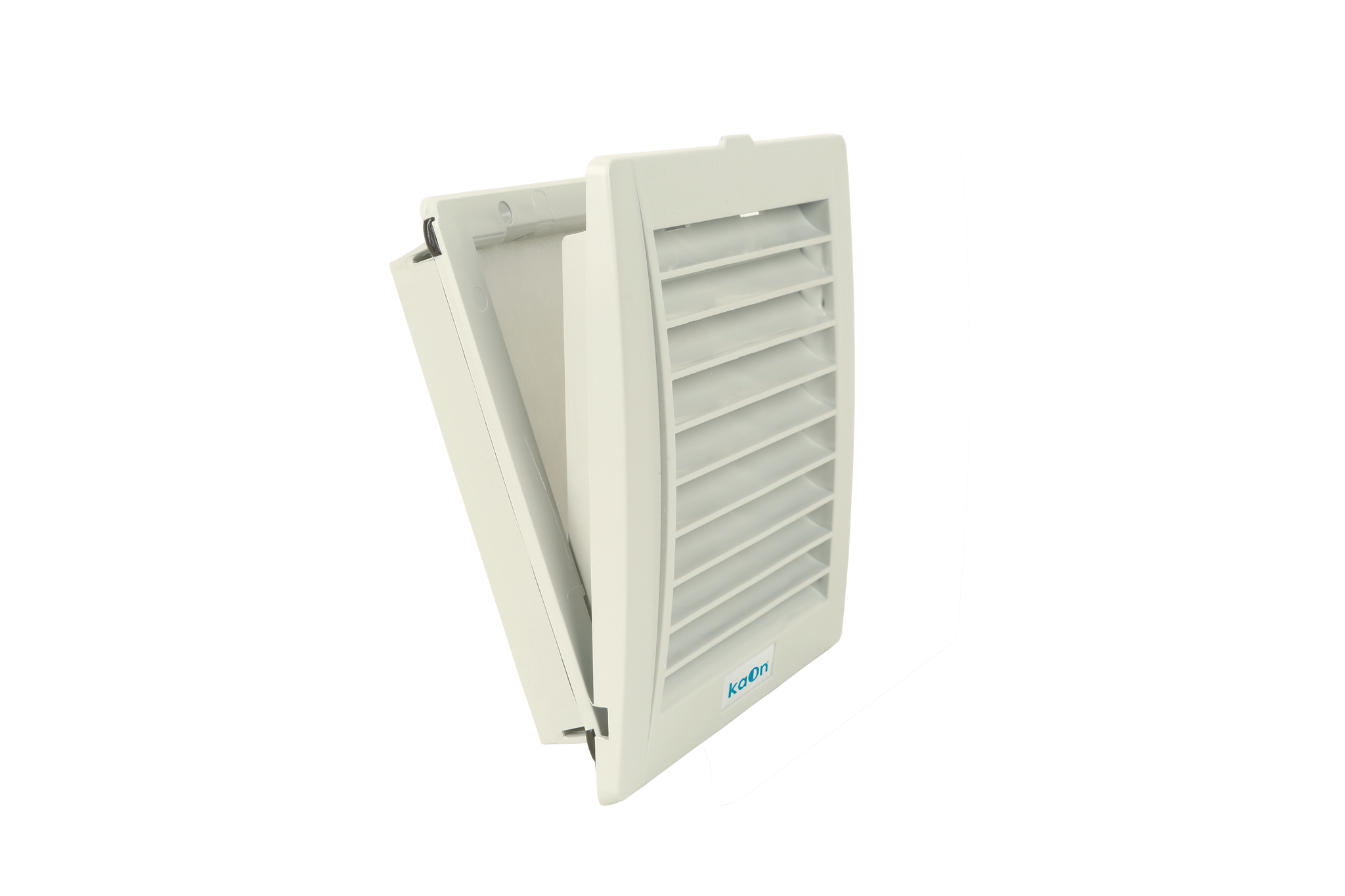

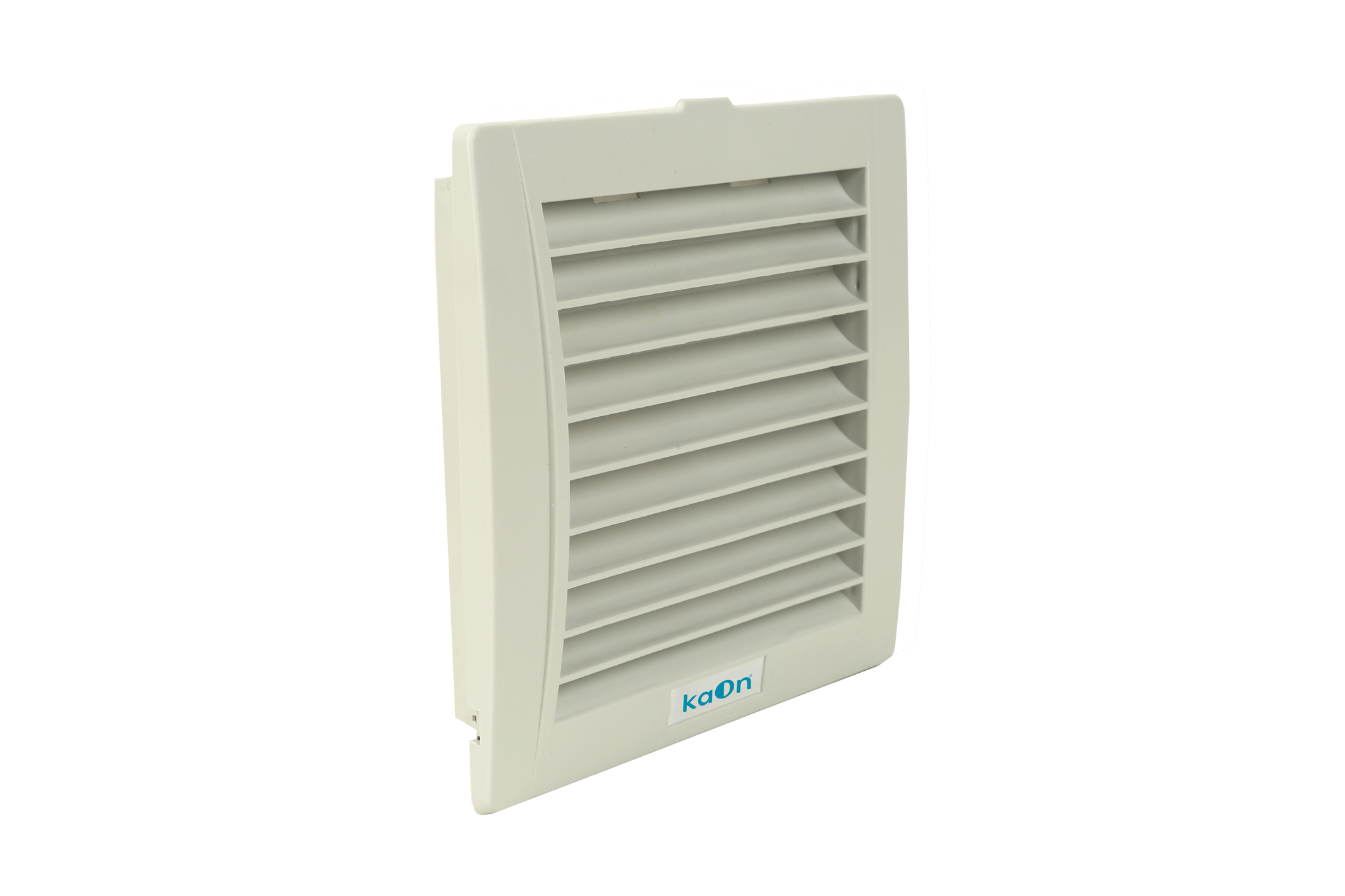

KNF1500 IP54 Control Panel Filter Vent Grille
Onka manufacture extremely durable filter vents for control panel ventilation.
Made from Halogen Free material.
Contains filter membrane and external gasket to prevent particle ingress.
Easy fitting, snaps into place and remains secure.
Simplified maintenance without having to enter the panel.
Cutout: 125mm x 125mm
Technical Data
Protection Degree - IP54
Dimensions mm 155x162x34
Package Dimensions mm 168x168x40
Operating Temperature °C -10 +70
Material - ABS UL 94V-0
Colour - RAL7032 - RAL7035 - RAL9001 - Silver
Gasket - Polyurethane
Weight kg 0.18
Mounting - Fast Clip-on
Conformity / Approvals - CE
Frequently Asked Questions
What cutout size do I need?
125mm x 125mm.
Does it come with a filter?
Yes — includes a filter membrane and external gasket to prevent particle ingress.
How is it fitted?
Fast clip-on fitting, no tools required, secures directly into the panel cutout.
Can this be paired with a filter fan for active cooling?
Yes — see the KNFF1500 filter fan, which matches this vent's cutout and overall dimensions for a filtered intake/exhaust pair.
Industry Applications
- Control panel ventilation — passive airflow with particle filtration
- OEM machine builders — standard IP54 vent for enclosure cooling
- Outdoor/dusty environments — gasket and filter membrane reduce particle ingress
