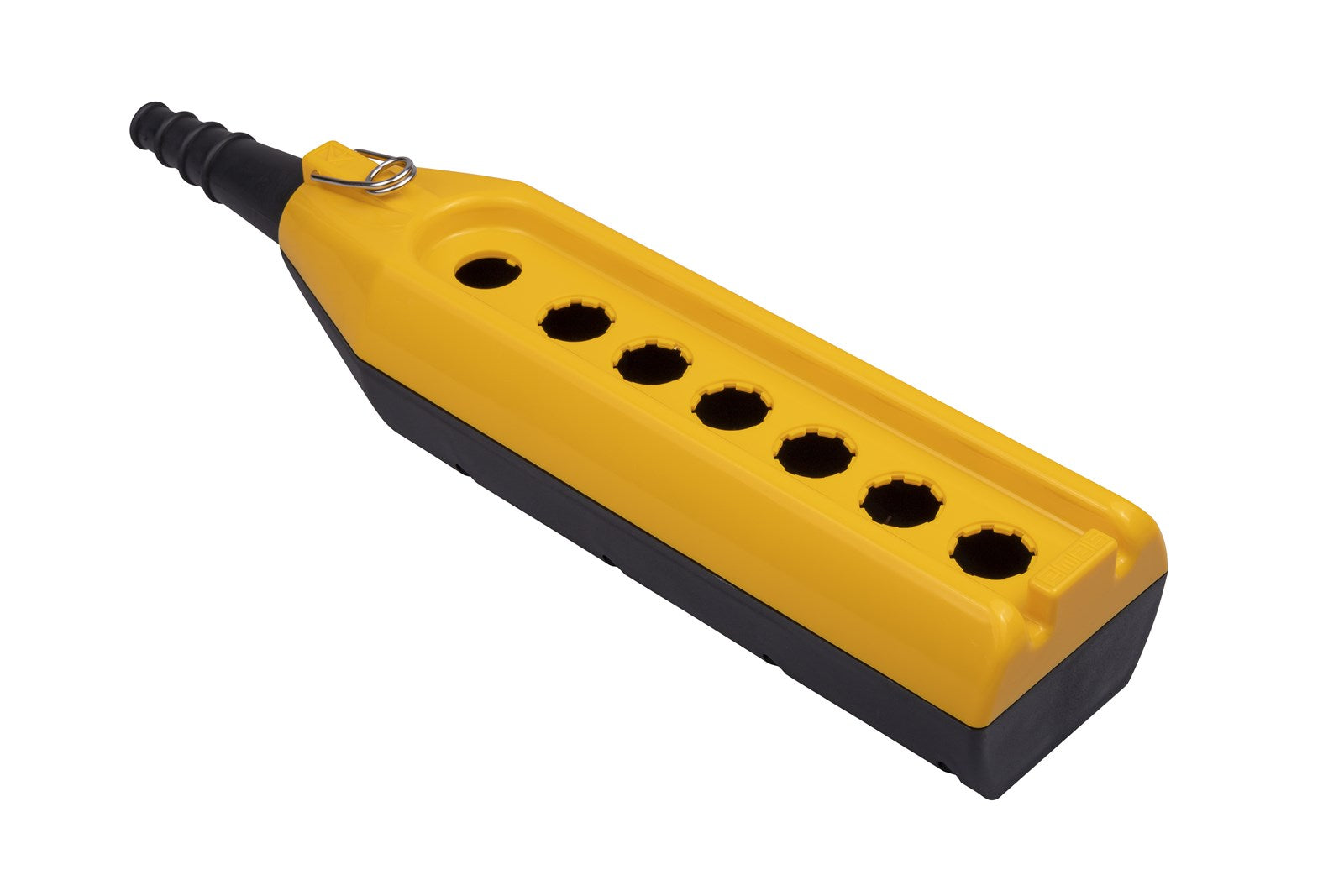

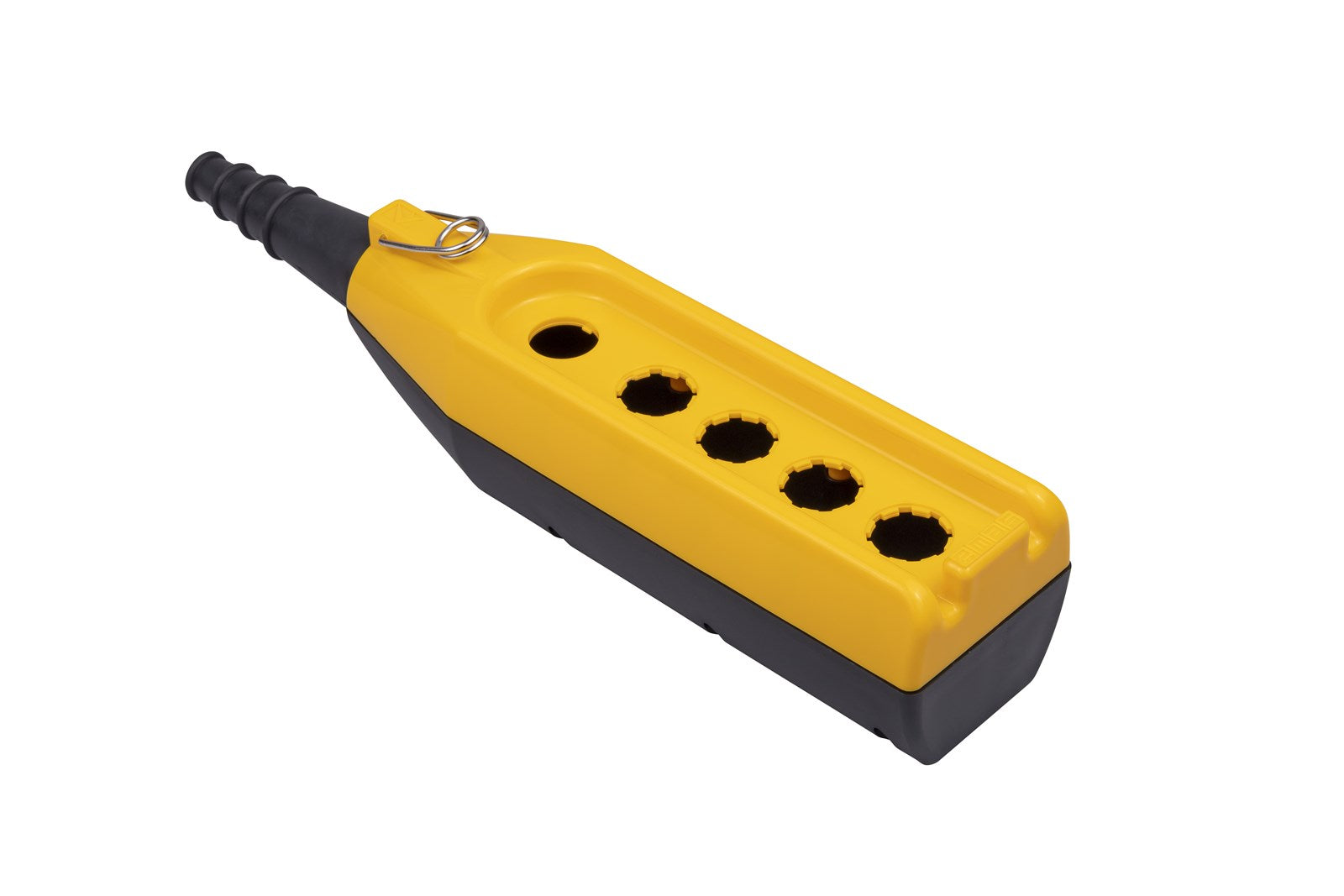

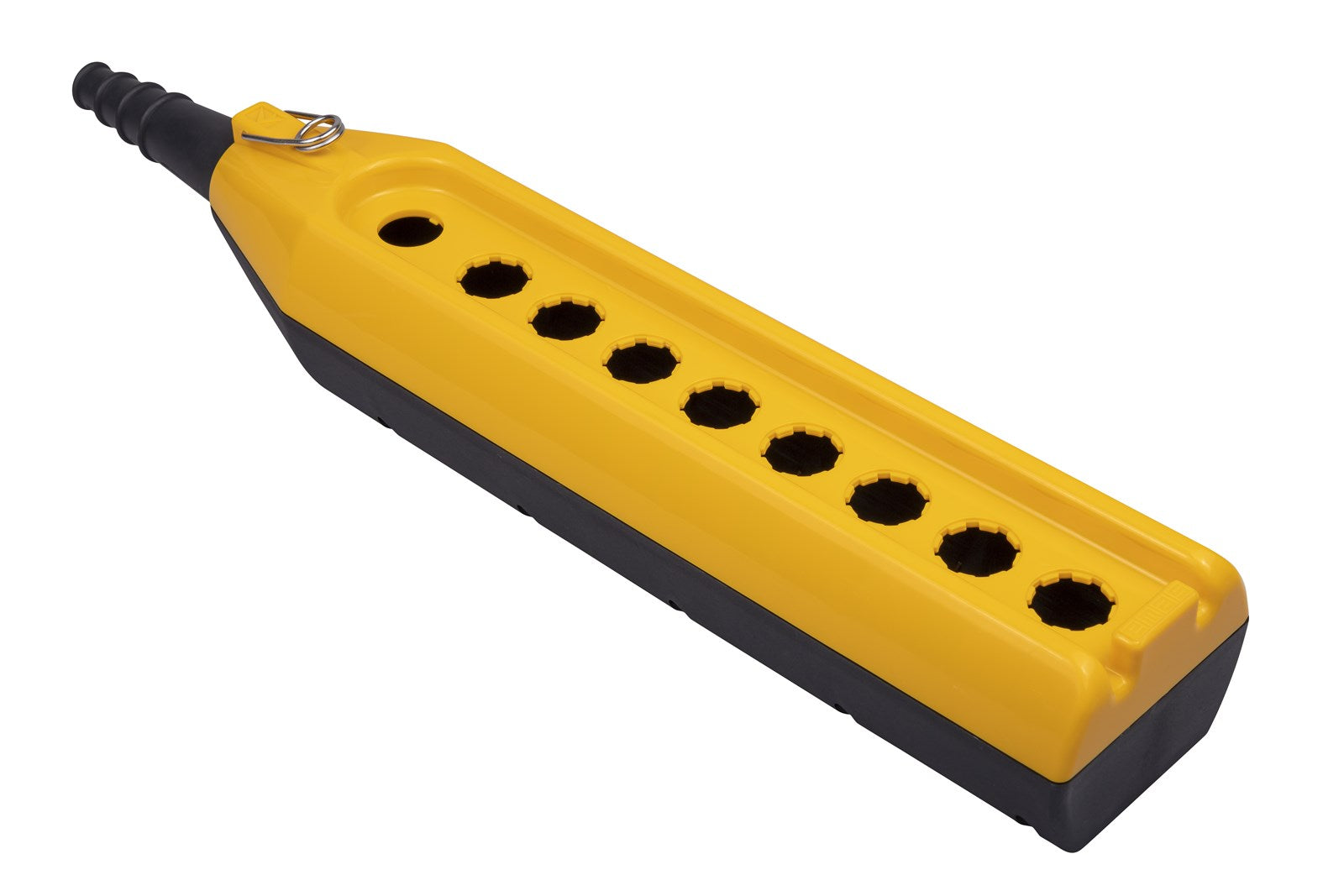

PV Series 3-9 Hole Blank Crane Pendant Station
Heavy duty control station with hook/hanger used for handheld operation of plant and machinery.
Configurable with 22mm components of your choice, see our EMAS CP Series products for options.
IP65 rated with CP Series buttons and switches. Empty / unused holes can be blanked with EMAS TIPASOM.
Silicon covers can be purchased to increase the protection level of pushbuttons. See EMAS CEB.
Product
Crane Pendant Station
Type
3-9 Hole
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 900 Elec. 900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PV Series
Speed
Blank
