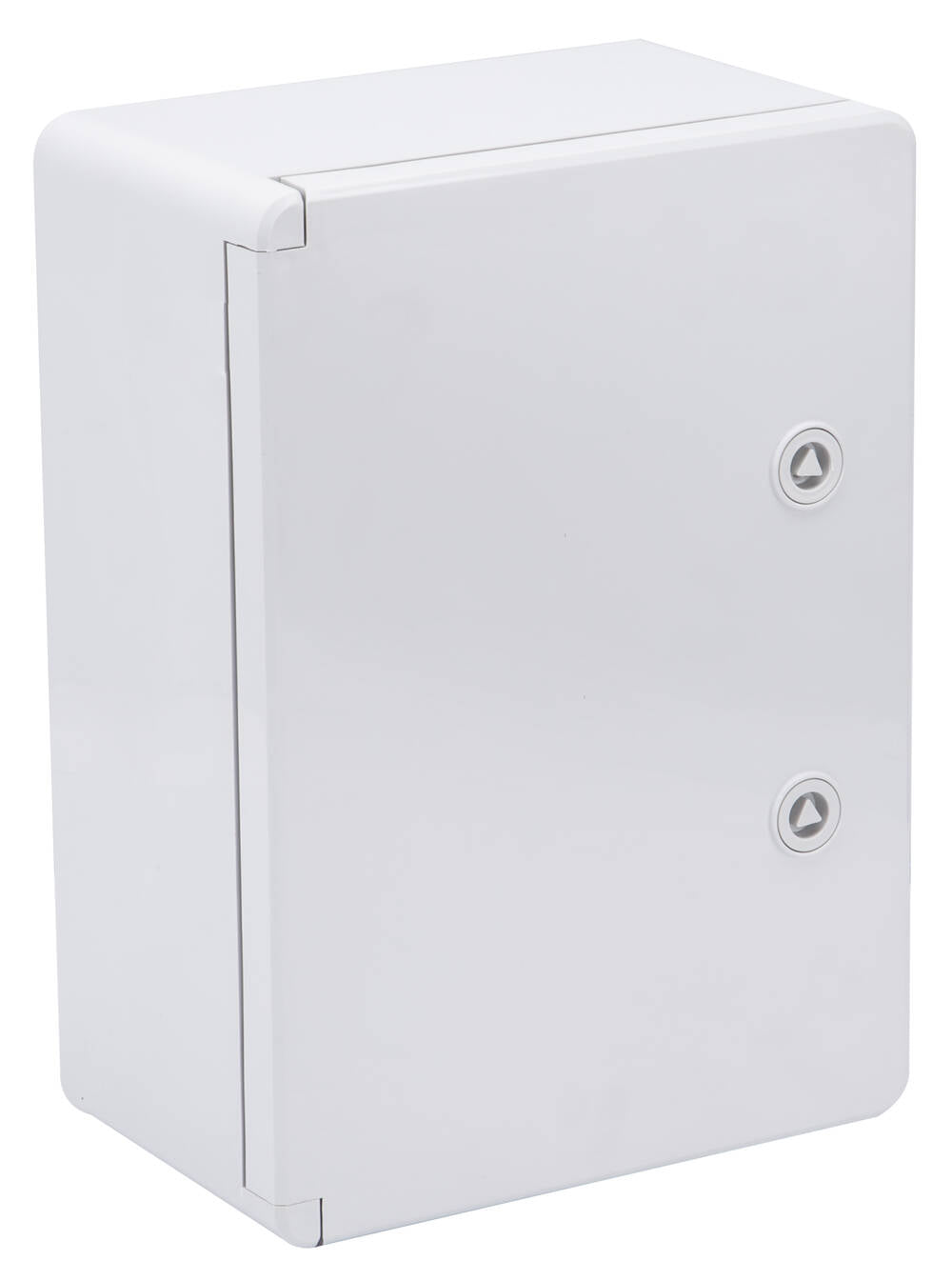

Complete lightweight enclosure with component mounting plate and lockable door. High Impact Resistance: rated IK10.
Suitable for wall mounting. Easy to cut and drill. Available in sizes up to 800 x 600mm please contact us if you require a different size.
We recommend these enclosures for basic automation projects and for use as a larger terminal or junction box. Can be used to house Micro PLCs, Smart Relays, Drives and other microcontrollers including Remote IO.
| Protection class | IP65 |
| Temp. range min | -35 °C |
| Temp. range max | 65 °C |
| Material | Thermo-resistant ABS |
| Product Color | RAL 7035 |
| External dimensions LxWxH | 350x250x150mm |
| No. Elements | 18 |
| Type | WDB 2 |
| Order no. UK | 50107050 |
| Packing unit | 1 |
