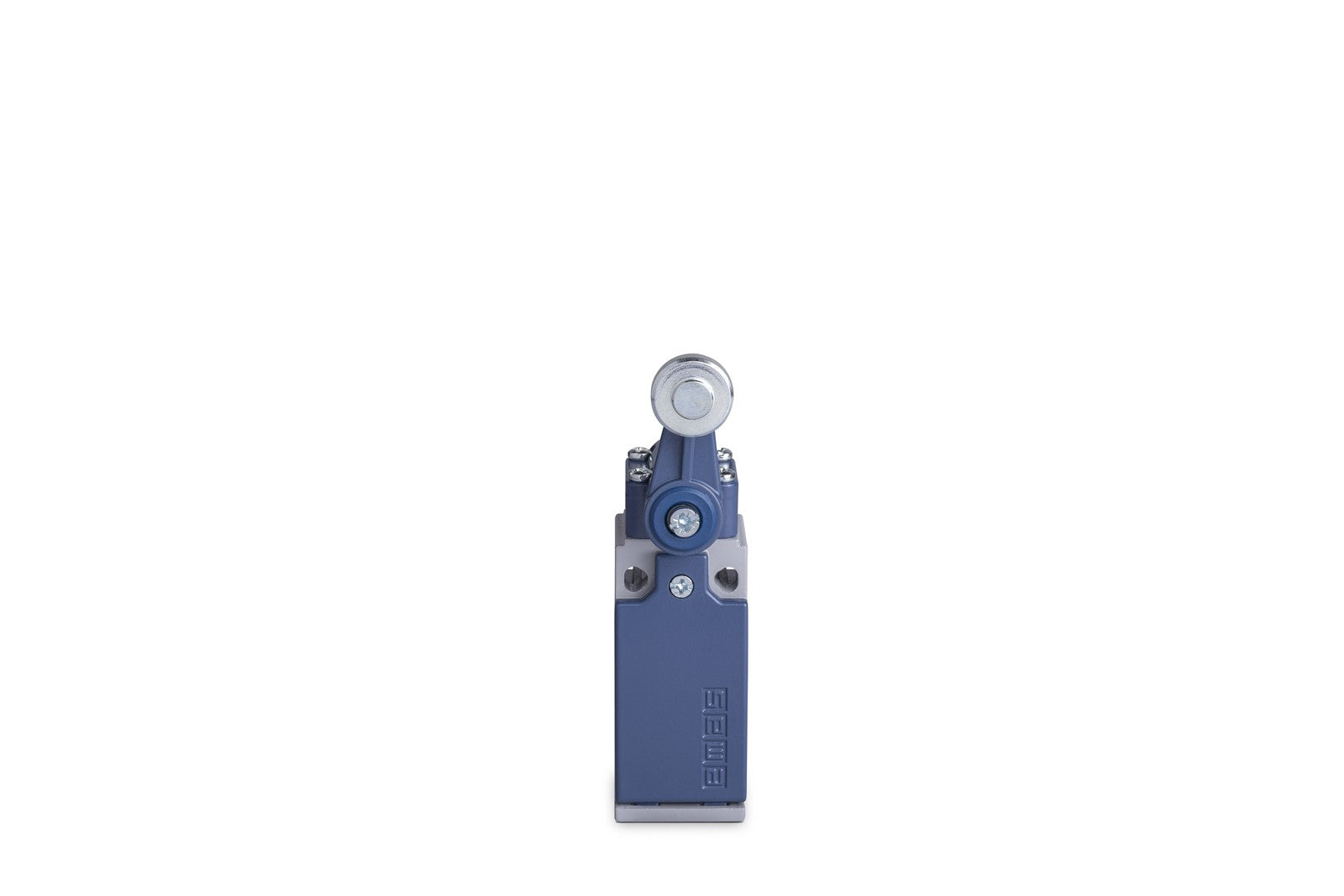

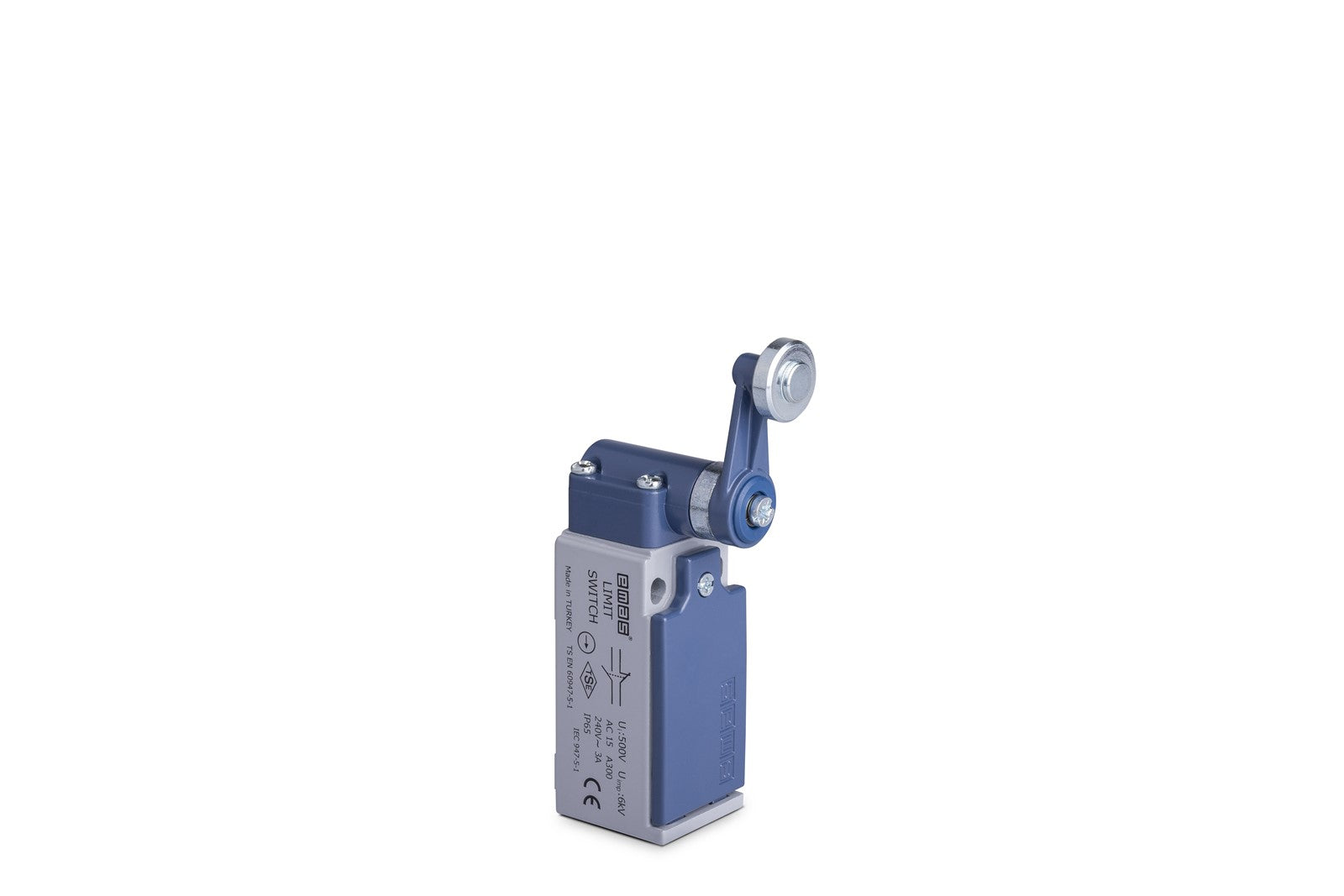

The L51 is built for the environments that eat plastic-bodied switches for breakfast — a full metal body and cover with a 10 million mechanical-cycle rating, IP65 sealing, and an M20 gland entry for a proper cable seal. The metal roller arm gives reliable snap-action detection wherever a moving door, guard, or slide needs positive position sensing.
Commonly used for:
- Door/lid shutoff on kilns and ovens
- Cold room and refrigerator doors
- CNC and motion control
- Machinery including lathes and mills
- Conveyors
Technical Details
Frequently Asked Questions
What does "snap action" mean for this switch?
Snap action means the internal contacts switch quickly and positively once the actuator passes a set trip point, rather than gradually — giving a clean, repeatable signal regardless of how fast or slow the roller arm is moved.
Is the metal body necessary, or would a plastic version do?
If your application involves rough handling, heavy vibration, high-cycle use, or extreme temperatures (kilns, cold rooms), the metal body's 10 million mechanical cycle rating and -25°C to +80°C range make it the more durable choice over a standard plastic-bodied limit switch.
What size cable gland do I need?
It has an M20 gland entry, so use an M20 cable gland matched to your cable diameter for a proper IP65 seal.
Can I use this on a cold room or freezer door?
Yes — with an operating range down to -25°C, it's suited to cold storage and refrigerator door interlocking, which is one of its more common applications.
Industry Applications
- Kilns, ovens & cold storage — door/lid interlocking across extreme temperature ranges
- CNC & machine tools — position sensing on lathes, mills, and motion control systems
- Conveyors & material handling — robust position/limit detection in high-cycle industrial settings
