We manufacture our own control panels in North Wales and have developed a range of wall mount solutions for clients requiring a Novus package.
For a localised display from a sensor, instrument or meter we highly recommend Novus N1500 / N1540.
Standard Specification
- Digital Panel Meter - Novus N1500 / N1540
- Large & Clear LCD Display
- Relay Outputs Linked To Setpoints
- Read Temperature, Pressure, Level Instruments
- Universal Input (Thermocouple, PT100, Analogue)
- Audible/Visual Alarm
- Circuit Protection
- Door Interlocked Isolation
- Accessible Marked Terminals
- Mild Steel Wall Box 300x300x210mm
- 13A or 16A 230V AC Supply
- Supplied Tested, Ready For Install
Optional
- Plug Breaks / Sockets For Sensor
- Communications (RS485)
- Analogue Output (Retransmit PV)
- Stainless Steel or GRP Enclosure
- Datalogging
The Novus controller is essential for reliable and accurate readings. As such it comes with the usual 3 year warranty. There is full technical support provided on the control panel itself. All other components are supplied with a full 12 month warranty. The panel itself has a 12 month ‘Return To Base’ warranty. In the highly unlikely event it suffers from a technical malfunction we will repair or replace.
Please allow 7-10 days for final assembly, testing and delivery. These are typical lead times, please get in touch prior to purchase for our current availability.

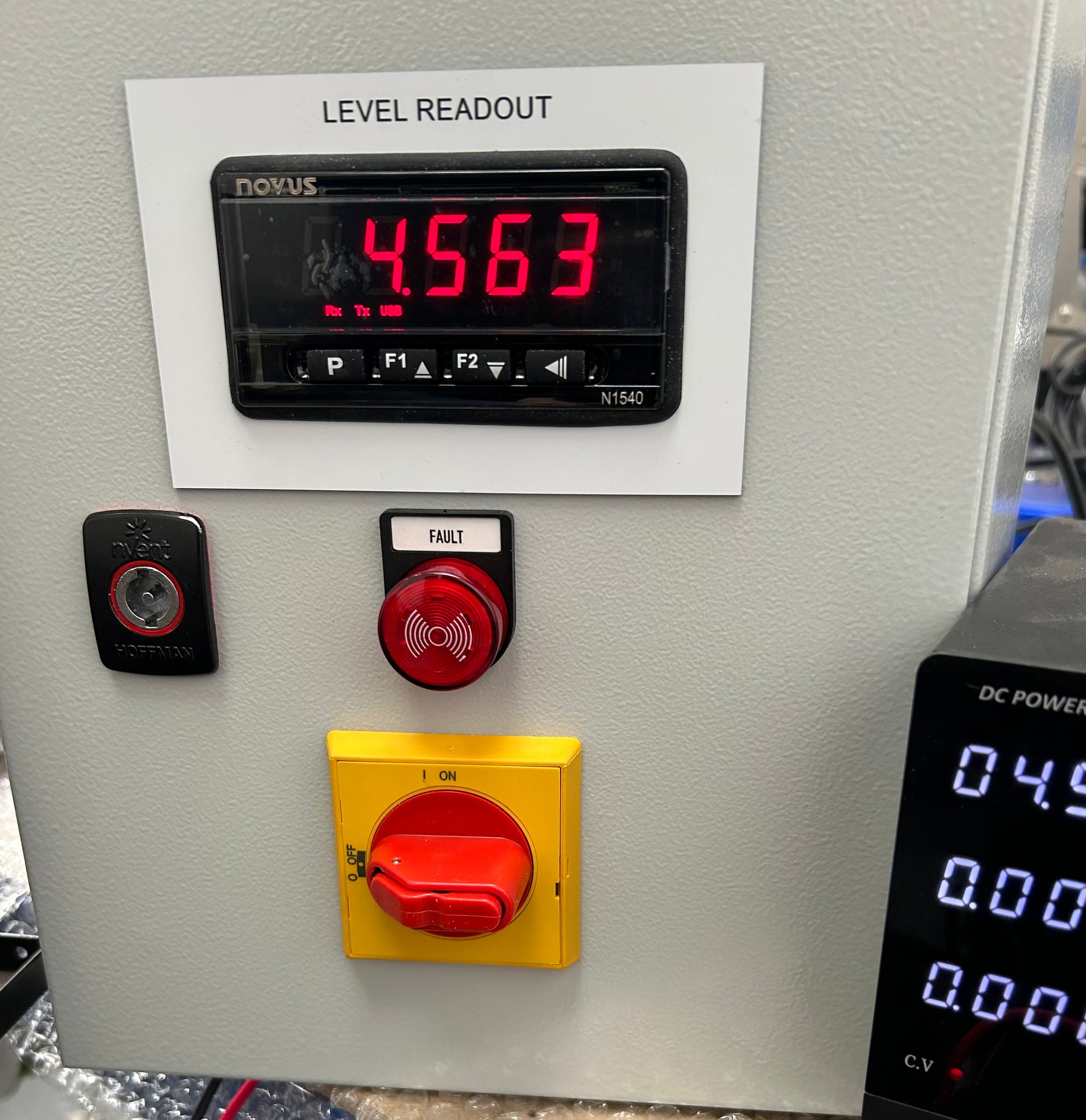

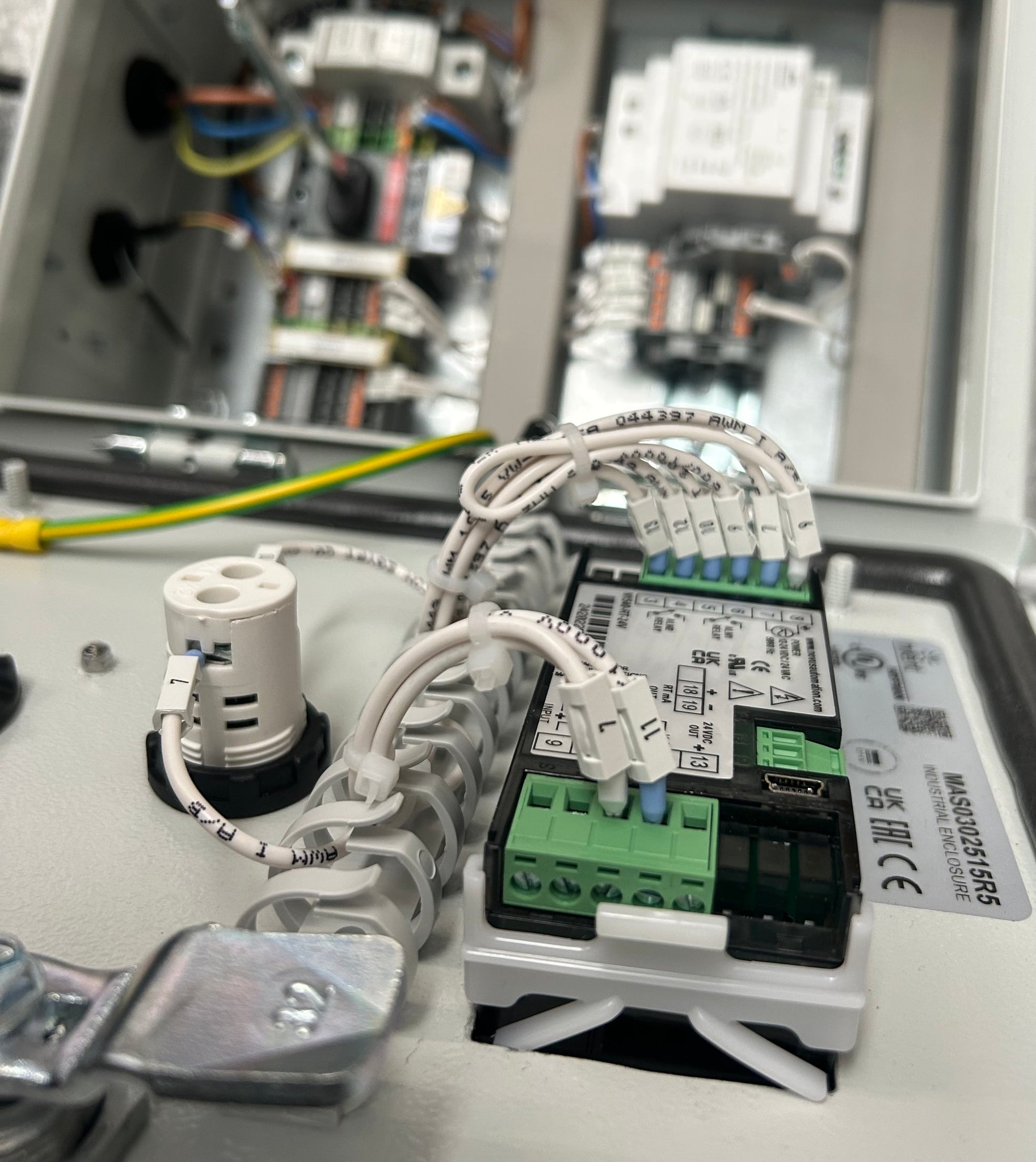

Images are for guidance, we can tailor layout to your requirements.
