CP Series Plastic with LED 100-230V AC Yellow 22 mm Pilot

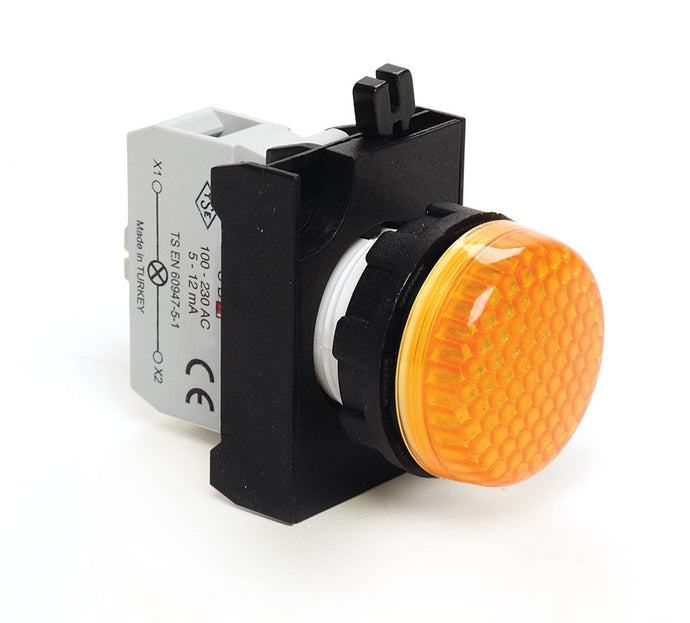

IEC 60204-1 assigns yellow (amber) to "abnormal" — a condition that isn't yet dangerous but signals an imminent or actual change, such as a cycle interruption or an approaching limit. The CP0S0XS is a mains-voltage lamp built for exactly that warning role, wiring straight into 100-230V circuits with no step-down transformer needed. It's priced well below premium-brand equivalents and held in UK stock for fast dispatch.
Technical Details
Frequently Asked Questions
Can I wire this directly to mains voltage?
Yes — this version runs on 100-230V AC directly, so no step-down transformer is needed if your panel circuit is already mains-fed.
What's the difference between this and the 12-30V version?
This is the mains-voltage variant, suited to circuits already switching 100-230V AC. If your control circuit runs on a 24V DC or similar low-voltage supply, use the 12-30V AC/DC version instead — the two aren't interchangeable without a supply change.
Is this suitable for washdown or outdoor panel mounting?
Yes — IP65 rated, protected against dust ingress and low-pressure water jets, suitable for washdown areas.
What does yellow indicate under IEC 60204-1?
IEC 60204-1 Clause 10.3 assigns yellow (amber) to "abnormal" — flagging a condition that's changing or approaching a limit but isn't yet dangerous, sitting between green's "normal" and red's "emergency" in the standard's hierarchy. A typical example the standard cites is an automatic cycle being interrupted. It's a natural fit for warning, standby, or pre-alarm signalling.
Industry Applications
- Manufacturing control panels — warning/standby status indication on mains-switched machine HMIs and control cabinets
- HVAC & pump control panels — pre-alarm or maintenance-due indication
- Packaging & conveyor systems — caution/changeover status indication alongside start/stop pushbuttons
