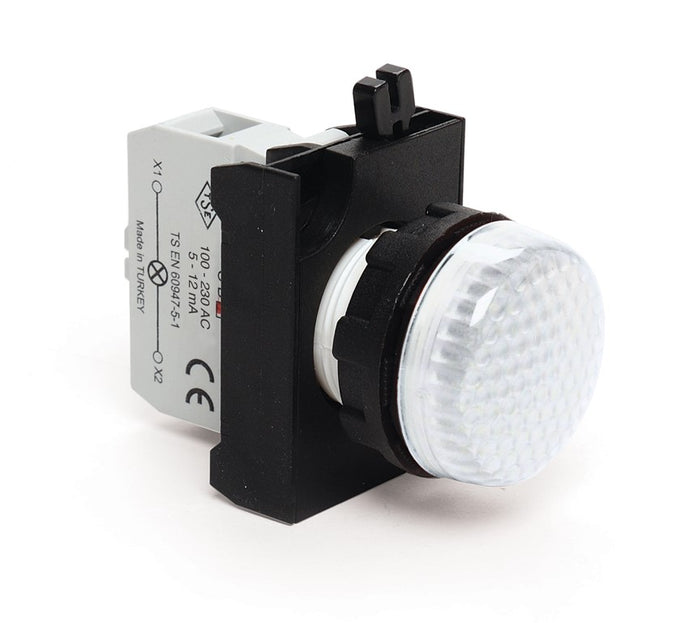

CP Series Plastic with LED 100-230V AC White 22 mm Pilot
Under IEC 60204-1, white is the one indicator colour with no fixed meaning assigned to it — a flexible choice for a bespoke status signal your panel's documentation defines itself, or for confirming a command has been received. The CP0B0XB delivers that in a mains-voltage lamp, wiring straight into 100-230V circuits with no step-down transformer needed. It's priced well below premium-brand equivalents and held in UK stock for fast dispatch.
Technical Details
Frequently Asked Questions
Can I wire this directly to mains voltage?
Yes — this version runs on 100-230V AC directly, so no step-down transformer is needed if your panel circuit is already mains-fed.
What's the difference between this and the 12-30V version?
This is the mains-voltage variant, suited to circuits already switching 100-230V AC. If your control circuit runs on a 24V DC or similar low-voltage supply, use the 12-30V AC/DC version instead — the two aren't interchangeable without a supply change.
Is this suitable for washdown or outdoor panel mounting?
Yes — IP65 rated, protected against dust ingress and low-pressure water jets, suitable for washdown areas.
What does white indicate under IEC 60204-1?
IEC 60204-1 Clause 10.3 leaves white with no specific assigned meaning, unlike red (emergency), yellow (abnormal), green (normal), or blue (mandatory action). In practice this makes it a flexible choice for general status, "power available," or command-confirmation signals — but the standard also requires the machine builder to document whatever convention they've assigned, so confirm against your panel's own colour-coding documentation before specifying.
Industry Applications
- Manufacturing control panels — general power-available or auxiliary status indication on mains-switched HMIs
- HVAC & pump control panels — supply-present indication distinct from run/fault states
- Packaging & conveyor systems — auxiliary or "control power on" indication alongside primary status lamps
