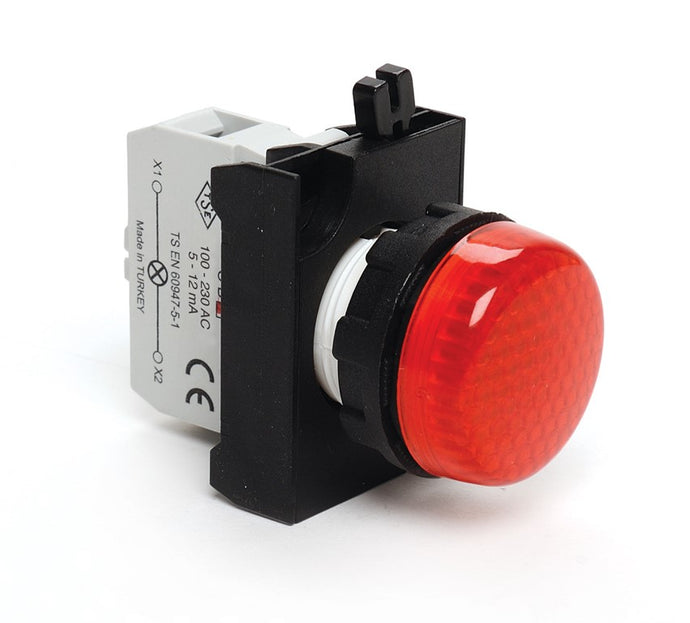

CP Series Plastic with LED 100-230V AC Red 22 mm Pilot
IEC 60204-1 designates red specifically for emergency and dangerous-condition signalling — the highest-priority colour in the standard's hierarchy — which is exactly what the CP0K0XK is built for on fault and stop-status circuits. It's a mains-voltage lamp, wiring straight into 100-230V circuits with no step-down transformer needed. It's priced well below premium-brand equivalents and held in UK stock for fast dispatch.
Technical Details
Frequently Asked Questions
Can I wire this directly to mains voltage?
Yes — this version runs on 100-230V AC directly, so no step-down transformer is needed if your panel circuit is already mains-fed.
What's the difference between this and the 12-30V version?
This is the mains-voltage variant, suited to circuits already switching 100-230V AC. If your control circuit runs on a 24V DC or similar low-voltage supply, use the 12-30V AC/DC version instead — the two aren't interchangeable without a supply change.
Is this suitable for washdown or outdoor panel mounting?
Yes — IP65 rated, protected against dust ingress and low-pressure water jets, suitable for washdown areas.
What does red indicate under IEC 60204-1?
IEC 60204-1 Clause 10.3 assigns red to "emergency" — signalling a dangerous condition that requires an immediate operator response, distinct from yellow's lower-urgency "abnormal" designation. It's the highest-priority indicator colour in the standard, which is why it's the conventional choice for fault, stop, and alarm status. Confirm the assignment against your panel's own documented colour convention, since the standard permits deviation where it's recorded.
Industry Applications
- Manufacturing control panels — fault/stopped status indication on mains-switched machine HMIs and control cabinets
- HVAC & pump control panels — trip or fault indication
- Packaging & conveyor systems — stop/jam status indication alongside start/stop pushbuttons
