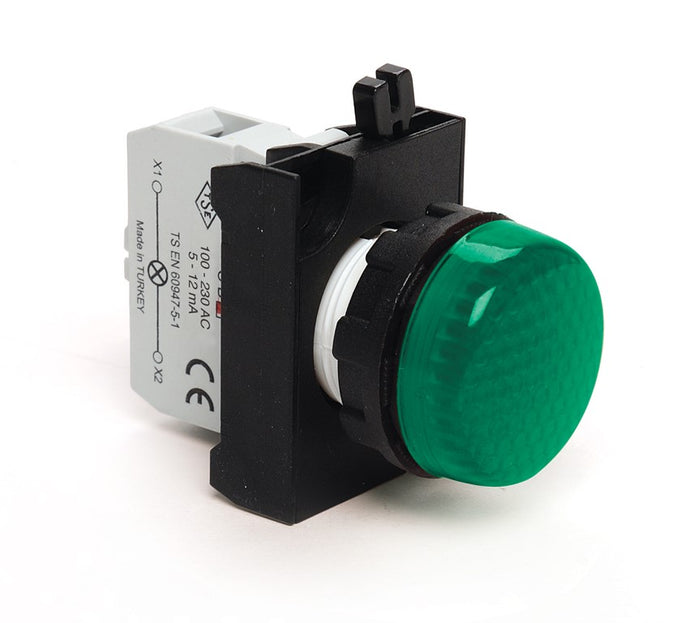

CP Series Plastic with LED 100-230V AC Green 22 mm Pilot
IEC 60204-1 designates green for "normal" — the standard's baseline condition, sitting opposite red's emergency signal — which is exactly the run/ready role the CP0Y0XY is built for. It's a mains-voltage lamp, wiring straight into 100-230V circuits with no step-down transformer needed. It's priced below premium-brand equivalents and held in UK stock for fast dispatch.
Technical Details
Frequently Asked Questions
Can I wire this directly to mains voltage?
Yes — this version runs on 100-230V AC directly, so no step-down transformer is needed if your panel circuit is already mains-fed.
What's the difference between this and the 12-30V version?
This is the mains-voltage variant, suited to circuits already switching 100-230V AC. If your control circuit runs on a 24V DC or similar low-voltage supply, use the 12-30V AC/DC version instead — the two aren't interchangeable without a supply change.
Is this suitable for washdown or outdoor panel mounting?
Yes — IP65 rated, protected against dust ingress and low-pressure water jets, suitable for washdown areas.
What does green indicate under IEC 60204-1?
IEC 60204-1 Clause 10.3 assigns green to "normal" — confirming the machine or process is operating as expected, the standard's baseline opposite red's emergency signal. That's the near-universal "run/ready" convention across most industries, though a small number of legacy sectors (notably some power and utility installations) historically used red for "running" instead — worth confirming against your site's documented colour scheme before large-scale panel rollout.
Industry Applications
- Manufacturing control panels — run/ready status indication on mains-switched machine HMIs and control cabinets
- HVAC & pump control panels — power-on or system-active indication
- Packaging & conveyor systems — cycle-status indication alongside start/stop pushbuttons
