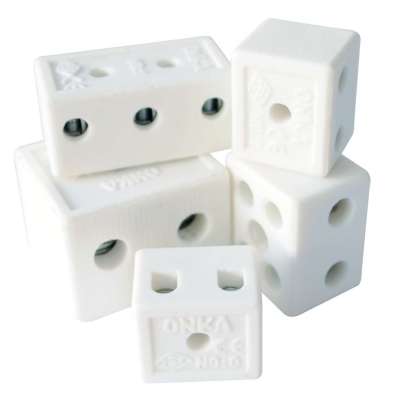

High Temperature Screw Terminals 3 Way
Suitable for heating and lighting applications where high temperatures can degrade standard insulating materials.
Steatite offers superior performance vs. standard ceramic connectors which are often limited to 300C.
- 32A Rated
- 3 x Screw Terminals
- 2 x Centre Mounting Hole
- CE Marked
- Available In Bulk Boxes (100 pieces)
Old Onka part no. 5083

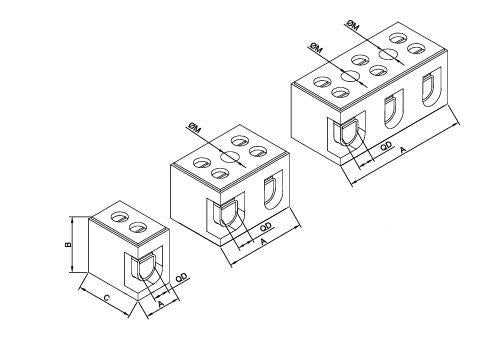

Dimensions (mm)
Pole 3
A (mm) 36
B (mm) 17
C (mm) 19
DØ (mm) 3.6
MØ (mm) 4.3
Pcs/ Box 100
Materials
Isolation Material Steatite
Contact CK45 Steel
Working Temperature Max. 1100 °C
Connection Type Screw / Steel
Norm EN-60998-2-1
