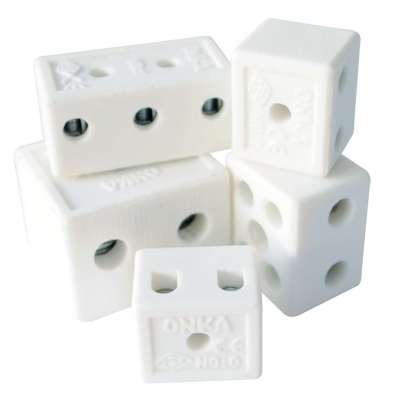

High Temperature Screw Terminals 2 Way
Suitable for heating and lighting applications where high temperatures can degrade standard insulating materials.
Steatite offers superior performance vs. standard ceramic connectors which are often limited to 300C.
- 32A Rated
- 2 x Screw Terminals
- 1 x Centre Mounting Hole
- CE Marked
- Available In Bulk Boxes (150 pieces)
Old Onka part no. 5082

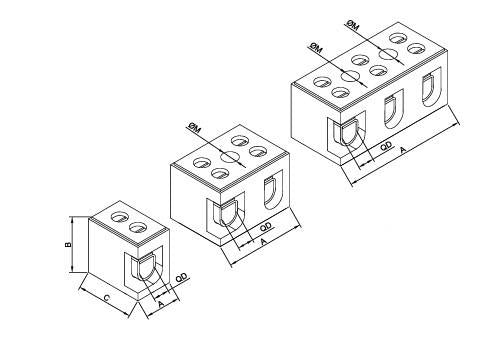

Dimensions (mm)
Pole 2
A (mm) 22.5
B (mm) 17
C (mm) 19
DØ (mm) 3.6
MØ (mm) 4.3
Pcs/ Box 150
Materials
Isolation Material Steatite
Contact CK45 Steel
Working Temperature Max. 1100 °C
Connection Type Screw / Steel
Norm EN-60998-2-1
