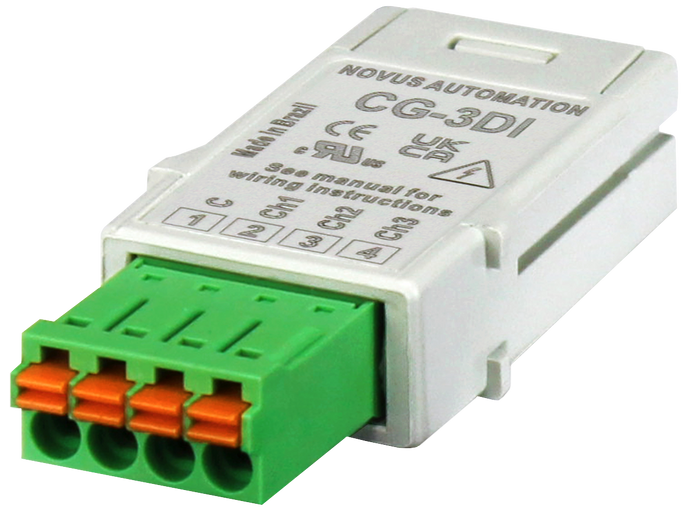

The CG-3DI ClickNGo module clips into the N20K48 Docker Interface (sold separately) and adds three digital inputs, configurable as PNP/NPN or dry contact. Each input can be independently set to run enable, manual control, ramp and soak start (Prg 1), ramp and soak stop, or trigger timer.
Please remember to purchase the N20K48 Docker Interface, which is required to fit ClickNGo modules to the N20K48 controller.
Technical Details
MPN: 820KCG13DI. Slots used on docker: 1
Inputs: 3 x digital, configurable as PNP/NPN or dry contact
Configurable per input as: run enable, manual control, ramp and soak start (Prg 1), ramp and soak stop, or trigger timer
Frequently Asked Questions
Do I need the Docker to use this module?
Yes — the Docker Interface clips to the rear of the N20K48 and provides the slots the ClickNGo modules fit into.
Can I use PNP or NPN sensors with this module?
Yes — each input is configurable for PNP, NPN, or simple dry-contact switching.
What other ClickNGo modules are available?
See our N20K48 Docker Interface listing for the full range of compatible modules.
Industry Applications
- Remote Start/Stop Control — run enable and manual control inputs for external switching.
- Ramp & Soak Sequencing — trigger program start/stop from external contacts or sensors.
- Timer-Triggered Processes — external input can start a configured timer function.
