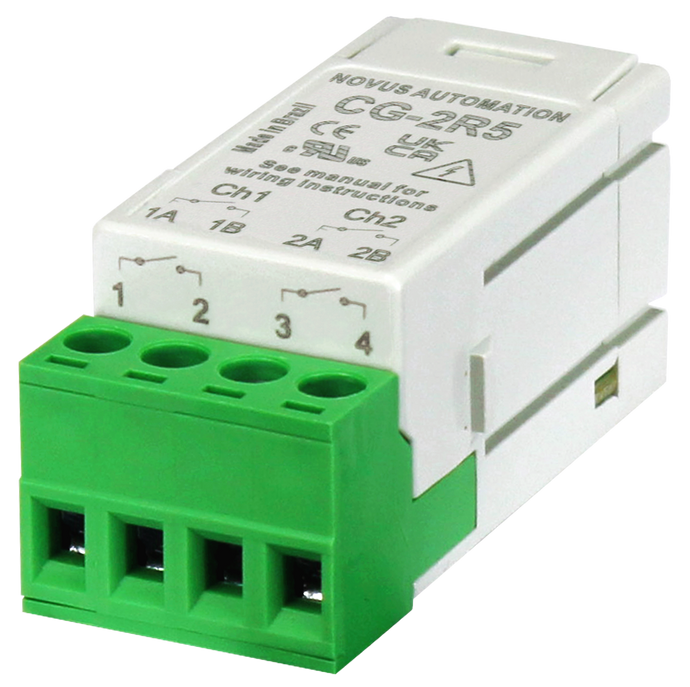

The CG-2R5 ClickNGo module clips into the N20K48 Docker Interface (sold separately) and adds two additional 5A relay contacts for alarm, signalling, or control. Each relay contact can be independently configured as a control output, alarm output, timer output, or Modbus coil.
Please remember to purchase the N20K48 Docker Interface, which is required to fit ClickNGo modules to the N20K48 controller.
Technical Details
MPN: 820KCG12R5. Slots used on docker: 2
Contacts: 2 x N.O. relay, 5A
Configurable per contact as: control output, alarm output, timer output, or Modbus coil
Frequently Asked Questions
Do I need the Docker to use this module?
Yes — the Docker Interface clips to the rear of the N20K48 and provides the slots the ClickNGo modules fit into.
How many slots does this module use?
2 of the 8 available slots on the Docker.
What other ClickNGo modules are available?
See our N20K48 Docker Interface listing for the full range of compatible modules.
Industry Applications
- Alarm & Signalling — extra relay contacts for status indication or external alarms.
- Custom I/O Configurations — expands relay capacity on modular N20K48 builds.
- SCADA Integration — configurable as Modbus coils for remote monitoring/control.
