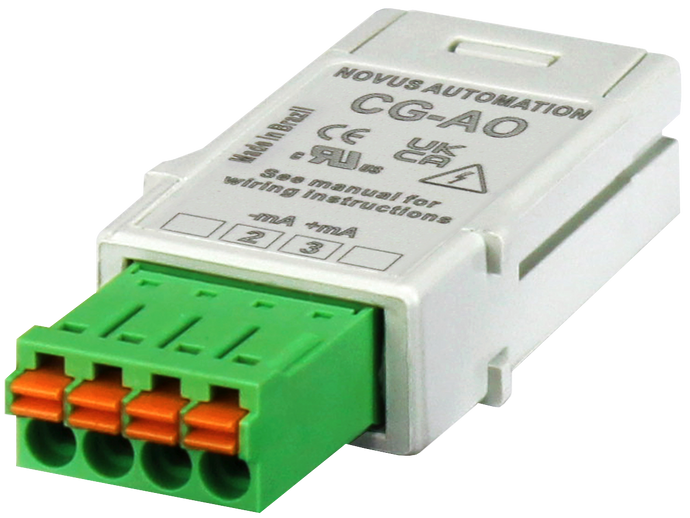

The CG-AO ClickNGo module clips into the N20K48 Docker Interface (sold separately) and adds an analogue output (0-20mA/4-20mA), configurable as an additional control output, or for retransmission of setpoint or process value to a PLC or SCADA system.
Please remember to purchase the N20K48 Docker Interface, which is required to fit ClickNGo modules to the N20K48 controller.
Technical Details
MPN: 820KCG11AO. Slots used on docker: 1
Output: 1 x analogue, 0-20mA or 4-20mA
Configurable as: additional analogue control output, setpoint retransmission, or process value retransmission
Frequently Asked Questions
Do I need the Docker to use this module?
Yes — the Docker Interface clips to the rear of the N20K48 and provides the slots the ClickNGo modules fit into.
Can I retransmit the process value to a PLC?
Yes — the module can be configured to retransmit process value or setpoint as a 0-20mA/4-20mA signal.
What other ClickNGo modules are available?
See our N20K48 Docker Interface listing for the full range of compatible modules.
Industry Applications
- PLC/SCADA Retransmission — feeds process value or setpoint to a PLC analogue input.
- Cascade Control — additional analogue output for driving a secondary control loop.
- Panel Displays — retransmitted signal can drive an external analogue meter or display.
