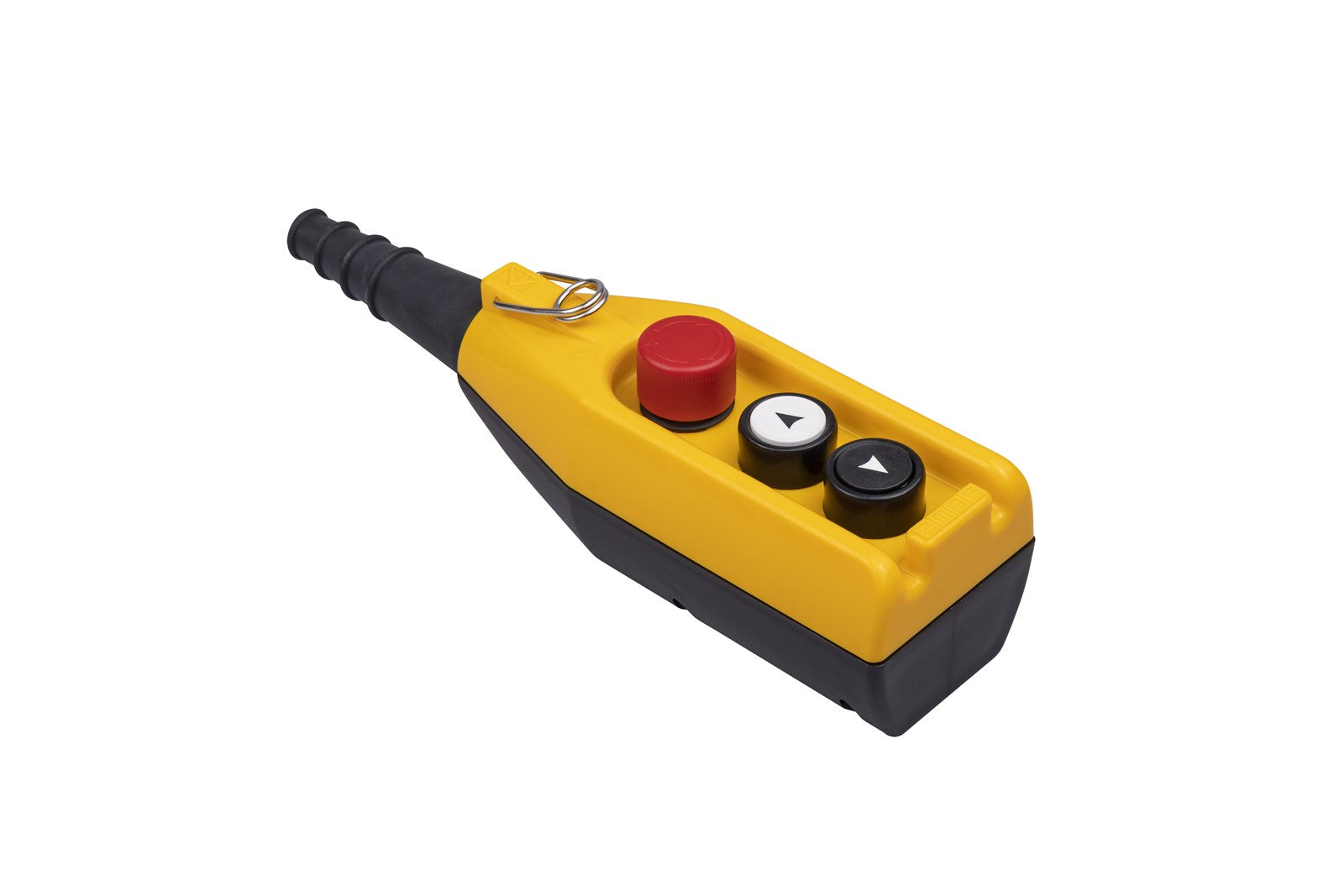

PV Series 3 Hole Single Speed 1NC Emergency Stop Crane Pendant Station
Strong, ergonomic and lightweight handheld enclosure.
Single speed setting on each pushbutton can be achieved e.g. up and down.
Suitable for motorised lifting applications requiring forwards, backwards and stop. Can also be utilised for general machinery and motor control.
Contain 2 x N.O. pushbuttons and 1 x N.C. emergency stop (30mm).
Complete with hanging hook, cable support and internal cable clamp.
Product
Crane Pendant Station
Type
3 Hole
Contact
1NC
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 900 Elec. 900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PV Series
Speed
Single Speed
1.Hole
Emergency Stop
