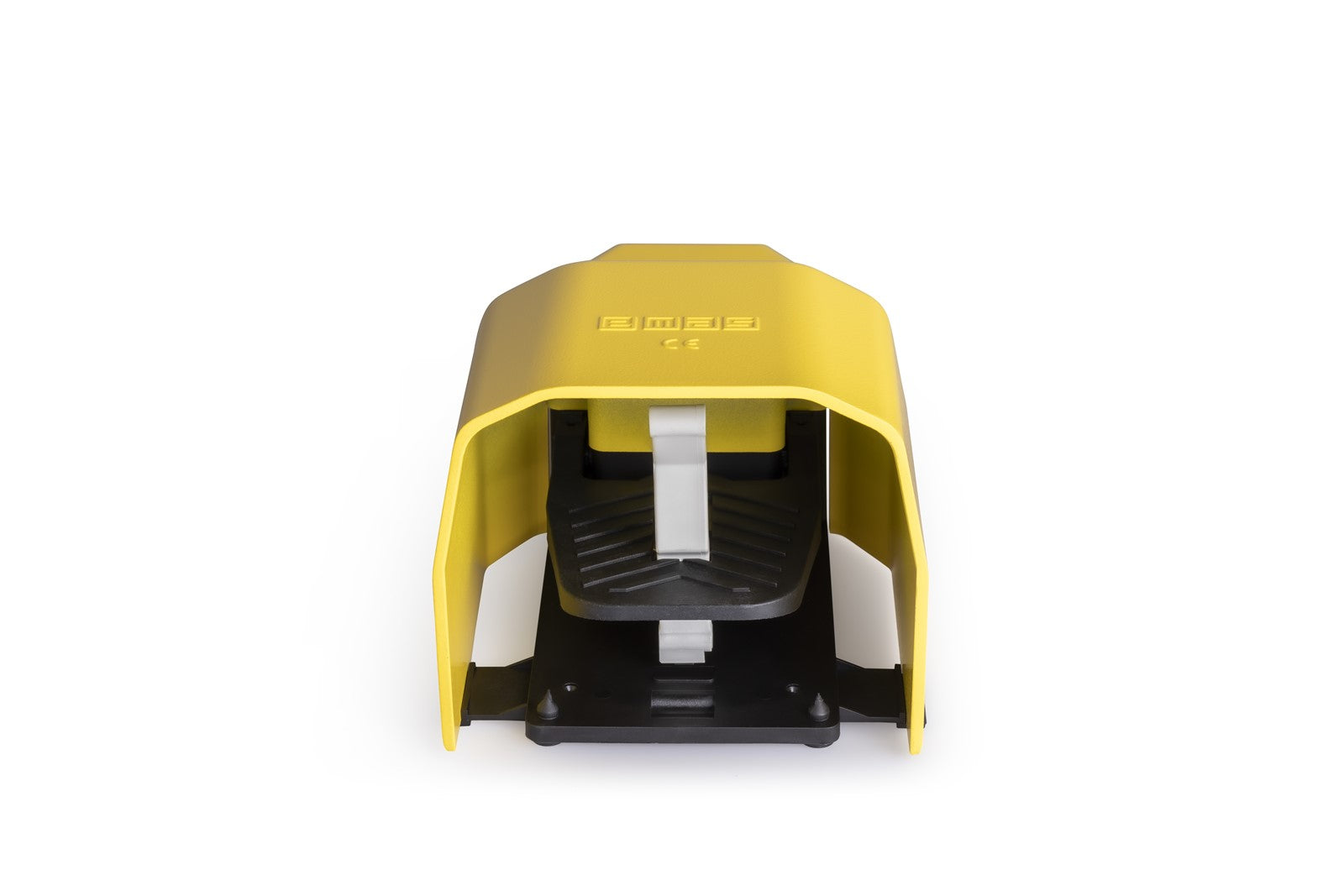

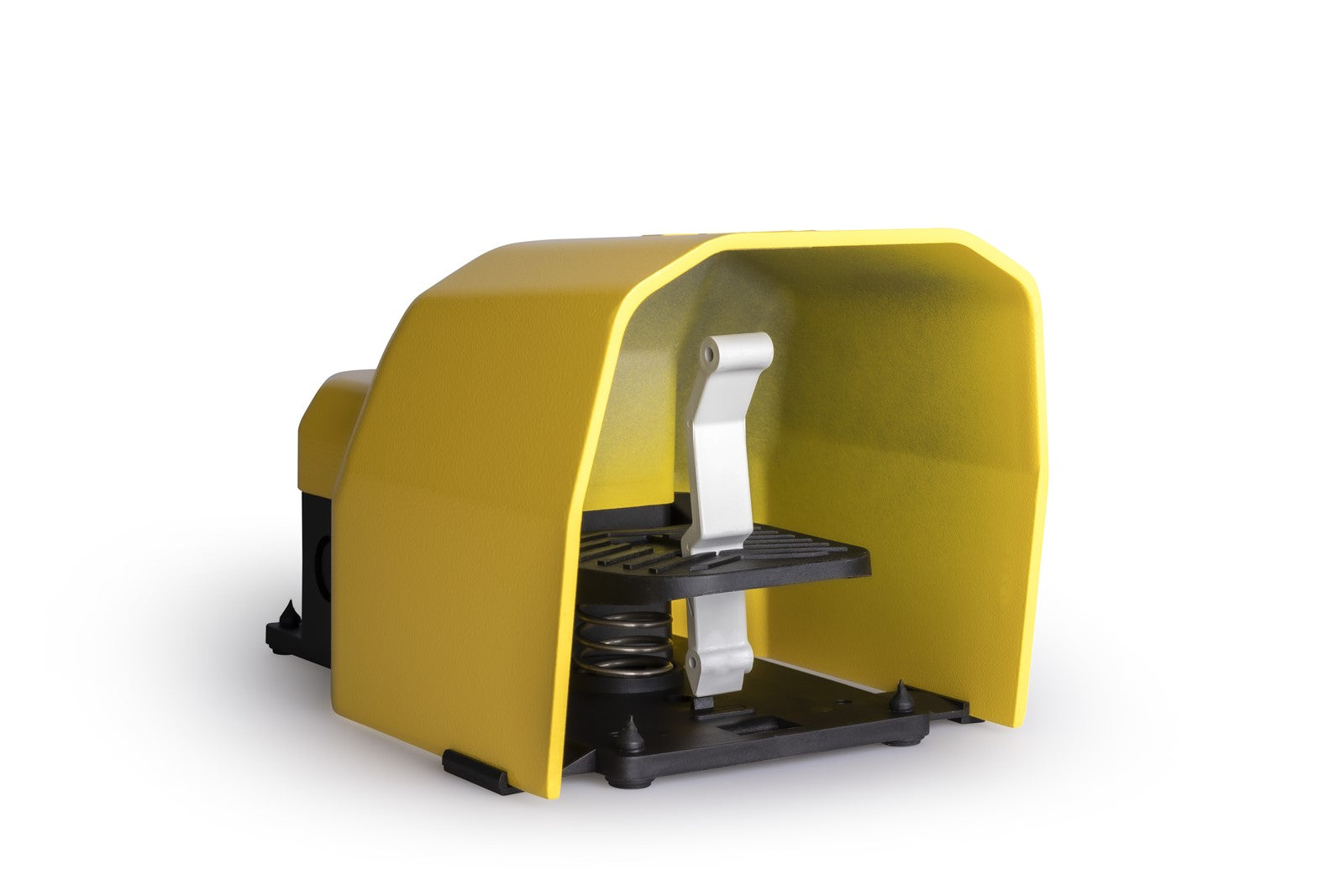

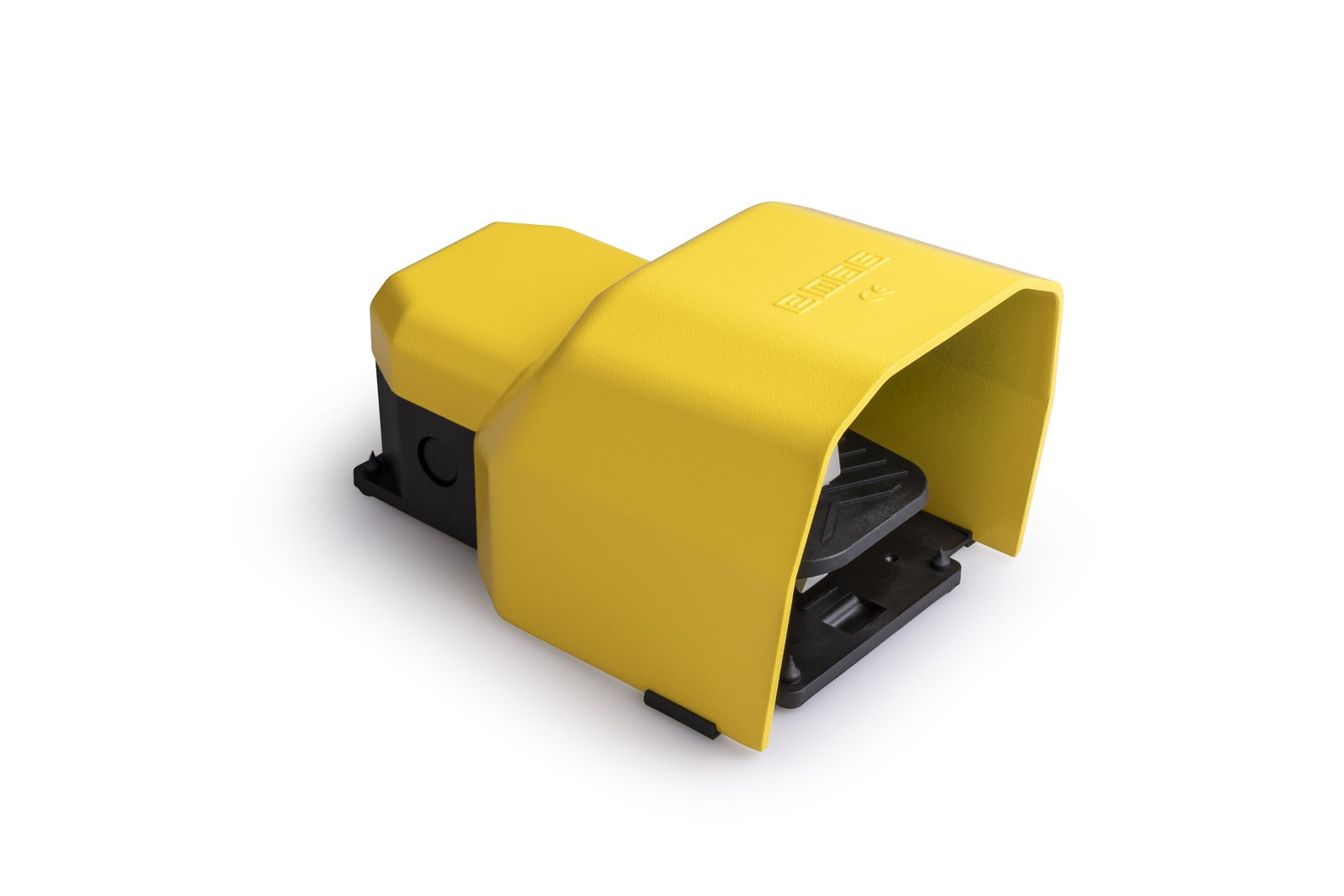

PDK Series Metal Protection 1NO+1NC Single Yellow Plastic Foot Switch
A high quality footswitch with momentary operation. Good ingress protection and a robust design makes this EMAS footswitch suitable for production environments.
The metal guard prevents accidental operation and damage. Versatile wiring with both normally open and normally closed contacts provided.
Suitable for replacement/upgrade or new installation.
Product
Foot Switch
Feature
Single
Contact
1NO+1NC
Color
Yellow
Protection
Metal Protection
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1800 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Body Material
Plastic
Serial
PDK Series
