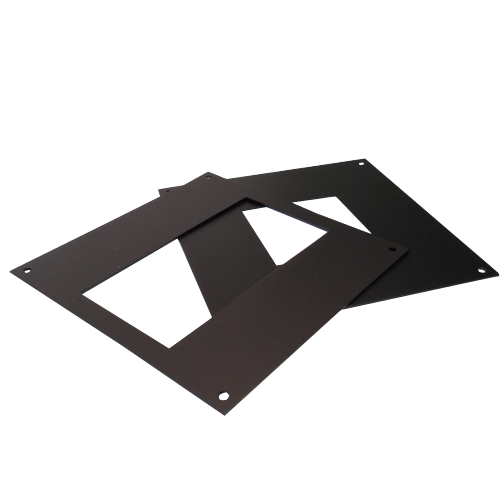

Take the hassle out of upgrading or replacing an existing controller or indicator. These universal adaptors provide a neat cutout ready to accept common sizes of controllers, indicators, and other DIN-sized instruments — 4 pre-drilled fixing points for simple installation, in a steel plate with matt black finish.
2 sizes are available:
Size 1 provides a 48 x 48mm cutout. The adaptor covers up an existing 1/4 DIN cutout and allows easy fitting of the N1030, N1040, N1050, N1200, and N20K48 range of PID controllers (1/16 DIN). Can be used with other devices and manufacturers using the 1/16 DIN standard.
Size 2 provides a 48 x 96mm cutout. The adaptor covers up an existing 1/4 DIN cutout and allows easy fitting of the N1500 range of indicators (1/8 DIN). Can be used with other devices and manufacturers using the 1/8 DIN standard.
Technical Details
Material: steel plate, matt black finish
Fixing: 4 pre-drilled fixing points
Size 1 (1/16 DIN): 48 x 48mm cutout, covers a 1/4 DIN opening
Size 2 (1/8 DIN): 48 x 96mm cutout, covers a 1/4 DIN opening
Frequently Asked Questions
Will this fit controllers from other manufacturers?
Yes — both sizes follow standard DIN cutout dimensions (1/16 DIN and 1/8 DIN), so they work with any device using those standards, not just Novus products.
What existing cutout size does this cover?
Both sizes are designed to cover up an existing 1/4 DIN cutout, letting you fit a smaller modern controller into an older, larger panel opening.
How is it fitted?
4 pre-drilled fixing points make installation straightforward — no additional drilling required.
Industry Applications
- Panel Upgrades & Retrofits — fits modern compact controllers into older 1/4 DIN panel cutouts.
- Cross-Brand Replacements — standard DIN sizing works with controllers from other manufacturers.
- Panel Building — clean, professional finish for mixed-size instrument panels.
