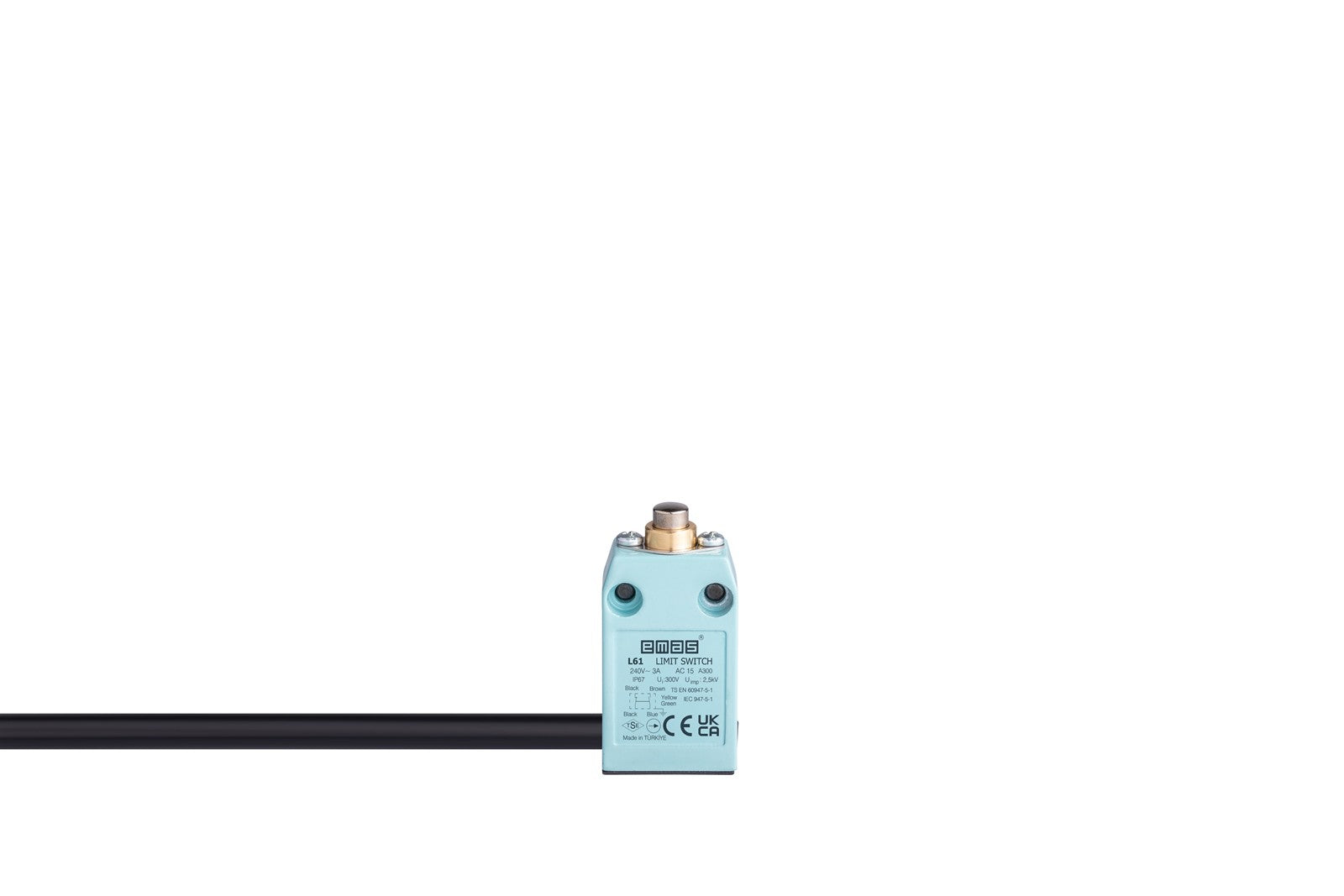

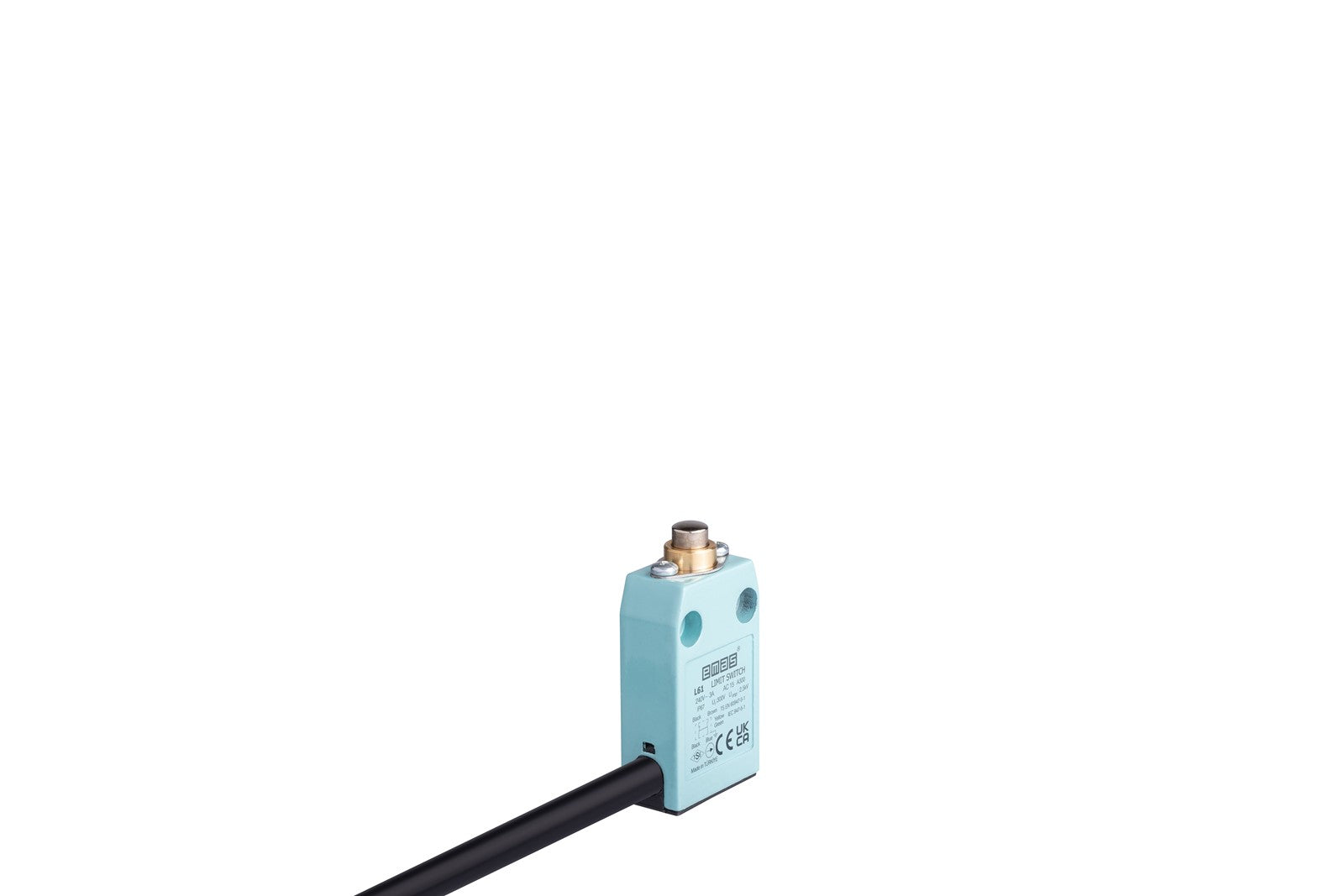

The EMAS L61K13PUM211 is a metal-body limit switch with an 8mm metal plunger, rated IP67 and supplied pre-wired with a 2m cable. The plunger is operated by straight-line travel, so it suits guards, slides and stops that move directly onto the switch. For a target that approaches from the side or runs across the switch, the roller plunger L61K13MUM331 is the better choice.
- 8mm metal plunger, in-line actuation
- 1NO+1NC snap-action contacts
- IP67 metal body, pre-wired 2m cable
- 10 million mechanical operations
Compare The EMAS L51 & L61 Range
L51 series - IP65, screw terminals with PG13.5 / M20x1.5 gland entry:
- L51K13PUM211 (10mm metal plunger)
- L51K13MIM311 (14mm metal roller lever)
- L51K13MEM121 (18mm metal roller arm)
- L51K13MEL121 (50mm rubber roller arm)
- L51K13ROP101 (9mm plastic rod lever)
- L51K13SOM101 (2mm metal spike spring lever)
- L51K13SOM102 (7mm metal blunt spring lever)
L61 series - IP67, supplied pre-wired with 2m cable:
- L61K13PUM211 (8mm metal plunger) (this item)
- L61K13MUM331 (13mm metal roller plunger)
- L61K13MEM121 (18mm metal roller arm)
- L61K13MEP121 (18mm plastic roller arm)
Not sure which series to choose? See the L51 vs L61 comparison in our Foot, Limit & Micro Switches collection.

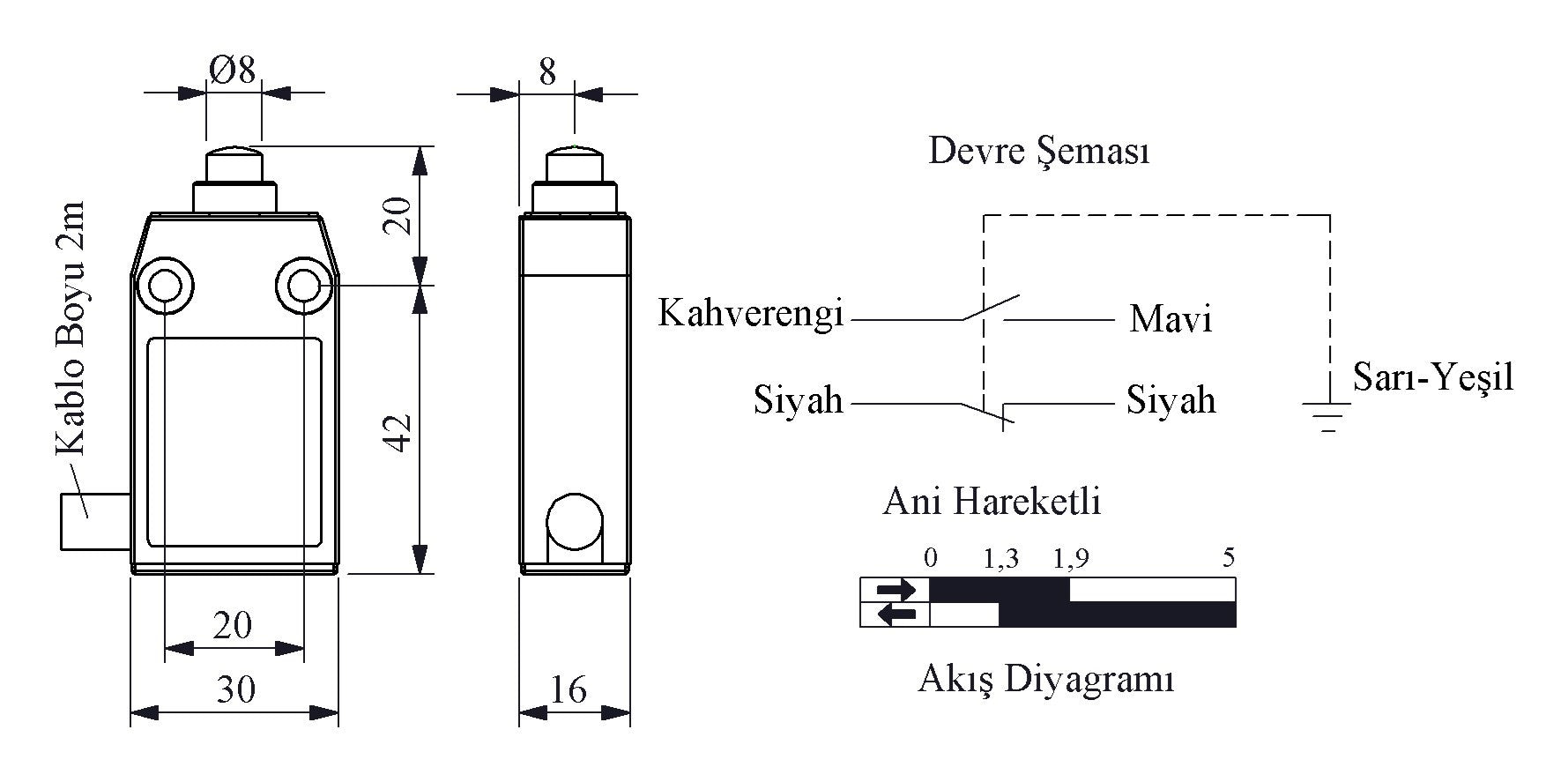

Technical Details
Frequently Asked Questions
Should I choose the plunger or the roller plunger?
The plain plunger (L61K13PUM211) is for parts that press directly onto the end of the switch. The roller plunger (L61K13MUM331) has a roller on the tip, so it can be operated by a cam or by a part moving across the switch.
How does this compare to the L51K13PUM211?
Both are metal-body plunger switches with 1NO+1NC snap-action contacts. The L61K13PUM211 is IP67 and supplied pre-wired with a 2m cable; the L51K13PUM211 is IP65 and is wired to internal screw terminals through a cable gland.
Does it come with cable?
Yes. It is supplied pre-wired with 2 metres of cable, ready to connect into a junction box or control panel.
Is it suitable for wash-down or outdoor use?
Yes. IP67 protects against dust ingress and temporary immersion in water, with an operating range of -25 to +80 °C.
Industry Applications
- Machine guards and doors — closed-position detection where the guard presses directly onto the switch
- Linear slides and cylinders — end-of-travel detection on in-line movements
- Wash-down and outdoor equipment — IP67 sealing with no field wiring at the switch
