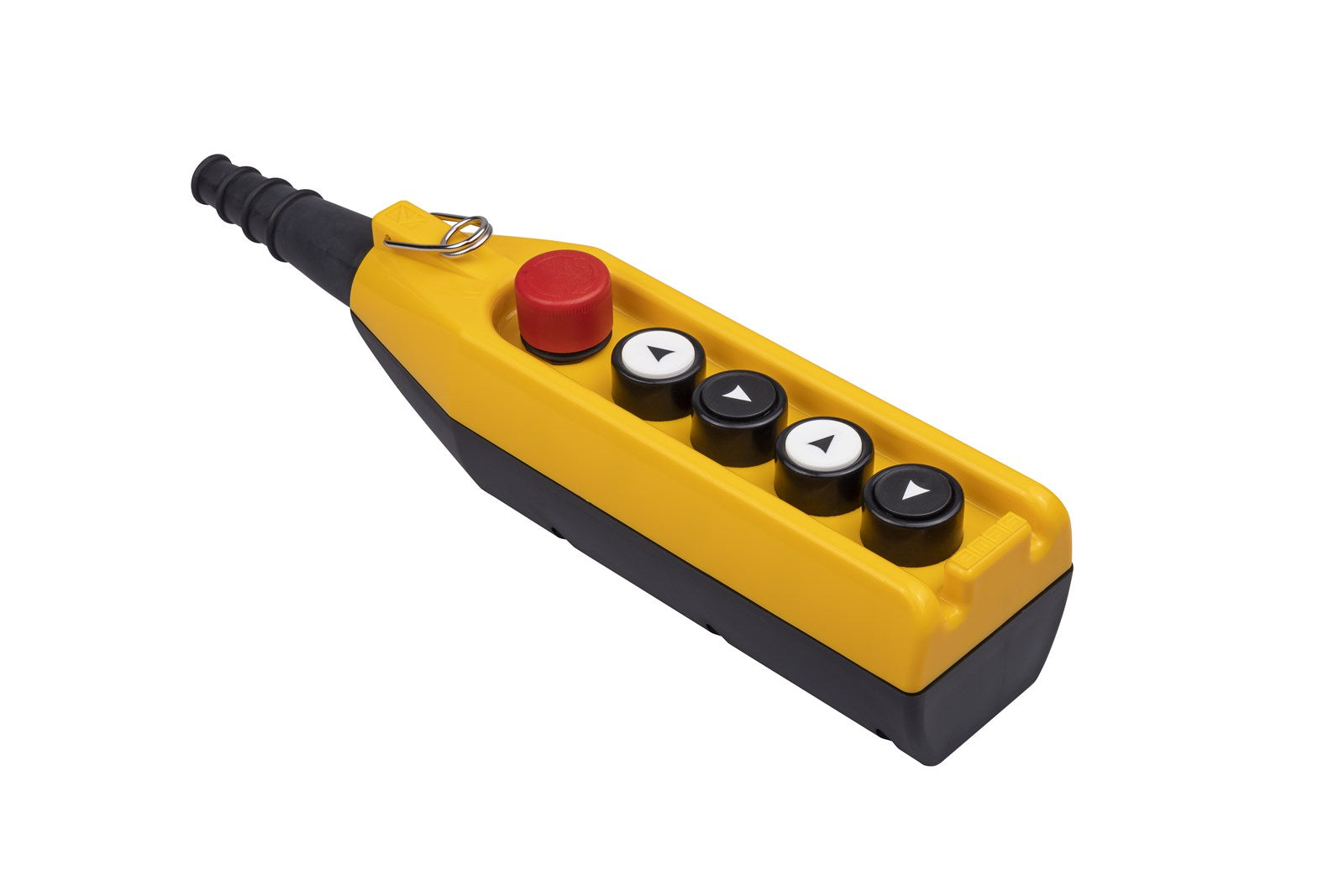

PV Series 5 Hole Single Speed 1NC Emergency Stop Crane Pendant Station
The PV5E30B22 is the single-speed 5-hole crane pendant, giving you two independent motion axes in one handheld station - for example hoist up/down plus trolley left/right - alongside a 30mm emergency stop. Where the 3-hole PV3E30B2/PV3E30B4 pendants control a single motion axis, this 5-hole version lets one operator run two separate motors from the same pendant. If you need jog and full-speed control on each direction, see the double-speed PV5E30B44.
Strong, ergonomic and lightweight handheld enclosure in ABS reinforced material, with mechanical interlock.
Single speed on each of the 4 pushbuttons - press to run, release to stop - across two separate motion axes.
Suitable for motorised lifting applications requiring two-axis movement (e.g. hoist + traverse) plus stop. Can also be utilised for general machinery and motor control.

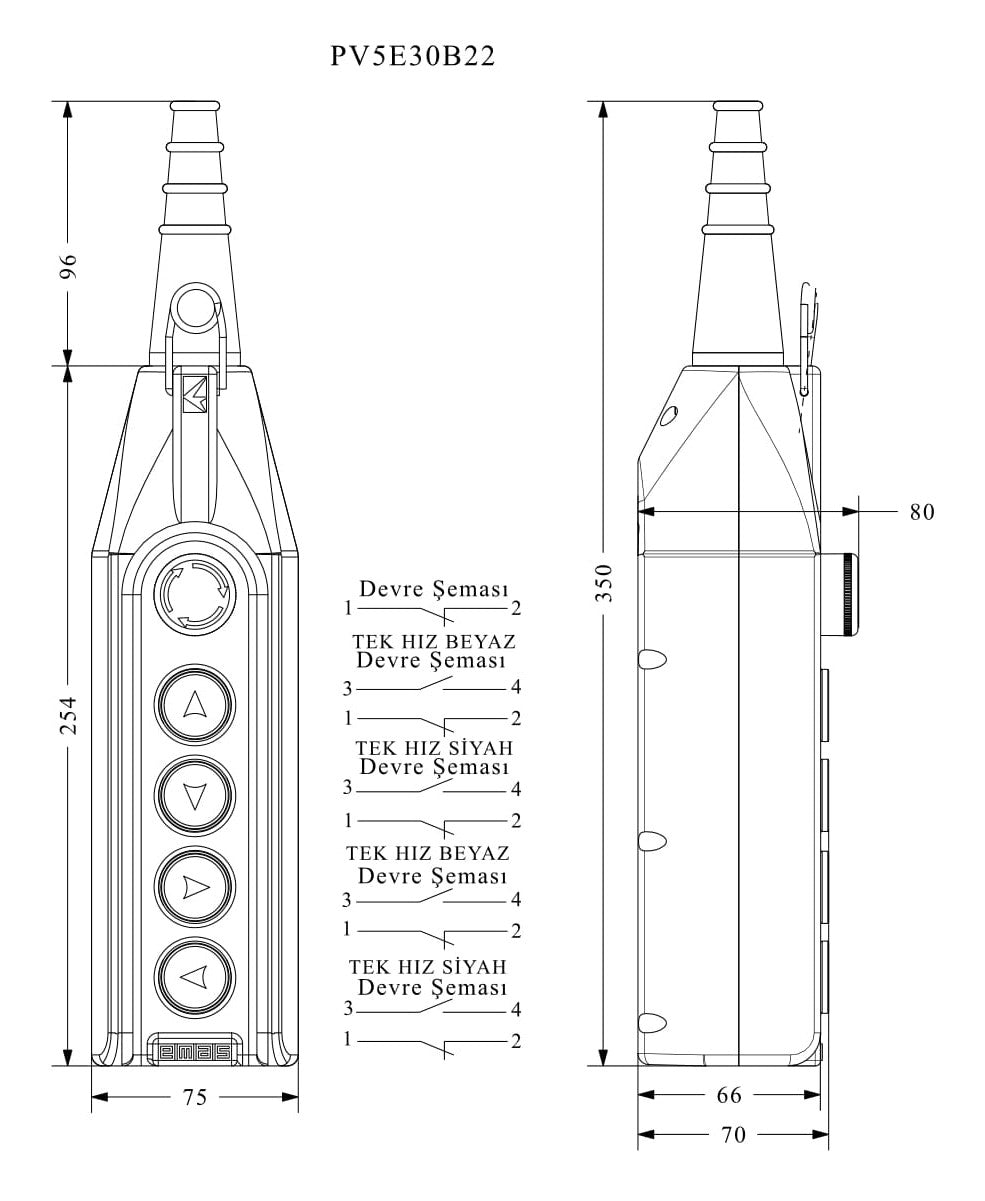

Contains 4 x N.O. pushbuttons and 1 x N.C. emergency stop (30mm).
Complete with hanging hook, cable support and internal cable clamp.
Technical Details
Frequently Asked Questions
What's the difference between this and the PV5E30B44?
The two share the same 5-hole body, 30mm emergency stop and four direction buttons. On this PV5E30B22 each button has a single position - press to run, release to stop. The double-speed PV5E30B44 has two-stage buttons, with a light press for jog/slow speed and a firmer press for full speed. Choose single speed for fixed-speed hoists and trolleys, and double speed where you need jog and full-speed control.
What's the difference between this and the PV3E30B2 / PV3E30B4?
The 3-hole PV3E30B2 and PV3E30B4 have 2 direction buttons and control a single motion axis (one motor, forward/back). This PV5E30B22 has 4 direction buttons, giving you two independent motion axes from one pendant - for example hoist up/down plus trolley left/right - alongside the same emergency stop.
What contact configuration does the e-stop give me?
A single N.C. contact, suitable for a basic Category 1 stop function with a single-channel safety relay.
Is this suitable for outdoor or washdown use?
Yes - IP65 rated, protected against dust ingress and low-pressure water jets.
Does it come ready to hang, or do I need extra mounting hardware?
It's complete with a hanging hook, cable support, and internal cable clamp, so it's ready to suspend from your crane or hoist system straight away.
Industry Applications
- Cranes & hoists - two-axis pendant control (e.g. hoist + trolley) at fixed speed from one handheld station
- Workshop & light lifting equipment - simple forward/backward/stop control of two motors from a single pendant
- Panel builders & OEMs - pre-assembled pendant saving component sourcing and build time on two-axis lifting systems
