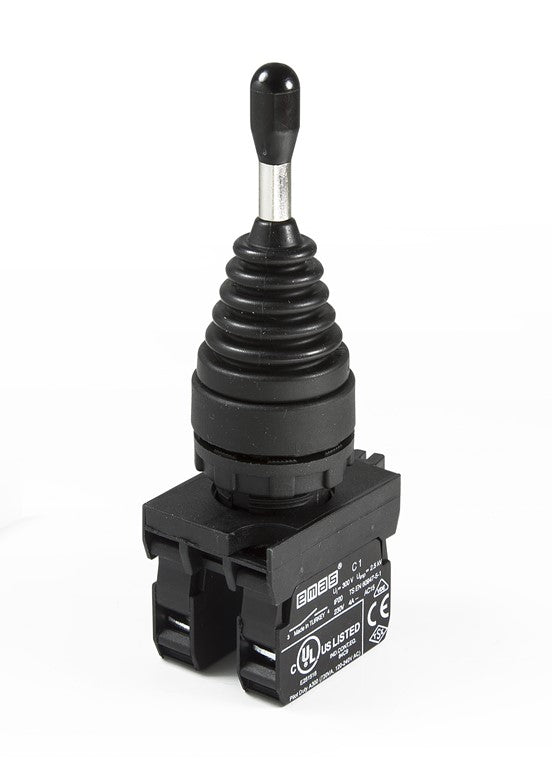

CP Series Plastic 1NO+1NO Joystick Spring Return 2 Positions 22 mm Control Unit
For control of 2-axis, up/down or left/right, with momentary operation — the CP101DJ21's lever springs back to centre-off the moment you release it, giving safe, jog-style directional control. Fits a standard 22mm diameter cutout with simple screw terminal wiring. It's priced well below premium-brand equivalents and held in UK stock for fast dispatch.

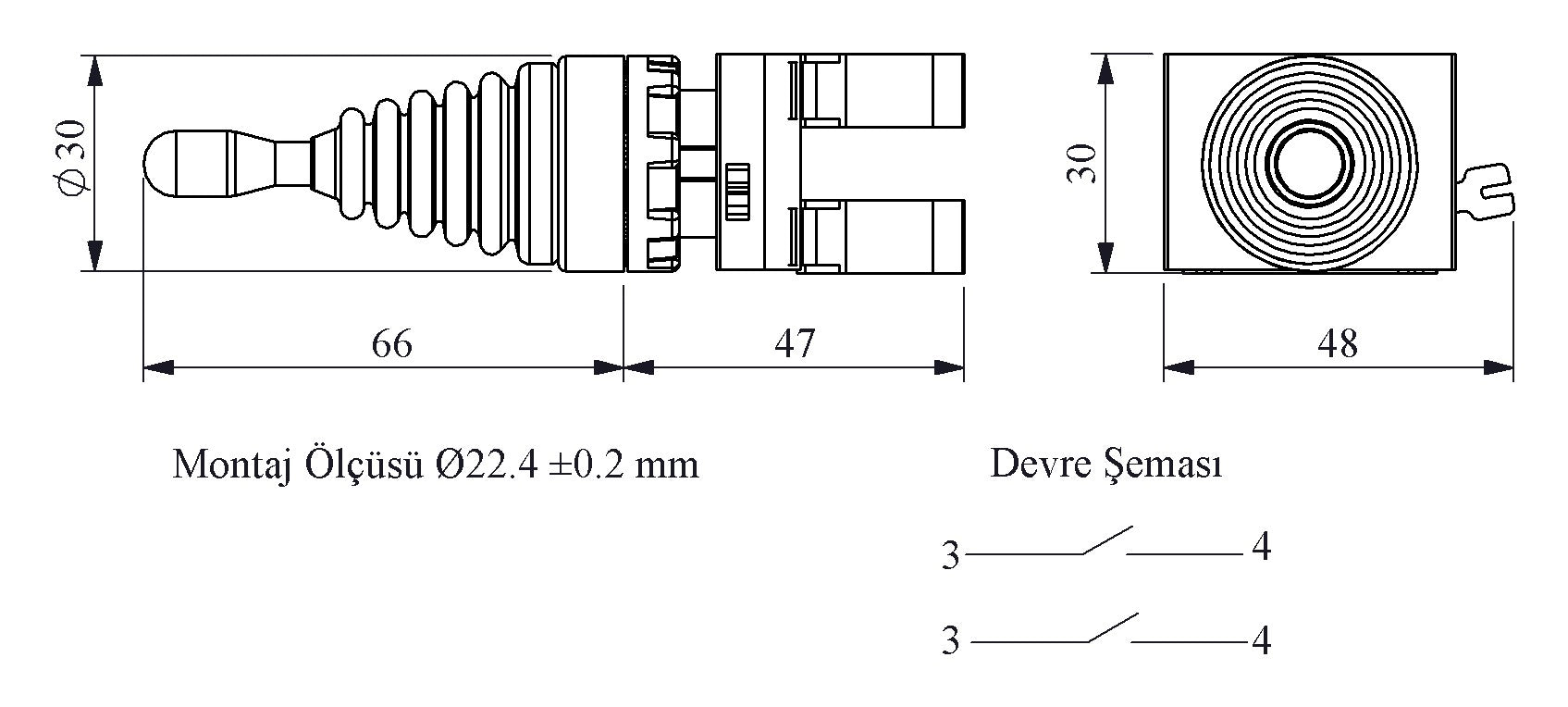

Technical Details
Frequently Asked Questions
What does "spring return, 2 positions" mean?
The lever operates on one axis (2 directions, e.g. up/down or left/right) and springs back to centre-off whenever you release it — so it only actuates while you're actively holding it over.
Can this control 4-axis movement instead?
No — this is the 2-position (single-axis) version. For 4-axis (up/down and left/right) control, use the CP707DJ41 spring-return joystick instead.
What contact configuration does it give me?
1NO+1NO — one normally-open contact per direction, so each direction of travel can be wired to a separate output.
Is it suitable for washdown or outdoor equipment?
Yes — IP65 rated, protected against dust ingress and low-pressure water jets.
Industry Applications
- Cranes & hoists — momentary directional control that self-centres when released for safety
- Machine tools & presses — manual jog control on production and press equipment
- Mobility equipment & actuators — directional control for wheelchairs, mobility devices, and linear actuators
