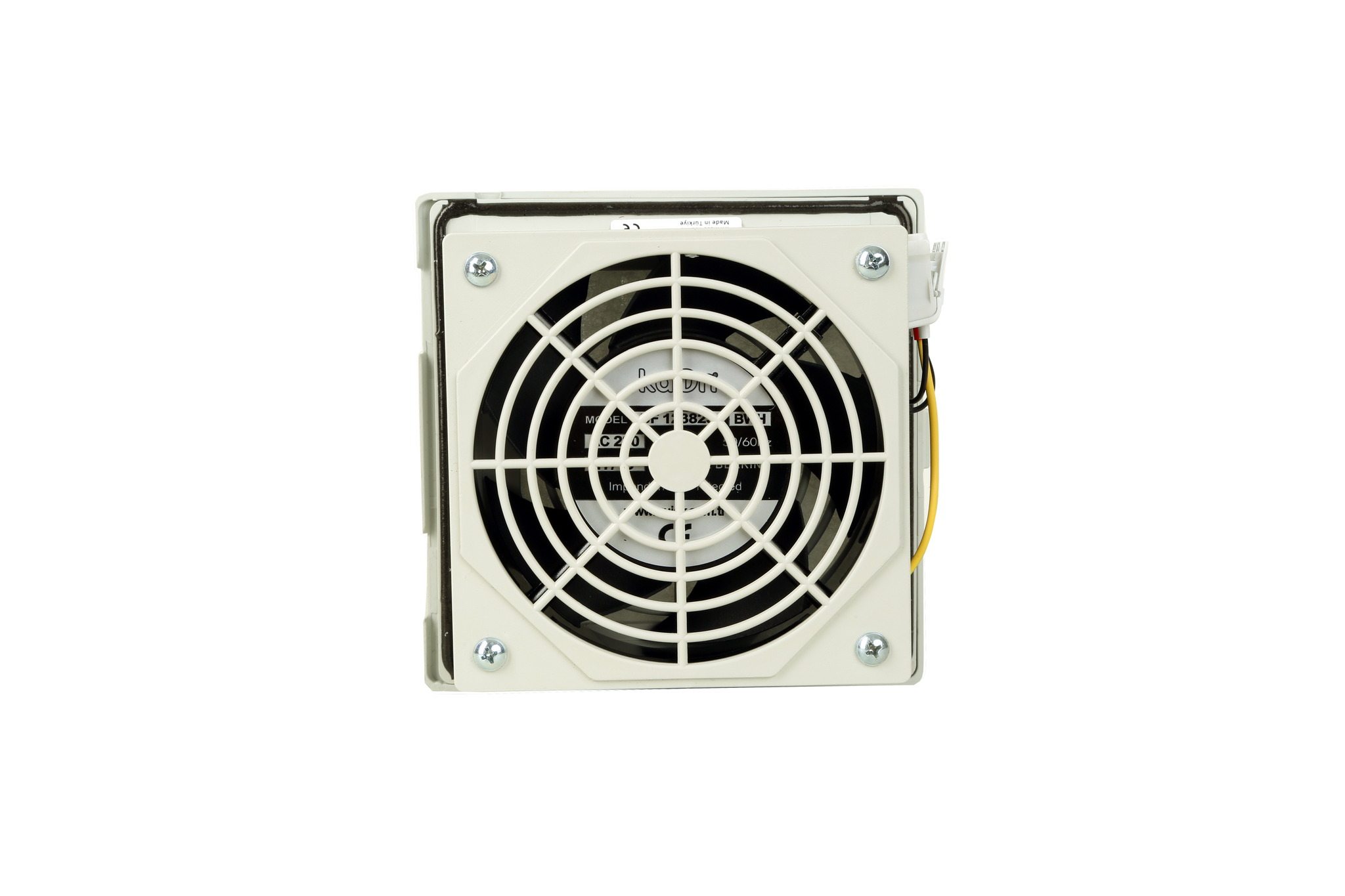

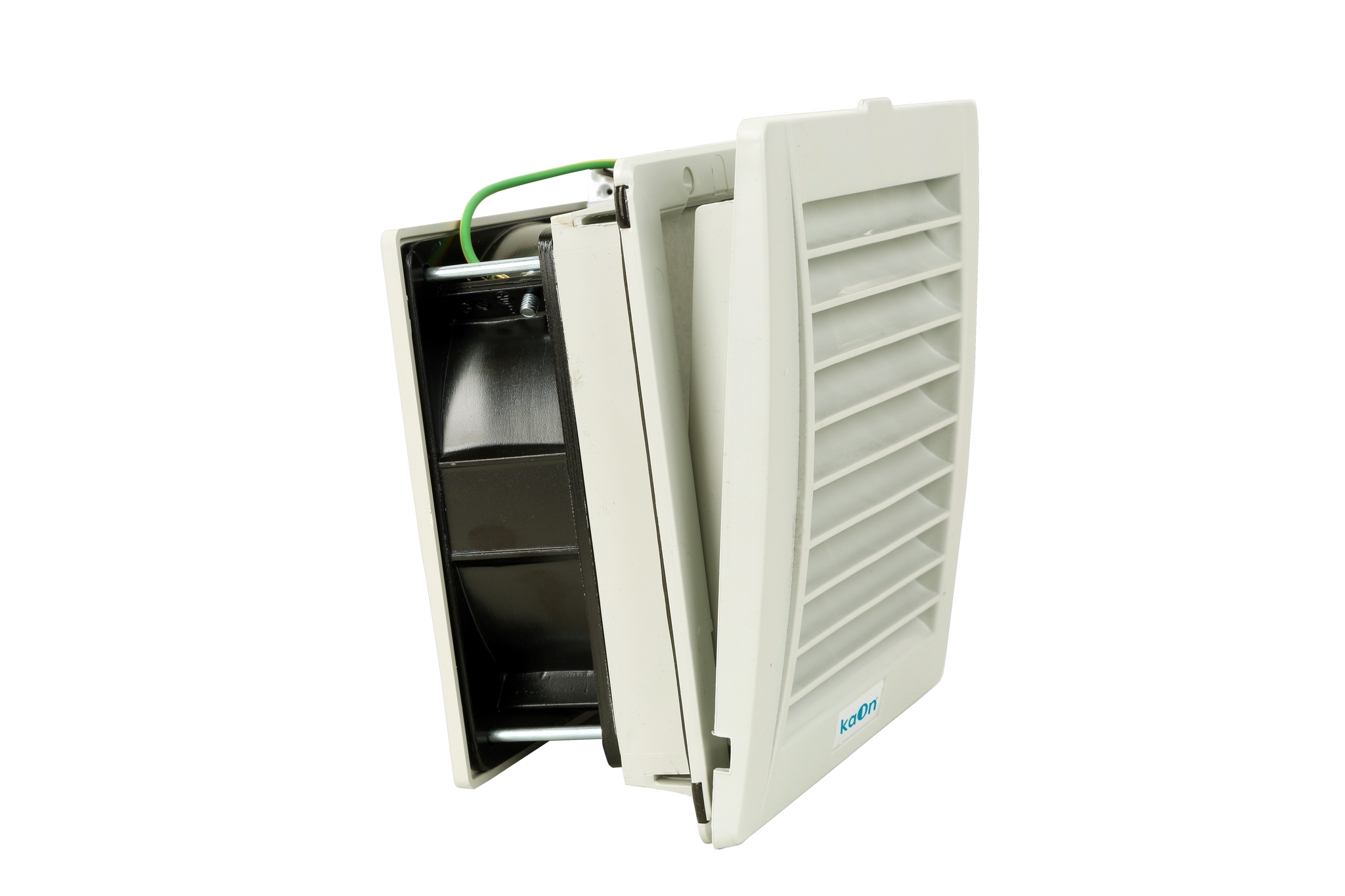

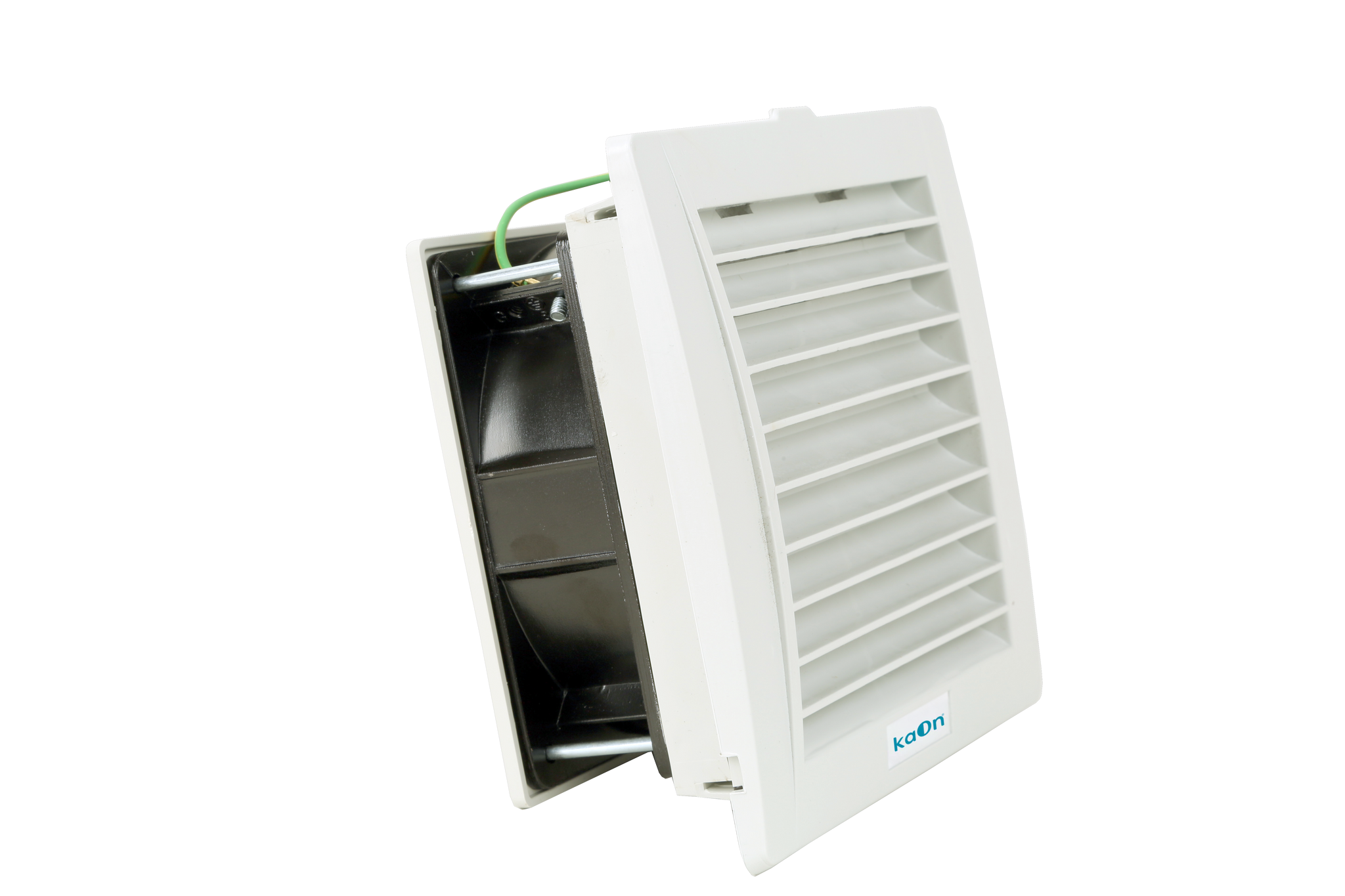

Control Panel Ventilation Fan With Filter
Onka manufacture Halogen Free ventilation products. Help to avoid build up of heat and moisture inside your electrical control panels and enclosures.
The required cutout size is 125mm x 125mm.
The overall dimensions are 155mm x 162mm x 81mm.
Supplied with a convenient wiring terminal which accepts cable up to 2.5mm2. Features built in thermal protection. Use in conjunction with DIN rail mounted cooling thermostats.
Specifications
Airfow rate without filter m³ / h 156
Airfow rate with filter m³ / h 108
Rated Voltage Hz 50-60 Hz
Power Consumption 15-17W
Nominal Current 0.8A
Operating Temperature -10 +70°C
Overcurrent Protection Thermal
