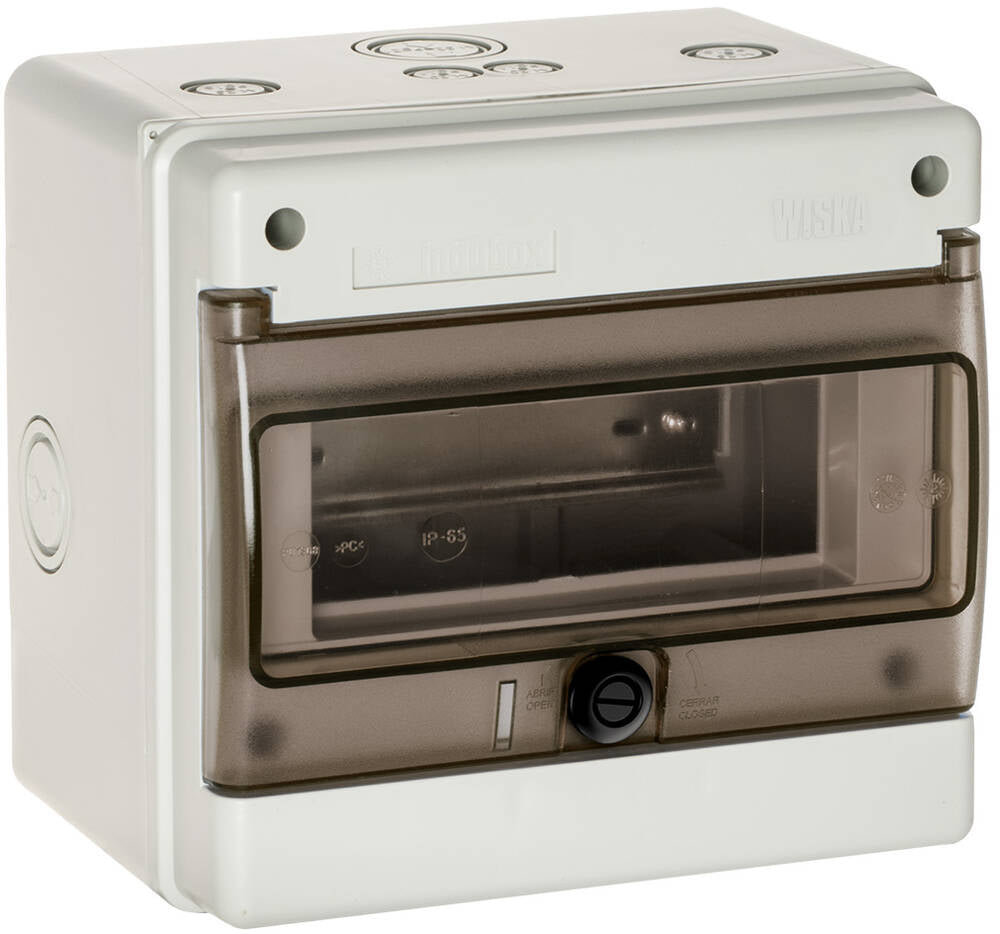

Increased depth consumer unit style enclosure with window. Made from Polycarbonate which is easy to cut and drill. A great choice for rapid installation.
Greater versatility for mounting of components including temperature controllers, metering devices and other rail mounted modules.
Mounting Examples:

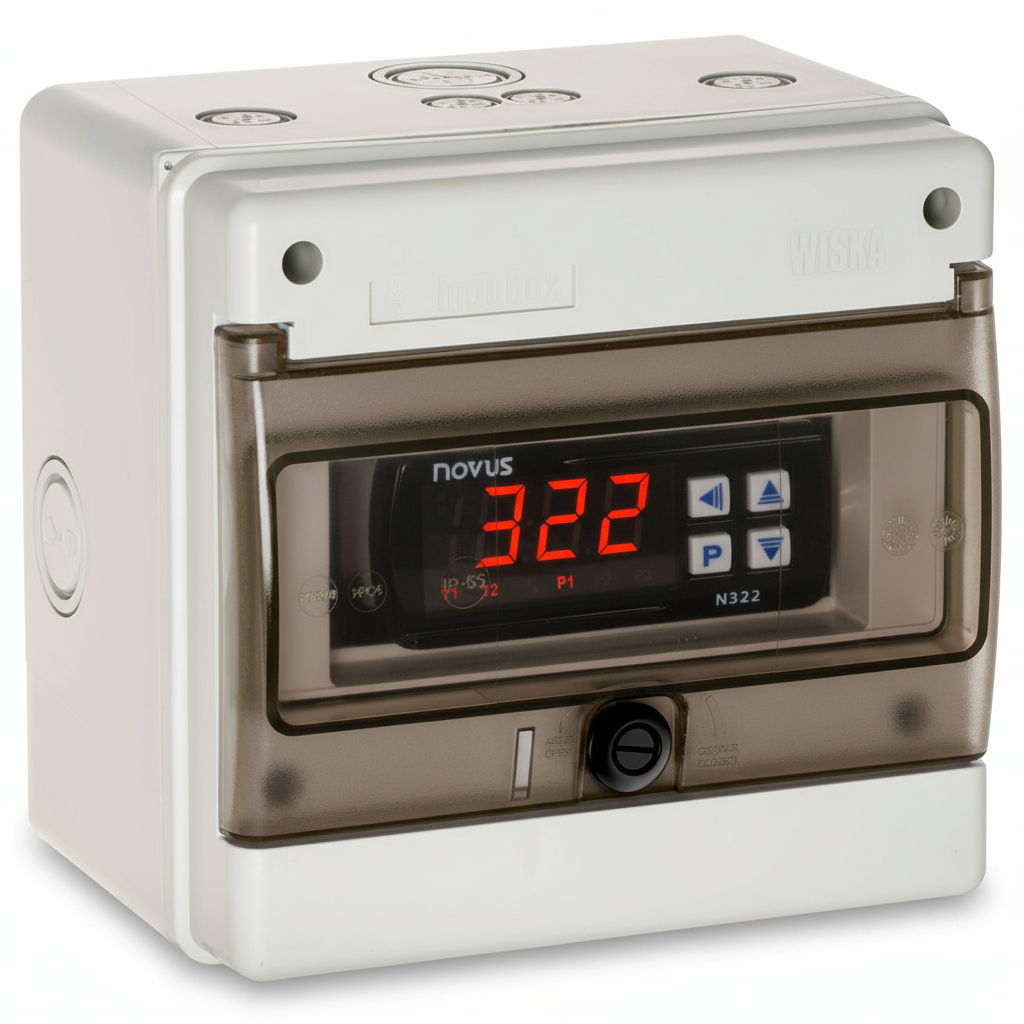

- We have successfully fitted our Novus N321 and N322 range of digital thermostats including the Solar versions
- It is also suitable for use with our N1540 digital panel meters and deeper PID temperature controllers such as the N1050
- Multiple devices can be mounted inside this 8 module enclosure i.e. side by side (subject to product dimensions)
Comes complete with blanks to close off unused ways. Includes multiple glanding/entry points with knockouts.
| Protection class | IP65 |
| Glow wire test | 650 °C |
| Temp. range min | -5 °C |
| Temp. range max | 85 °C |
| Material | Thermoplastic, Polycarbonate |
| Product Color | RAL 7035 |
| External dimensions LxWxH | 215x200x160mm |
| No. Elements | 8 |
| Type | 1308 AR/W |
| WISKA-Order no. | 10104675 |
